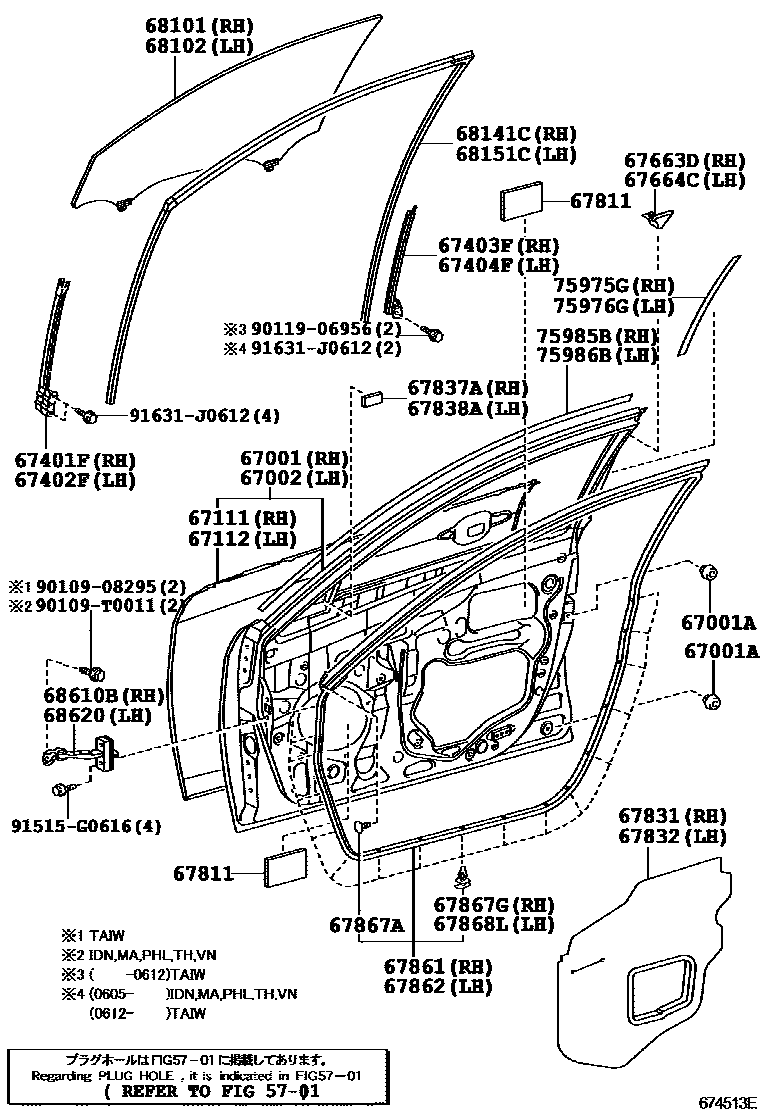

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67001-06120iACV4#,GSV40..TAIW200605-200903

67001ACUSHION, FRONT DOOR PANEL

main90541-09117×4iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67002-06120iACV4#,GSV40..TAIW200605-200903

67111PANEL, FRONT DOOR, OUTER RH

main67111-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67111-06070iACV41..20G..TAIW200605-200709

67112PANEL, FRONT DOOR, OUTER LH

main67112-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67112-06070iACV4#,GSV40..TAIW200903

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06060iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67401-06070iACV41..20G..TAIW200605-200709

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67402-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67403-06050iACV41..20G..TAIW200605-200709

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06040iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67404-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

67663DGARNISH, DOOR FRAME, RH

main67663-06020iACV40,GSV40..VN200608-200909

main67663-06030iACV4#,GSV40..TAIW200903

67664CGARNISH, DOOR FRAME, LH

main67664-06020iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67664-06030iACV41..20G..TAIW200605-200709

67811PAD, FRONT DOOR SILENCER

main67811-33040×4iACV41..20G..TAIW200605-200709

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67831-06080iACV41..20G..TAIW200605-200709

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06070iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

main67832-06080iACV41..20G..TAIW200605-200709

67837ASEAL, FRONT DOOR VENT, RH

main67837-51010iACV41..20G..TAIW200605-200709

67838ASEAL, FRONT DOOR VENT, LH

main67837-51010iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67861-06060iACV4#,GSV40..TAIW200903

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main67862-06060iACV41..20G..TAIW200605-200709

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150×17iACV41..20G..TAIW200605-200709

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×17iACV41..20G..TAIW200605-200709

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06090iACV4#,GSV40..PHL,TH200608-200907

*TEM,T=5.0,GREEN

main68101-06110iACV4#,GSV40..IDN,MA,VN200608-200810

*TEM,T=5.0,GREEN

main68101-06111iACV4#,GSV40..IDN,MA,VN200907

*TEM,T=5.0,GREEN

main68101-06120iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

*TEM,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06090iACV4#,GSV40..PHL,TH200608-200907

*TEM,T=5.0,GREEN

main68102-06110iACV4#,GSV40..IDN,MA,VN200608-200810

*TEM,T=5.0,GREEN

main68102-06111iACV4#,GSV40..IDN,MA,VN200907

*TEM,T=5.0,GREEN

main68102-06120iACV4#,GSV40..TAIW200903

*TEM,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68141-06060iACV41..20G..TAIW200605-200709

68151CRUN, FRONT DOOR GLASS, LH

main68151-06040iACV40,GSV40..VN200608-200909

main68151-06050iACV4#,GSV40..TAIW200903

68610BCHECK ASSY, FRONT DOOR, RH

main68610-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68610-06060iACV41..20G..TAIW200605-200709

68620CHECK ASSY, FRONT DOOR, LH

main68620-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main68620-06060iACV41..20G..TAIW200605-200709

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-06020iACV41..20G..TAIW200605-200709

main75975-06021iACV4#,GSV40..TAIW200903

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-06020iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main75976-06021iACV4#,GSV40..TAIW200903

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-06020iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

main75985-06021iACV4#,GSV40..TAIW200903

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-06020iACV41..20G..TAIW200605-200709

main75986-06021iACV4#,GSV40..TAIW200903

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906956

main90119-06956

91515G0616

main91515-G0616

91631J0612

main91631-J0612

36 parts on this diagram · 2 diagrams in section
