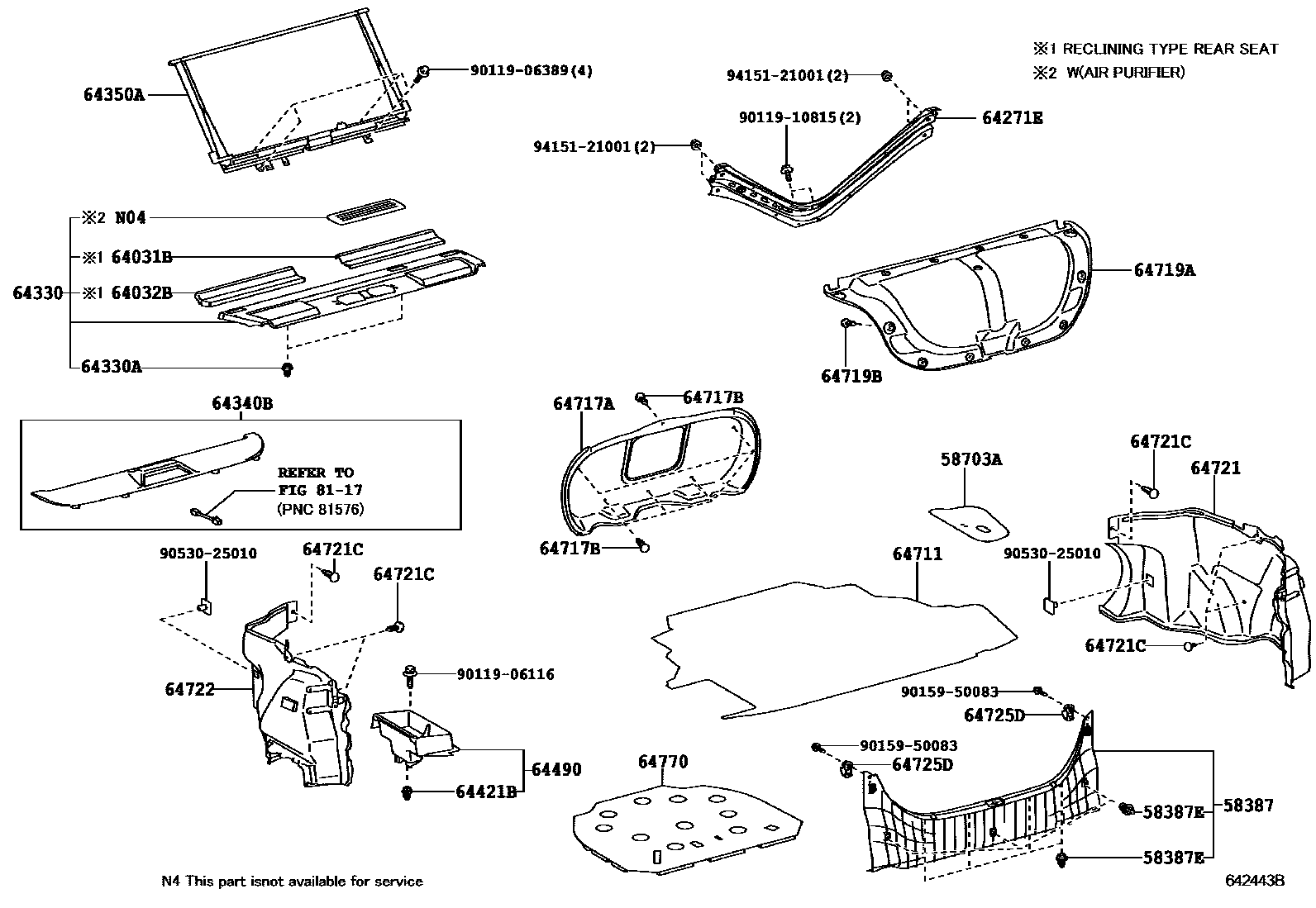

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1W/O(SUN SHADE) 0003 1 0005 1 0007 1 0008 1W/O(SUN SHADE)

58387PLATE, REAR FLOOR FINISH

main58387-06080iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

main58387-06090iACV4#,GSV40..TAIW200605-200903

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iACV4#,GSV40..TAIW200605-200903

main90467-T0021iACV40,GSV40..VN200608-200909

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-06080iACV41..20G..TAIW200605-200903

main58703-06090iACV40,GSV40..VN200608-200909

64031BCOVER SUB-ASSY, TONNEAU SIDE, RH

main64031-06030-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

main64031-06030-E0iACV40..24V..PHL200608-200909

GREGE,TRIM4#

main64031-06040-C0iGSV40..35Q..TAIW200605-200903

BLACK,TRIM2#

main64031-06040-E0iGSV40..35Q..TAIW200605-200903

GREGE,TRIM4#

64032BCOVER SUB-ASSY, TONNEAU SIDE, LH

main64032-06030-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

main64032-06030-E0iACV40..24V..PHL200608-200909

GREGE,TRIM4#

main64032-06040-C0iGSV40..35Q..TAIW200605-200903

BLACK,TRIM2#

main64032-06040-E0iGSV40..35Q..TAIW200605-200903

GREGE,TRIM4#

64271EPANEL, ROOM PARTITION

main64241-06030iACV41..20G..TAIW200605-200903

main64241-06040iACV40,GSV40..VN200608-200909

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-06280-C1iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

main64330-06280-E2iACV40..24V..PHL200608-200907

GREGE,TRIM4#

main64330-06290-E3iACV4#..(20,24V)..TH200608-200907

GREGE,TRIM4#

sub64330-06590

main64330-06290-E3iACV41..MA;ACV40..IDN200608-200907

SUN SHADE-WITHOUT,GREGE,TRIM4#

sub64330-06590

main64330-06300-E2iACV4#..(20,24V)..(MA,TH)200608-200907

GREGE,TRIM4#

main64330-06310-E3iACV40..(24E,24G)..(PHL,TH,VN)200608-200909

GREGE,TRIM4#

sub64330-06600

main64330-06330-C2iACV4#..TAIW200605-200903

BLACK,TRIM2#

main64330-06330-E3iACV4#..TAIW200605-200903

GREGE,TRIM4#

main64330-06340-C2iGSV40..35V200605-200903

BLACK,TRIM2#

main64330-06340-E3iGSV40..35V200605-200903

GREGE,TRIM4#

main64330-06350-C2iGSV40..35Q..TAIW200605-200903

BLACK,TRIM2#

main64330-06350-E3iGSV40..35Q..TAIW200605-200903

GREGE,TRIM4#

main64330-06490-C0iAHV40201010

BLACK,TRIM2#

main64330-06490-E1iAHV40200907

GREGE,TRIM4#

main64330-06590-E0iACV41..MA;ACV40..IDN200907

GREGE,TRIM4#

main64330-06590-E0iACV41..MA;ACV40..IDN200907

SUN SHADE-WITHOUT,GREGE,TRIM4#

main64330-06600-E0iACV40..24G..(PHL,VN)200907

GREGE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iACV41..20G..TAIW200605-200903

main90467-T0021iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-06070-C1iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#

sub64340-06150

main64340-06070-E2iACV4#..(20,24V)..(MA,PHL,TH)200608-200907

GREGE,TRIM4#

sub64340-06150

main64340-06080-C2iGSV40..TAIW200605-200903

BLACK,TRIM2#

main64340-06080-C2iGSV40..TAIW200903

TW 2.4G P PACKAGE,BLACK,TRIM2#

main64340-06080-E3iACV40..24G..TAIW200903

TW 2.4G P PACKAGE,GREGE,TRIM4#

main64340-06080-E3iGSV40..TAIW200605-200903

GREGE,TRIM4#

main64340-06150-C0iGSV40..IDN,PHL,TH,VN200907-201010

BLACK,TRIM2#

main64340-06150-E0iACV40..24V..PHL;ACV4#..(20,24G,24V)..(MA,TH)200907-201010

GREGE,TRIM4#

64350ASHADE ASSY, REAR WINDOW

main64350-06040iACV40..24G..(PHL,VN)200608-200909

main64350-06090iGSV40..VN200605-200909

main64350-06090iACV40..24V..PHL;ACV40..(24G,24V)..(MA,TH);ACV41,AHV40,GSV40..20,35Q,35V,HBD200903

TW 2.4G P PACKAGE

64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)

main90467-10161iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main90467-T0021iACV40,GSV40..VN200608-200909

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main64490-06060iACV41..20G..TAIW200605-200903

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-06110-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM4#

main64711-06110-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#,4#

main64711-06110-C0iGSV40..IDN,PHL,TH,VN200907

BLACK,TRIM2#

main64711-06120-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#,4#

main64711-06210-C0iAHV40200907

BLACK,TRIM2#,4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-06080-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#,4#

main64717-06080-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM4#

main64717-06080-C0iACV4#..IDN,MA,PHL,TH,VN200907

BLACK,TRIM2#

main64717-06090-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#,4#

main64717-06140-C0iAHV40200907

BLACK,TRIM2#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0iACV4#,GSV40200605-200909

BLACK

sub90467-08186

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-06090-C0iACV4#..IDN,MA,PHL,TH,VN200608-200909

BLACK,TRIM2#,4#

main64719-06090-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM4#

main64719-06090-C0iGSV40..IDN,PHL,TH,VN200907

BLACK,TRIM2#

main64719-06100-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200605-200909

BLACK

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-06100-C0iACV4#..IDN,MA,PHL,TH,VN200608-200909

BLACK,TRIM2#,4#

main64721-06100-C0iACV4#..IDN,MA,PHL,TH,VN200608-200909

BLACK,TRIM4#

main64721-06100-C0iGSV40..IDN,PHL,TH,VN200907

BLACK,TRIM2#

main64721-06110-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#,4#

main64721-06180-C0iAHV40200907

BLACK,TRIM2#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iACV4#,GSV40200605-200909

BLACK

sub90467-08186

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-06110-C0iACV4#..IDN,MA,PHL,TH,VN200907

BLACK,TRIM2#

main64722-06110-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM2#,4#

main64722-06110-C0iGSV40..IDN,PHL,TH,VN200608-200909

BLACK,TRIM4#

main64722-06120-C0iACV4#,GSV40..TAIW200605-200903

BLACK,TRIM2#,4#

main64722-06180-C0iAHV40200907

BLACK,TRIM2#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-06020iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200605-200909

64770COVER ASSY, SPARE WHEEL

main64770-06120iAHV40200907

main64770-06180iACV4#,GSV40..TAIW200605-200903

main64770-06190iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

8117

9011906116

main90119-06116

9011906389

main90119-06389

9011910815

main90119-10815

9015950083

main90159-50083

9053025010

main90530-25010

9415121001

main94151-21001

29 parts on this diagram · 6 diagrams in section
