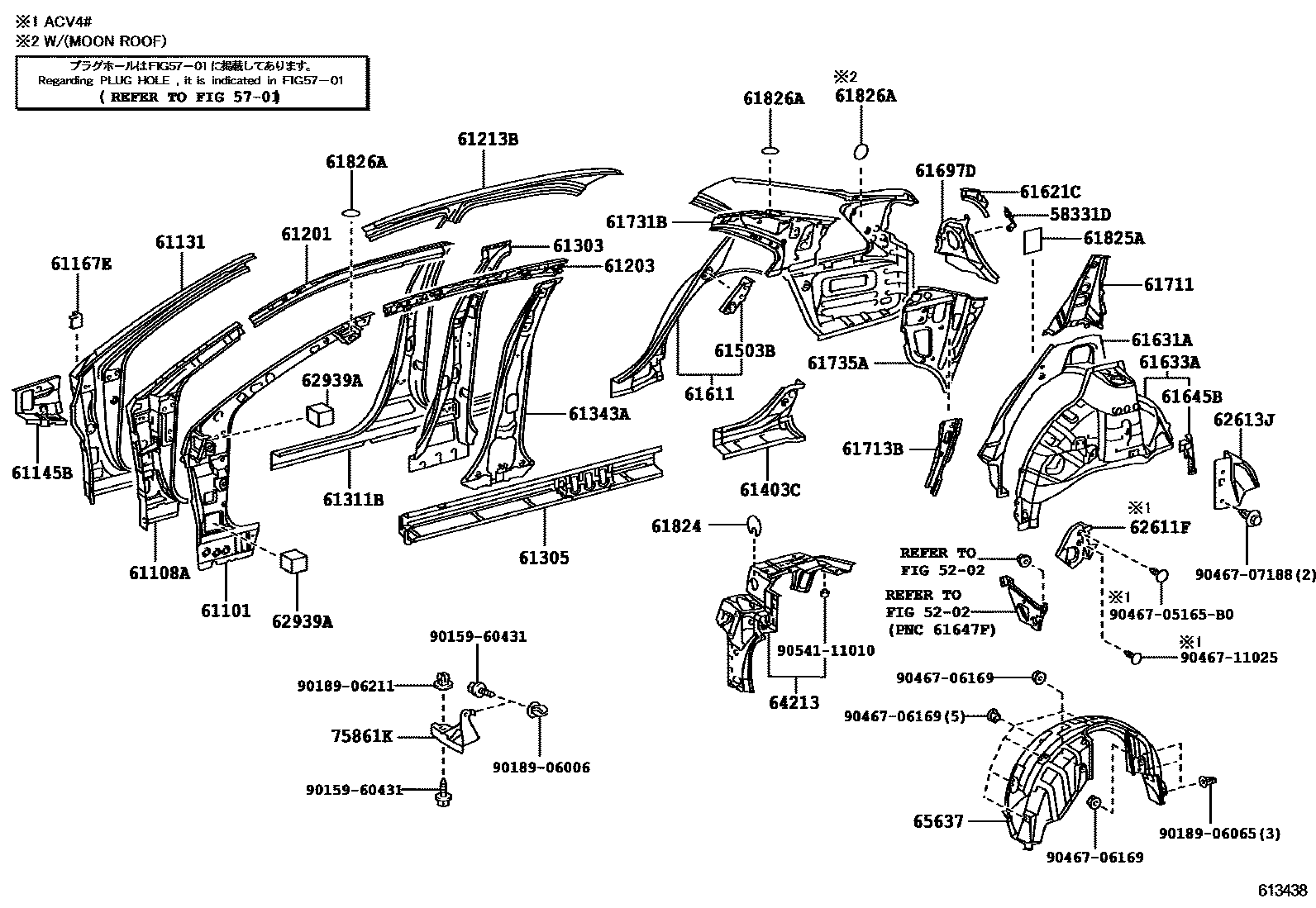

SIDE MEMBER

0001 1RH 0002 1RH 0003 1LH 0004 1LH

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5701HOLE PLUG

→ Go to FIG 57-01

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-06020iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-06090iACV4#,GSV40..TAIW200605-200903

main61101-06100iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-06060iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61108-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-06070iACV41..20G..TAIW200605-200709

main61131-06080iACV40,GSV40..VN200608-200909

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61145-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61167EBRACKET, NO.6 PILLAR OUTER

main61168-44010iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-06020iACV4#,GSV40..TAIW200903

main61201-06030iACV40,GSV40..VN200608-200909

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-06080iACV4#,GSV40..TAIW200605-200903

main61203-06090iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-06050iACV41..20G..TAIW200605-200709

main61213-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-06030iACV41..20G..TAIW200605-200709

main61303-06040iACV40,GSV40..VN200608-200909

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61305-06050iACV40,GSV40..VN200608-200909

61311BPILLAR, CENTER BODY, OUTER RH

main61311-06040iACV4#,GSV40..TAIW200903

main61311-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61343APILLAR, CENTER BODY, INNER RH

main61307-06040iACV4#,GSV40..TAIW200605-200903

main61307-06050iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-06030iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61403-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-06060iACV4#,GSV40..TAIW200903

main61503-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61611PANEL, QUARTER, RH

main61601-06140iACV41..20G..TAIW200605-200709

main61601-06150iACV40,GSV40..VN200608-200909

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61621-06908iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61631-06901iACV40,GSV40..VN200608-200909

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-06901iACV4#,GSV40..TAIW200903

main61633-06902iACV40,GSV40..VN200608-200909

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-06050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main61645-06060iACV40,GSV40..VN200608-200909

main61645-33030iACV4#,AHV40,GSV40201112-201206

(J)

61697DHOUSING, QUARTER PANEL END, RH

main61697-06070iACV41..20G..TAIW200605-200709

61711PANEL, ROOF SIDE, OUTER RH

main61711-06060iACV41..20G..TAIW200605-200709

main61711-06070iACV40,GSV40..VN200608-200909

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-06050iACV41..20G..TAIW200605-200709

61731BPANEL, ROOF SIDE, INNER RH

main61731-06090iACV41..20G..TAIW200605-200709

main61731-06100iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-06060iACV41..20G..TAIW200605-200709

main61735-06061iACV4#,GSV40..TAIW201008

61824PLATE, NOISE CONTROL, NO.1

main61824-33020×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

61825APLATE, NOISE CONTROL, NO.2

main61825-30020×2iACV41..20G..TAIW200605-200709

61826APLATE, NOISE CONTROL, NO.3

main61824-12050×4iACV4#,GSV40..(20E,24E,24G,35V)..TAIW; GSV40..35Q..TAIW; GSV40..35V200605-200903

TW 3.5V HI PACKAGE

62611FINSULATOR, QUARTER WHEEL HOUSE, RH

main62611-06040iACV4#..(20E,24E,24G)..TAIW200605-200903

main62611-06060iACV4#..IDN,MA,PHL,TH200608-200907

62613JINSURATOR, QUARTER WHEEL HOUSE, NO.2 RH

main62613-06010iACV4#,GSV40..TAIW200903

main62613-06030iACV4#,GSV40..IDN,MA,PHL,TH,VN200907

62939ASILENCER, QUARTER VENT

main62939-32030×4iACV41..20G..TAIW200605-200709

64213EXTENSION, PACKAGE TRAY STRAINER, RH

main64201-06080iACV41..20G..TAIW200605-200709

main64201-06090iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

65637LINER, REAR WHEEL HOUSE, RH

main65637-06020iACV41..20G..TAIW200605-200709

main65637-06030iACV40,GSV40..VN200608-200909

75861KPROTECTOR, ROCKER PANEL MOULDING, RH

main75861-06030iACV41..20G..TAIW200605-200709

main75861-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

9015960431

main90159-60431

9018906006

main90189-06006

9018906065

main90189-06065

9018906211

main90189-06211

9046705165B0

main90467-05165B0

9046706169

main90467-06169

9046707188

main90467-07188

9046711025

main90467-11025

9054111010

main90541-11010

45 parts on this diagram · 4 diagrams in section
