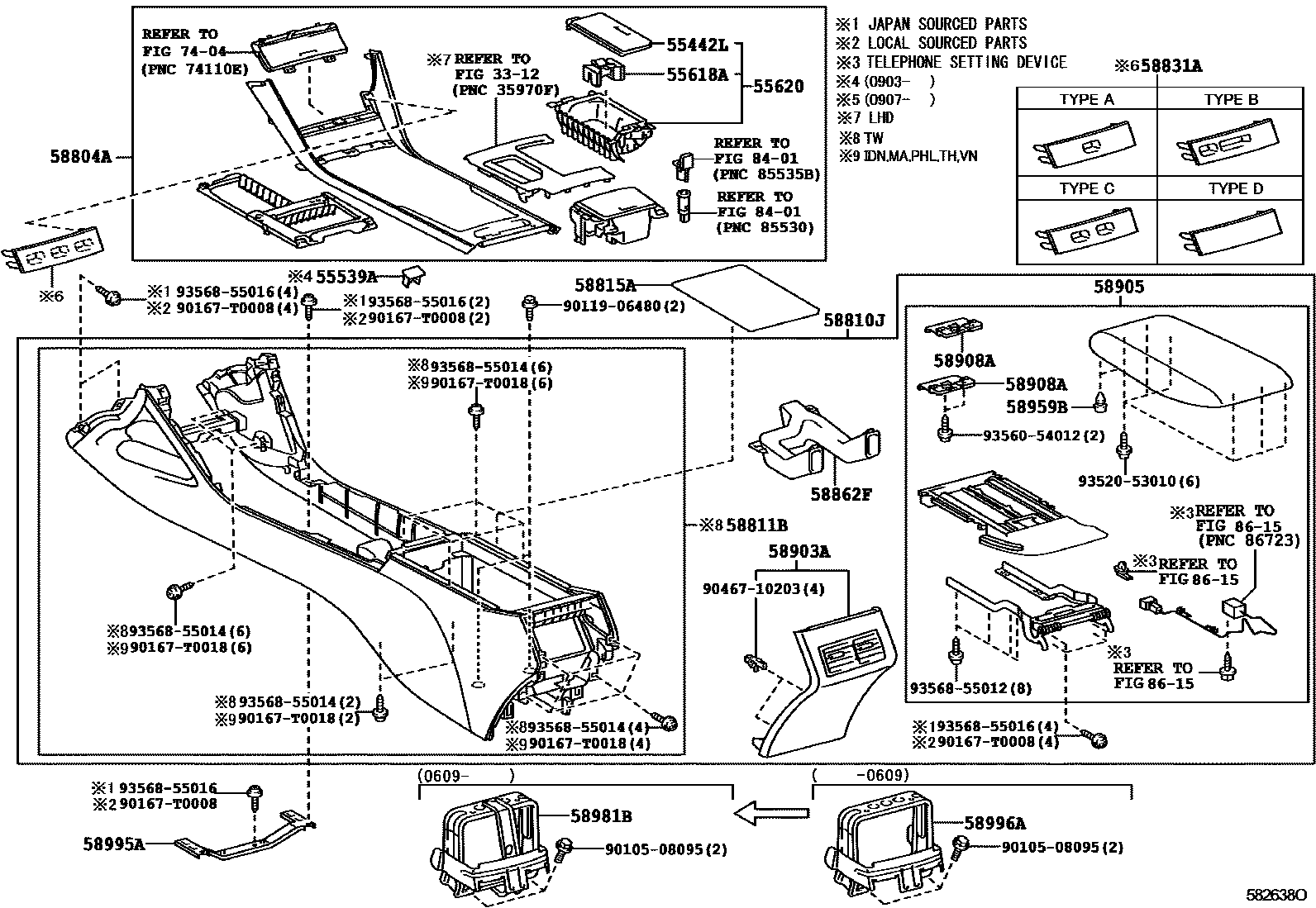

CONSOLE BOX & BRACKET

55442LDOOR, INSTRUMENT PANEL

main55442-06080iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main55442-06090iACV40..24G..PHL200907

main55442-06100iACV41,AHV40..RHD200907

main55442-06110iACV40..24G..IDN200907

main55442-06220iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE

55539ACOVER, SPARE SWITCH HOLE

main55539-0D090-C0iAHV40,GSV40..TH200907

TW 2.4G HI PACKAGE,BLACK,(L)

main55539-52060-C0iAHV40200907

BLACK,(J)

55618AHOLDER, CONSOLE BOX CUP

main55618-06070iACV4#,GSV40..LHD200903

main55618-06080iACV40..24G..IDN;ACV41,AHV40..RHD200907

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-06120iACV41..20G..TAIW200605-200709

main55620-06130iACV40..24G..PHL200907

main55620-06140iACV40..24G..TH;ACV4#,GSV40..RHD..(20,20E,20G,24V,35Q)200608-200907

main55620-06150iACV40..24E..TH;ACV40..24G..IDN200608-200907

main55620-06260iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-06080-C3iGSV40..PHL200605-200907

BLACK,TRIM2#

main58804-06080-E3iACV40..VN200605-200909

ASH BROWN,TRIM4#

main58804-06081-C3iGSV40..LHD;ACV40..TAIW200903

BLACK,TRIM2#

main58804-06081-E3iGSV40..TAIW;ACV40..TAIW,VN;ACV40..24V..PHL200903

ASH BROWN,TRIM4#

main58804-06090-E2iACV40..24G..PHL200608-200907

ASH BROWN,TRIM4#

main58804-06091-E2iACV40..24G..PHL200907

ASH BROWN,TRIM4#

main58804-06100-C2iGSV40..RHD200608-200907

BLACK,TRIM2#

main58804-06100-E3iACV40..24G..TH;ACV40..RHD..24V200608-200907

ASH BROWN,TRIM4#

main58804-06101-C2iGSV40..RHD200907

BLACK,TRIM2#

main58804-06101-E3iACV40..24G..TH;ACV40..RHD..24V200907

ASH BROWN,TRIM4#

main58804-06110-E2iACV40..24E..TH;ACV40..24G..IDN200608-200907

ASH BROWN,TRIM4#

main58804-06111-E2iACV40..24G..IDN200907

ASH BROWN,TRIM4#

main58804-06170-C2iACV41..20E..TAIW200605-200903

BLACK,TRIM2#

main58804-06170-E2iACV41..20G..TAIW200605-200709

ASH BROWN,TRIM4#

main58804-06180-E2iACV41..RHD200608-200907

ASH BROWN,TRIM4#

main58804-06181-E2iACV41..RHD200907

ASH BROWN,TRIM4#

main58804-06280-C0iAHV40201010

BLACK,TRIM2#

main58804-06280-E0iAHV40200907

ASH BROWN,TRIM4#

main58804-06340-C0iACV41..TAIW200903

BLACK,TRIM2#

main58804-06340-E0iACV41..TAIW200903

ASH BROWN,TRIM4#

main58804-06220-C0iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE,BLACK,TRIM2#

main58804-06221-C0iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE,BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-06050-C0iACV4#..(20E,24E)..TAIW200903

BLACK,TRIM2#

main58810-06050-E0supersedes 58810-06180-E0iACV41..20E..TAIW200605-200903

GREGE,TRIM4#

main58810-06060-E0iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

GREGE,TRIM4#

main58810-06110-C0iGSV40..35V200903

TELEPHONE SETTING DEVICE-WITHOUT,BLACK,TRIM2#

main58810-06110-E0iGSV40..35V200903

TELEPHONE SETTING DEVICE-WITHOUT,ASH BROWN,TRIM4#

main58810-06120-C0iACV40,GSV40..(24G,35V)..TAIW200903

BLACK,TRIM2#

main58810-06120-E0iACV41..20G..TAIW200605-200709

ASH BROWN,TRIM4#

main58810-06130-C0iGSV40..TH200608-200907

BLACK,TRIM2#

main58810-06130-E0iACV4#..(20G,24G,24V)..(MA,TH)200608-200907

ASH BROWN,TRIM4#

main58810-06140-C0iGSV40..IDN200608-200907

BLACK,TRIM2#

main58810-06140-E0iACV40..24V..TH200608-200907

TELEPHONE SETTING DEVICE-WITH(ACCESSORY),ASH BROWN,TRIM4#

main58810-06150-E0iACV40..VN200611-200909

ASH BROWN,TRIM4#

main58810-06160-C0iGSV40..PHL200608-200907

BLACK,TRIM2#

main58810-06160-E0iACV40..PHL200608-200907

ASH BROWN,TRIM4#

main58810-06190-E0iACV41..TH200907

ASH BROWN,TRIM4#

main58810-06200-C0iAHV40,GSV40..TH200907

BLACK,TRIM2#

main58810-06200-E0iACV41..TH200907

TELEPHONE SETTING DEVICE-WITHOUT,ASH BROWN,TRIM4#

main58810-06210-C0iGSV40..IDN200907

BLACK,TRIM2#

main58810-06210-E0iACV40..24V..IDN;ACV4#..(20,24G)..TH200907

ASH BROWN,TRIM4#

main58810-06220-E0iACV40..VN200909

ASH BROWN,TRIM4#

main58810-06230-C0iGSV40..PHL,VN200907

BLACK,TRIM2#

main58810-06230-E0iACV40..PHL200907

ASH BROWN,TRIM4#

58811BBOX, CONSOLE

main58810-06490-C0iACV4#,GSV40..TAIW200903

BLACK,TRIM2#

main58810-06490-E0iACV4#,GSV40..TAIW200903

ASH BROWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-06060iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main58815-06070iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-06250iAHV40,GSV40..(35Q,HBD)..(TAIW,TH)200903

TYPE B:REFER ILLUST.

main58831-06250-E0iGSV40..35Q200605-200607

BROWN,TRIM2#,4#,TYPE B:REFER ILLUST.

main58831-06260iACV41,GSV40..(20E,35V)..TAIW200607-200903

TYPE A:REFER ILLUST.

main58831-06260-E0iACV41,GSV40..20E,20G,35V200605-200607

BROWN,TRIM2#,4#,TYPE A:REFER ILLUST.

main58831-06270iACV40..24V..TH200907

SUN SHADE-WITHOUT,TYPE D:REFER ILLUST.

main58831-06270-E0iACV40..24G..TH;ACV40..24V..IDN200608-200610

BROWN,TRIM4#,TYPE D:REFER ILLUST.

main58831-06350supersedes 58831-06280iACV41..TH200610-200907

SINGAPORE OR BRUNEI SPEC,TYPE A:REFER ILLUST.

main58831-06350-E0supersedes 58831-06280-E0iACV41..TH200608-200610

BROWN,TRIM2#,4#,TYPE A:REFER ILLUST.

main58831-06360iACV40..24G..(IDN,PHL)200907

TYPE D:REFER ILLUST.

main58831-06360-E0iACV40..24E;ACV40..24G..(IDN,PHL)200608-200610

BROWN,TRIM4#,TYPE D:REFER ILLUST.

main58831-06440iACV40..TAIW200709-200903

TYPE B:REFER ILLUST.

main58831-06430iACV40..24E..TAIW200709-200903

TW 2.4E SE PACKAGE,TYPE D:REFER ILLUST.

58862FDUCT, CONSOLE BOX, NO.2

main58862-06070iACV4#,GSV40..LHD200903

main58862-06080iACV4#,AHV40,GSV40..RHD200907

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06070-C0iGSV40..VN200608-200909

BLACK,TRIM2#

main58903-06070-E0iACV40..24G..(PHL,TH);ACV4#,AHV40..20,20G,24V,HBD200907

ASH BROWN,TRIM4#

main58903-06080-C0iACV40,GSV40..(24G,35Q,35V)..TAIW200903

BLACK,TRIM2#

main58903-06080-E0iACV40,GSV40..(24G,35Q,35V)..TAIW200903

ASH BROWN,TRIM4#

main58903-06100-E0iACV40..24G..IDN;ACV4#..RHD..(20E,24E)200608-200907

ASH BROWN,TRIM4#

main58903-06120-C0iACV4#..(20E,24E)..TAIW200903

BLACK,TRIM2#

main58903-06120-E0iACV4#..(20E,24E)..TAIW200903

ASH BROWN,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06240-C0iGSV40..35V200903

TELEPHONE SETTING DEVICE-WITHOUT,BLACK,TRIM2#

main58905-06240-E1iGSV40..35V200903

TELEPHONE SETTING DEVICE-WITHOUT,ASH BROWN,TRIM4#

main58905-06260-C0iAHV40,GSV40..PHL,TH,VN200907

BLACK,TRIM2#

main58905-06260-E1iACV41..TH200907

TELEPHONE SETTING DEVICE-WITHOUT,ASH BROWN,TRIM4#

main58905-06320-C0iACV41..20G..TAIW200605-200709

BLACK,TRIM2#

main58905-06320-E0iACV40,GSV40..(24E,24G,35V)..TAIW200605-200903

ASH BROWN,TRIM4#

main58905-06330-C0iGSV40..IDN200608-200907

BLACK,TRIM2#

main58905-06330-E0iACV40..24V..TH200608-200907

TELEPHONE SETTING DEVICE-WITH(ACCESSORY),ASH BROWN,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-33010×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

58981BRETAINER, CONSOLE MOUNTING, NO.1

main58981-06010iACV4#,GSV40..TAIW200903

main58981-06020iACV40,GSV40..VN200609-200909

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06080iACV40,GSV40..PHL200605-200907

main58995-06090iACV4#,AHV40,GSV40..RHD200907

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-06040iACV41,GSV40..TAIW200605-200609

sub58996-06041

main58996-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200609

sub58996-06051

7404

8615

9010508095

main90105-08095

9011906480

main90119-06480

90167T0008

main90167-T0008

90167T0018

main90167-T0018

9046710203

main90467-10203

9352053010

main93520-53010

9356054012

main93560-54012

9356855012

main93568-55012

9356855014

main93568-55014

9356855016

main93568-55016

29 parts on this diagram · 1 diagram in section
