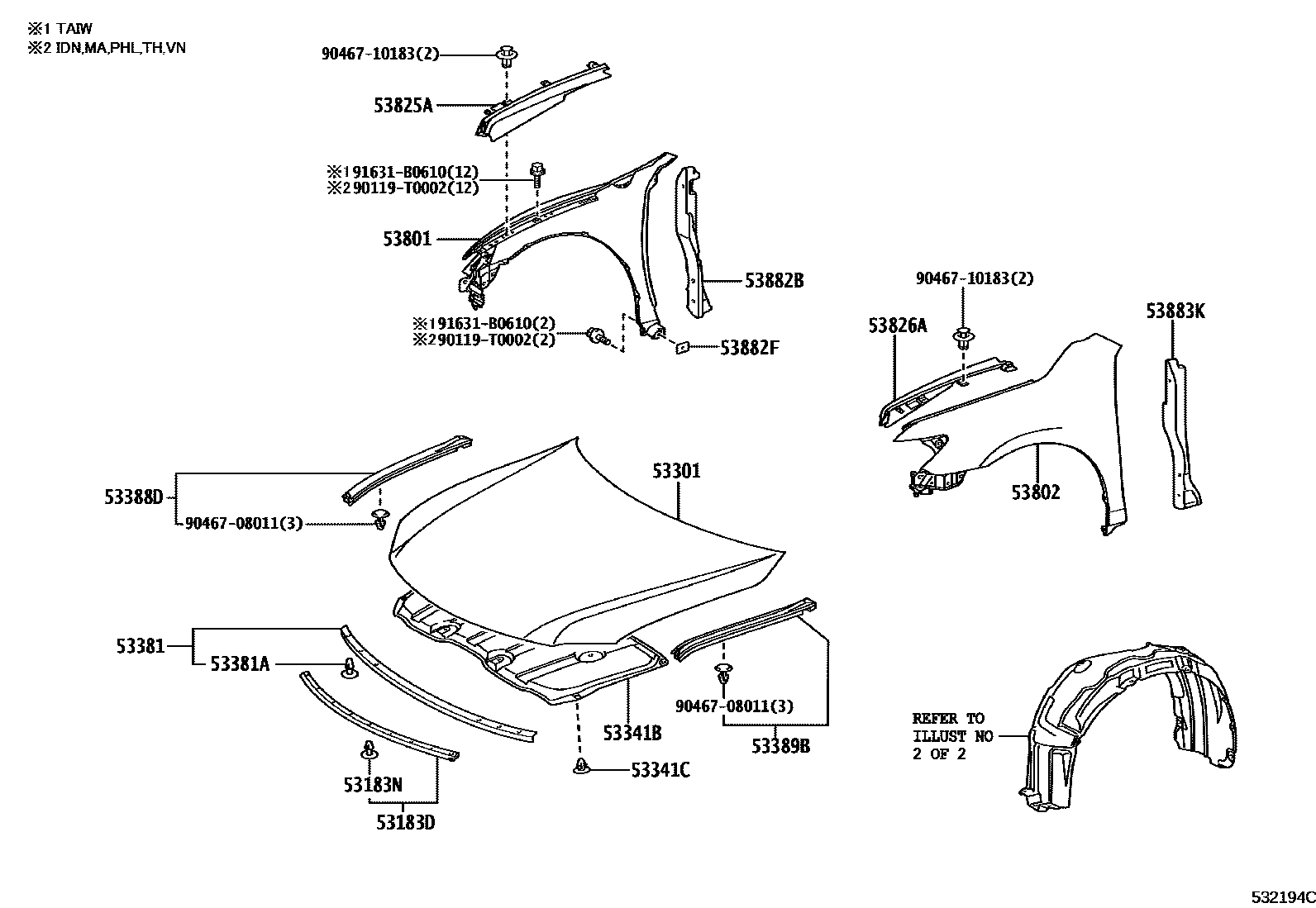

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main53183-06050iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

main53183-06080iACV4#,GSV40..TAIW200903

main53183-06090iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200907

53183NCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iACV41..20G..TAIW200605-200909

53301HOOD SUB-ASSY

main53301-06100iACV4#,GSV40..TAIW200605-200903

main53301-06110iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

53341BINSULATOR, HOOD

main53341-06140iACV41..20G..TAIW200605-200903

main53341-06160iACV40,GSV40..VN200608-200909

main53341-06220iAHV40200907

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iACV41..20G..TAIW200605-200903

main90467-T0014iACV40,GSV40..VN200809-200909

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-06050iACV41..20G..TAIW200605-200903

main53381-06060iACV40,GSV40..VN200608-200909

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iACV41..20G..TAIW200605-200909

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-06030iACV41..20G..TAIW200605-200903

main53388-06040iACV40,GSV40..VN200608-200909

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-06030iACV41..20G..TAIW200605-200903

main53389-06040iACV40,GSV40..VN200608-200909

53801FENDER SUB-ASSY, FRONT RH

main53801-06120iACV4#,GSV40..TAIW200605-200903

main53801-06130iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

53802FENDER SUB-ASSY, FRONT LH

main53802-06130iACV4#,GSV40..TAIW200605-200903

main53802-06140iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-06030iACV41..20G..TAIW200605-200903

main53825-06040iACV4#,GSV40..IDN,MA,PHL,TH200608-200909

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-06030iACV41..20G..TAIW200605-200903

main53826-06040iACV40,GSV40..VN200608-200909

53882BSEAL, FRONT FENDER, RH

main53882-06020iACV4#,GSV40..TAIW200605-201112

main53882-06030iACV40,GSV40..VN201203-201206

(L)

main53882-06030iACV40,GSV40..VN200608-201203

main53882-06050iAHV40200907-201112

main53882-06050iAHV40201112-201201

*299

main53882-33031iACV40,GSV40..VN201203-201206

(J)

main53882-33043iAHV40201112-201201

*300

53882FSEAL, FRONT FENDER

main53882-16030iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200605-200909

53883KSEAL, FRONT FENDER, LH

main53883-06020iACV4#,GSV40..TAIW200605-201112

main53883-06030iACV40,GSV40..VN201203-201206

(L)

main53883-06030iACV40,GSV40..VN200608-201203

main53883-06070iAHV40200907-201112

main53883-06070iAHV40201112-201201

*299

main53883-33031iACV40,GSV40..VN201203-201206

(J)

main53883-33043iAHV40201112-201201

*300

90119T0002

main90119-T0002

9046708011

main90467-08011

9046710183

main90467-10183

91631B0610

main91631-B0610

20 parts on this diagram · 3 diagrams in section
