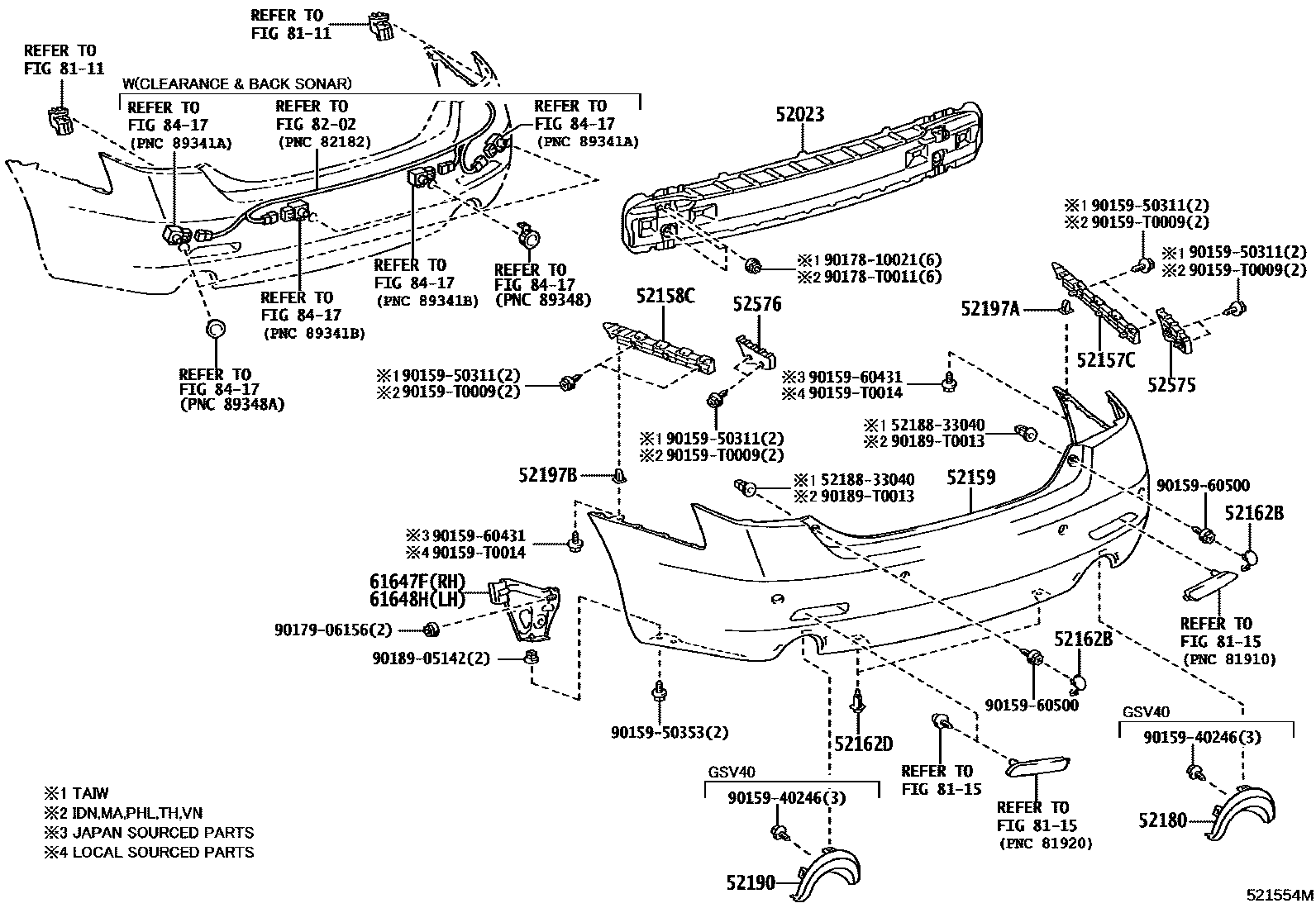

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.; PAINT REQ.,TW 3.5V HI PACKAGE
PAINT REQ.; PAINT REQ.,SINGAPORE OR BRUNEI SPEC&AUDIO-6CD CHANGER,6SPEAKER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,TW 2.0G P PACKAGE
PAINT REQ.,TW 2.4G P PACKAGE
52162BPLATE, REAR BUMPER, NO.1
RH
RH
LH
LH
52162DPIECE, REAR BUMPER
52180BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52190BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
61647FREINFORCEMENT, WHEEL HOUSE, RH
61648HREINFORCEMENT, WHEEL HOUSE, LH
8111REAR COMBINATION LAMP
8115REFLEX REFLECTOR
8202WIRING & CLAMP
8417CLEARANCE & BACK SONAR
5218833040CUSHION, REAR BUMPER ARM, LH
main52188-33040
9015940246
main90159-40246
9015950311
main90159-50311
9015950353
main90159-50353
9015960431
main90159-60431
9015960500
main90159-60500
90159T0009
main90159-T0009
90159T0014
main90159-T0014
9017810021
main90178-10021
90178T0011
main90178-T0011
9017906156
main90179-06156
9018905142
main90189-05142
90189T0013
main90189-T0013
31 parts on this diagram · 1 diagram in section
