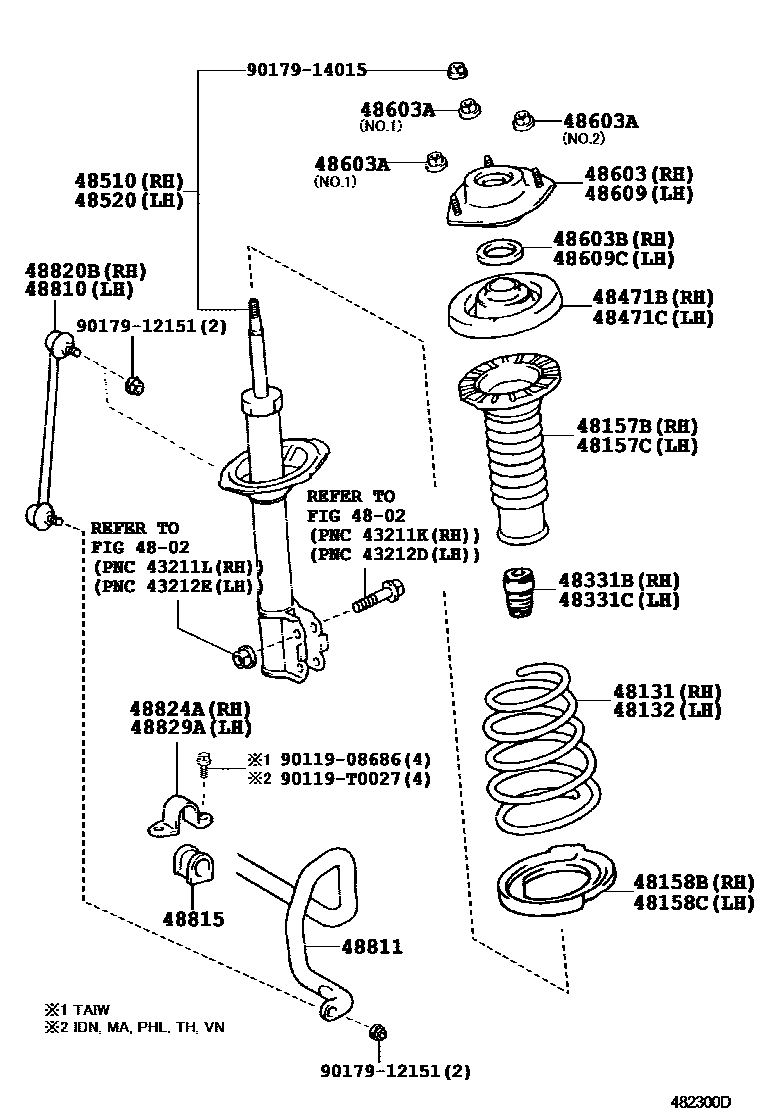

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-06A20iACV4#..TAIW200903

main48131-06A30iGSV40..TAIW200903

main48131-06A40iACV40..VN200611-200908

main48131-06A41iACV40..24V..PHL200909

LAOS SPEC

main48131-06A50iGSV40..VN200611-200908

main48131-06A51iGSV40..VN200909

main48131-06A80iACV4#..IDN,MA,PHL,TH200608-200901

main48131-06A81iACV4#..IDN,MA,PHL,TH200907

main48131-06A90iGSV40..IDN,PHL,TH200907-200908

main48131-06A91iGSV40..IDN,PHL,TH200909

main48131-06C20iAHV40200907-200912

48132SPRING, FRONT COIL, LH

main48131-06A20iACV4#..TAIW200903

main48131-06A30iGSV40..TAIW200605-200903

main48131-06A40iACV40..VN200611-200908

main48131-06A41iACV40..24V..PHL200909

LAOS SPEC

main48131-06A50iGSV40..VN200611-200908

main48131-06A51iGSV40..VN200909

main48131-06A80iACV4#..IDN,MA,PHL,TH200608-200901

main48131-06A81iACV4#..IDN,MA,PHL,TH200907

main48131-06A90iGSV40..IDN,PHL,TH200608-200907

main48131-06A91iGSV40..IDN,PHL,TH200909

main48131-06C20iAHV40200907

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06050iACV41..20G..TAIW200605-200709

main48157-06060iACV40,GSV40..VN200608-200909

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06050iACV41..20G..TAIW200605-200709

main48157-06060iAHV40200907

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main48158-06160iACV4#,GSV40..TAIW201101

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06040iACV41..20G..TAIW200605-200709

main48158-06160iACV4#,GSV40..TAIW201101

48331BBUMPER, FRONT SPRING, RH

main48331-33032iACV41..20G..TAIW200605-200709

48331CBUMPER, FRONT SPRING, LH

main48331-33032iAHV40200907

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06040iACV41..20G..TAIW200605-200709

main48471-41010iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main48471-41010iACV40,GSV40..VN200608-200909

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09N90iACV4#..IDN,MA,PHL,TH,VN200608-200703

MARK 48510-06450

main48510-09N91iACV4#..IDN,MA,PHL,TH,VN200907-201104

MARK 48510-06451

main48510-09P10iACV4#..TAIW200903

MARK 48510-06430

main48510-09P20iGSV40..TAIW200903

MARK 48510-06440

main48510-09P30iGSV40..IDN,PHL,TH,VN200608-200909

MARK 48510-06460

main48510-09X30iAHV40200907

MARK 48510-06580

main48510-8Z040iACV4#..IDN,MA,PHL,TH,VN201104

MARK 48510-06820

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09G40iACV4#..IDN,MA,PHL,TH,VN200608-200703

MARK 48520-06450

main48520-09G41iACV4#..IDN,MA,PHL,TH200703-200907

MARK 48520-06451

main48520-09G60iACV4#..TAIW200903

MARK 48520-06430

main48520-09G70iGSV40..TAIW200605-200903

MARK 48520-06440

main48520-09G80iGSV40..VN200608-200909

MARK 48520-06460

main48520-09Q30iAHV40200907

MARK 48520-06580

main48520-09W40iACV4#..IDN,MA,PHL,TH,VN201104

MARK 48520-06820

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-06140iGSV40..TAIW200903-201112

main48609-06180iGSV40..IDN,PHL,TH200608-200907

main48609-06220iACV4#..(20E,24E,24G)..TAIW200605-200903

main48609-06230iACV4#..IDN,MA,PHL,TH200608-200907

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10005×4iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

NO.1

main90178-10017×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

NO.2

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iACV40,GSV40..VN200605-200909

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06140iGSV40..TAIW200605-200903

main48609-06180iGSV40..IDN,PHL,TH,VN200907

main48609-06220iACV4#..TAIW200903

main48609-06230iACV40..VN200608-200909

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

48810LINK ASSY, FRONT STABILIZER, LH

main48820-06070iACV40,GSV40..VN200608-200909

main48820-33070iACV41..20G..TAIW200605-200709

48811BAR, STABILIZER, FRONT

main48811-06160iACV4#,GSV40..TAIW200903

main48811-06180iACV4#,GSV40..IDN,MA,PHL,TH,VN200907

main48811-33160iAHV40200907

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06110×2iACV4#,GSV40..TAIW200903-200906

main48815-06111×2iACV4#,GSV40..TAIW200909

main48815-06200×2iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-200909

main48815-06210×2iACV4#,GSV40..TAIW200907-200908

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06070iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main48820-33070iACV4#,GSV40..TAIW200903

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26210iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26210iACV41..20G..TAIW200605-200709

9011908686

main90119-08686

90119T0027

main90119-T0027

9017912151

main90179-12151

9017914015

main90179-14015

28 parts on this diagram · 1 diagram in section
