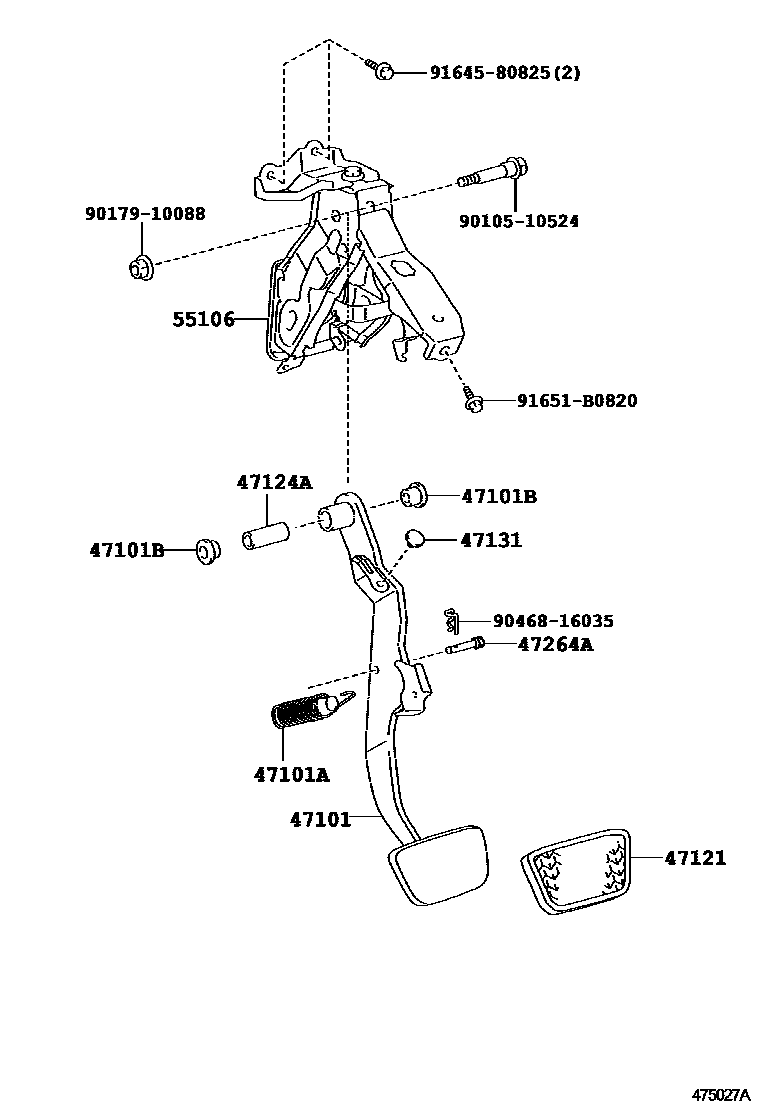

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-06200iACV40,GSV40..PHL,VN200907

main47101-06210iACV4#,GSV40..RHD200608-200907

main47101-06220iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main47101-33170iAHV40200907

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14036iACV40,GSV40..VN200605-200909

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

47121PAD, BRAKE PEDAL

main47121-06020iACV4#,GSV40..TAIW200903

main47121-50020iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main47121-53010iACV40..24E..TAIW200903

TW 2.4E SE PACKAGE

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACV41..20G..TAIW200605-200709

47264APIN(FOR PUSH ROD)

main47148-33011iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-06090iACV40,GSV40..PHL200608-200907

main55106-06100iACV4#,GSV40..RHD200907

main55106-06110iACV41..20G..TAIW200605-200709

main55106-33180iAHV40200907

9010510524

main90105-10524

9017910088

main90179-10088

9046816035

main90468-16035

9164580825

main91645-80825

91651B0820

main91651-B0820

13 parts on this diagram · 1 diagram in section
