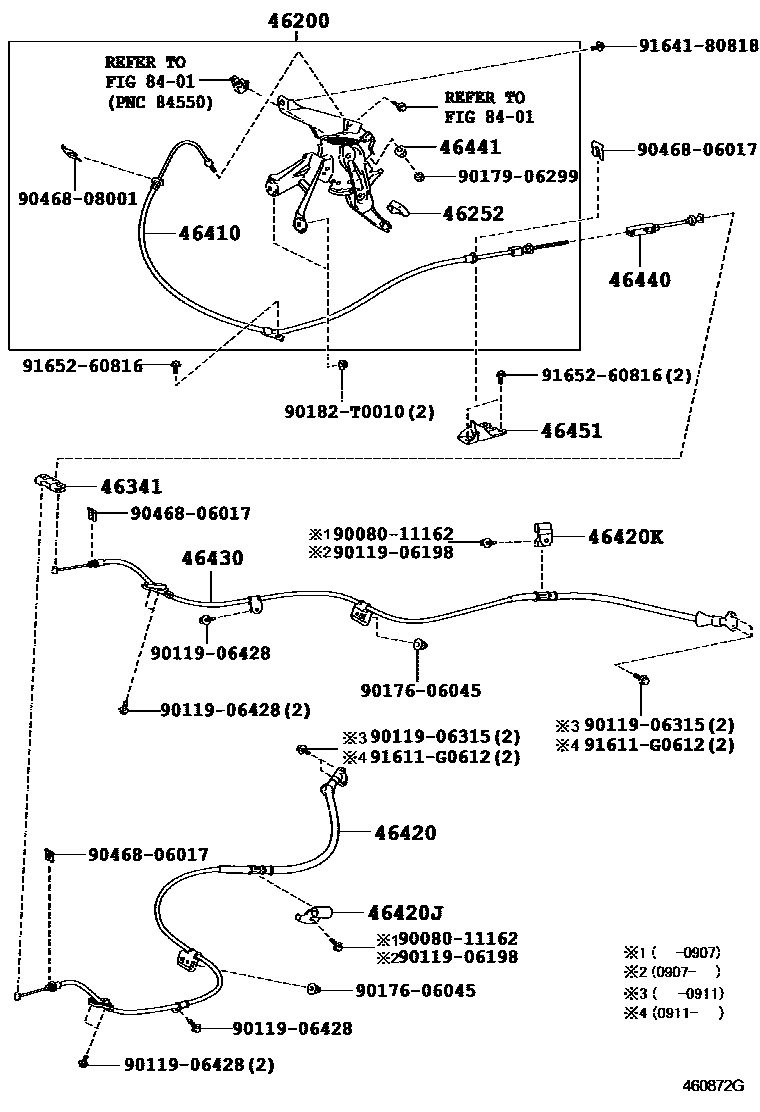

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-06070iACV4#,GSV40..TAIW200605-200903

main46200-06090iACV4#,GSV40..RHD200608-200907

sub46200-06091

main46200-06091iACV4#,AHV40,GSV40..RHD200907

main46200-06100iACV40,GSV40..VN200608-200909

sub46200-06101

main46200-06101iACV40,GSV40..PHL,VN200907

46252PAD, PARKING PEDAL

main46252-22010iACV40,GSV40..VN200605-200909

46341EQUALIZER, PARKING BRAKE

main46341-06040iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main46341-06070iACV4#,AHV40,GSV40..IDN,MA,PHL,TH,VN200608-200909

sub46341-33030

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06130iACV41..20G..TAIW200605-200903

main46410-06150iACV4#,GSV40..RHD200608-200907

sub46410-06151

main46410-06151iACV4#,AHV40,GSV40..RHD200907

main46410-06160iACV40,GSV40..VN200608-200909

sub46410-06161

main46410-06161iACV40,GSV40..PHL,VN200907

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06110iACV41..20G..TAIW200605-201112

sub46420-06111

main46420-33170iACV4#,GSV40..IDN,MA,PHL,TH,VN200608-201205

sub46420-33171

main46420-33171iACV40,GSV40201205-201207

main46420-33180iAHV40200907-201203

sub46420-33181

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C61iACV41..20G..TAIW200605-200909

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C62iACV41..20G..TAIW200605-200909

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06110iACV4#,GSV40..TAIW200605-201112

sub46430-06111

main46430-33170iACV4#,GSV40..IDN,MA,PHL,TH200608-201205

sub46430-33171

main46430-33171iACV40,GSV40201205-201207

main46430-33180iAHV40200907-201203

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-06071iACV41..20G..TAIW200605-200903

main46440-06091iACV40,GSV40..VN200608-200909

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iACV4#,GSV40..IDN,MA,PHL,TH200605-200909

46451BRACKET, CABLE SUPPORT

main46451-33100iACV41..20G..TAIW200605-200909

9008011162

main90080-11162

9011906198

main90119-06198

9011906315

main90119-06315

9011906428

main90119-06428

9017606045

main90176-06045

9017906299

main90179-06299

90182T0010

main90182-T0010

9046806017

main90468-06017

9046808001

main90468-08001

91611G0612

main91611-G0612

9164180818

main91641-80818

9165260816

main91652-60816

23 parts on this diagram · 4 diagrams in section
