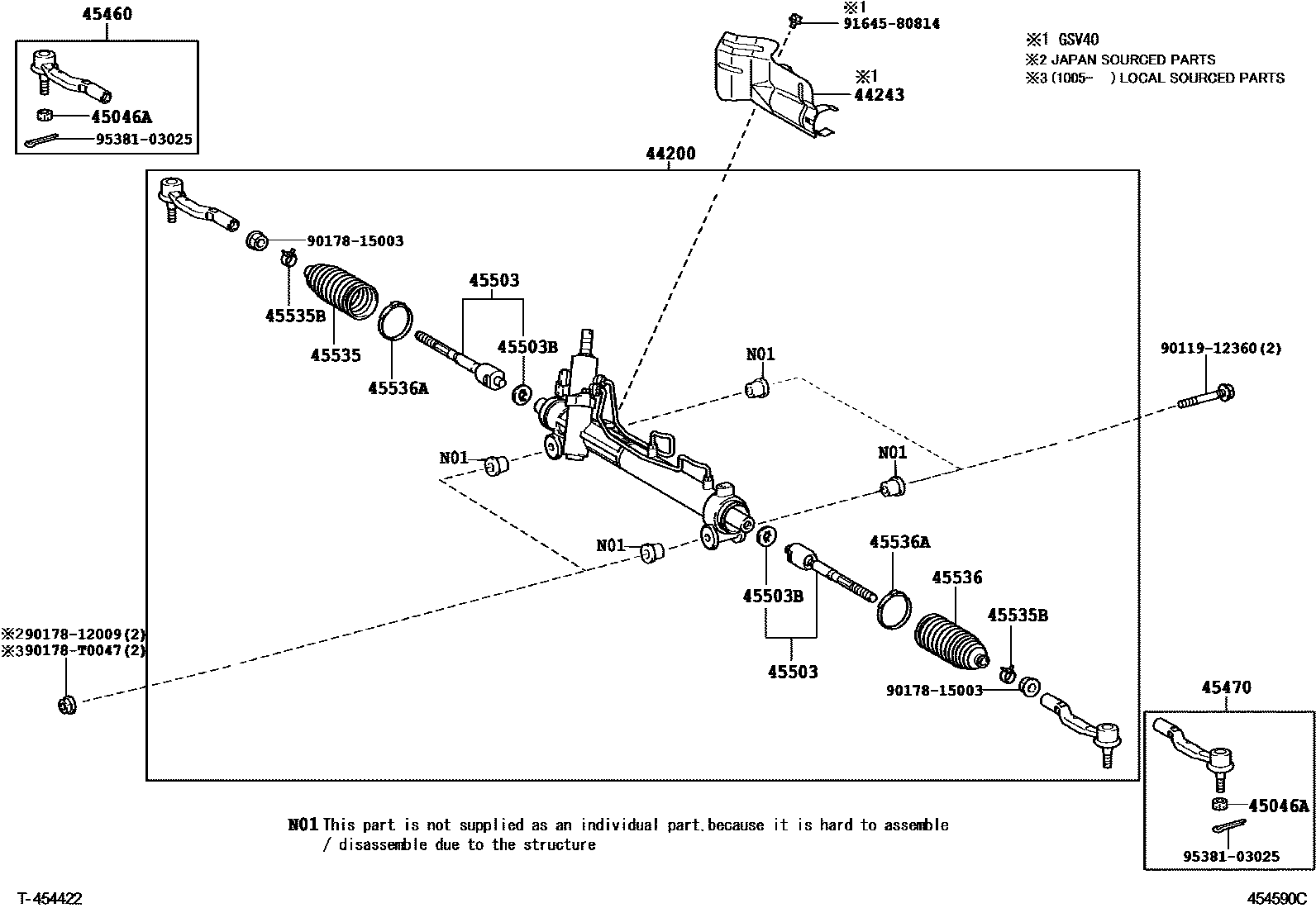

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-06290iACV4#,GSV40..TAIW200903

main44200-06300iACV40,GSV40..VN200608-200909

main44200-06310iACV4#,GSV40..RHD200608-200907

main44200-33540iAHV40200907-201106

main44200-33541iAHV40201107

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-33011iGSV40..PHL200605-200907

main44243-33030iGSV40..RHD200608-200907

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iACV40,GSV40..VN200605-200909

main90171-T0004×2iACV4#,AHV40,GSV40201005

(L)

45460ROD ASSY, TIE, RH

main45460-39635iACV41..20G..TAIW200605-200709

45470ROD ASSY, TIE, LH

main45470-39225iACV4#,GSV40..IDN,MA,PHL,TH200605-200907

45503END SUB-ASSY, STEERING RACK

main45503-39275×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main45503-39315×2iAHV40200907

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iACV40,GSV40..VN200605-200909

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-30030iAHV40200907-201202

main45535-33050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main45535-59045iAHV40201202-201203

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46153×2iACV41..20G..TAIW200605-200709

main90467-19019×2iAHV40200907

45536BOOT, STEERING RACK, NO.2

main45535-30030iAHV40200907-201202

main45535-33050iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

main45535-59045iAHV40201202-201203

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016×2iAHV40200907

main90460-60009×2iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

9011912360

main90119-12360

9017812009

main90178-12009

9017815003

main90178-15003

90178T0047

main90178-T0047

9164580814

main91645-80814

9538103025

main95381-03025

17 parts on this diagram · 4 diagrams in section
