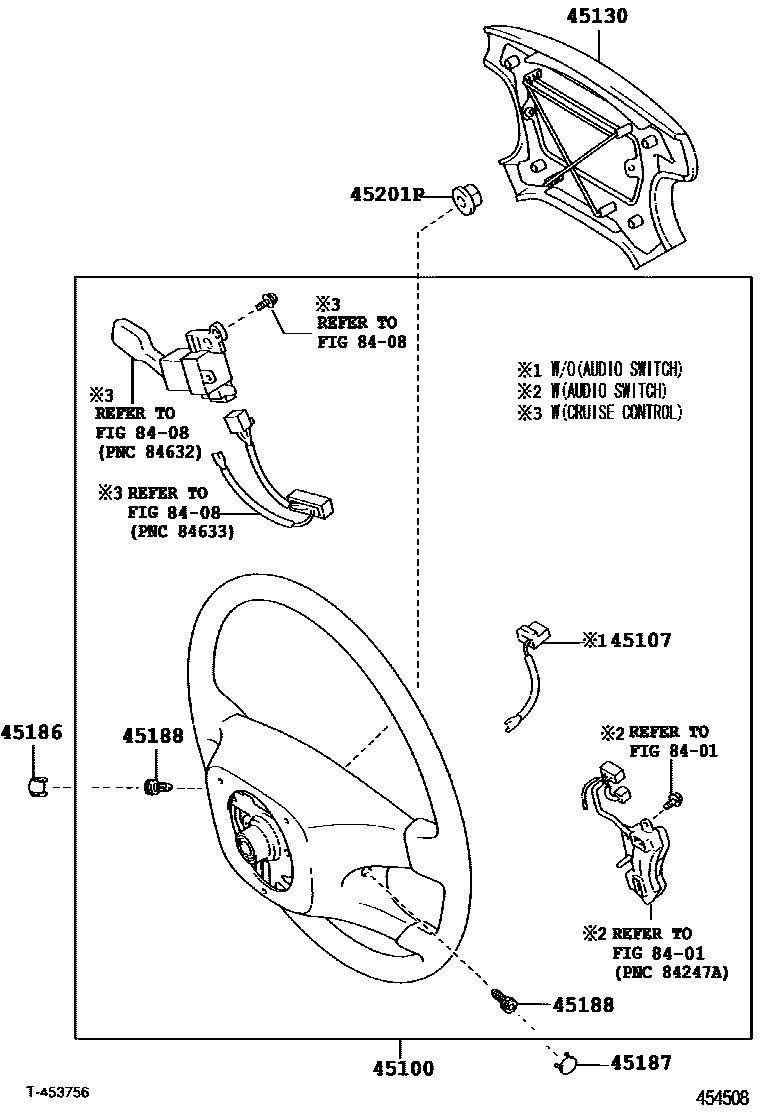

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
main45100-06F40-E0supersedes 45100-06F60-E0iACV40..24V..TH; ACV41..TH;ACV40..24V..(IDN,MA,PHL)200608-200907
4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,AUDIO-6CD CHANGER,6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,AUDIO-AVX LESS 6SPEAKER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#
4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#
4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#
4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,TW 2.4E LOW PACKAGE,BLACK,TRIM2#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,TW 2.4E LOW PACKAGE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,TW 2.0E HI PACKAGE,BLACK,TRIM2#
4-SPOKE,LEATHER,TW 2.0E HI PACKAGE,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,PRE-COLLISION SYSTEM-W/O,BLACK,TRIM2#
4-SPOKE,LEATHER,TW 2.4E SE PACKAGE,BLACK,TRIM2#
4-SPOKE,WOOD&LEATHER,TW 3.5V HI PACKAGE,BLACK,TRIM2#
4-SPOKE,WOOD&LEATHER,TW 3.5V HI PACKAGE,ASH BROWN,TRIM4#
4-SPOKE,WOOD&LEATHER,AUDIO-6CD CHANGER,6SPEAKER,BLACK,TRIM2#; 4-SPOKE,WOOD&LEATHER,AUDIO-RADIO LESS(WITH/COVER),6SPEAKER,BLACK,TRIM2#
4-SPOKE,WOOD&LEATHER,AUDIO-6CD CHANGER,6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,AUDIO-RADIO LESS(WITH/COVER),6SPEAKER,ASH BROWN,TRIM4#
45107WIRE SUB-ASSY, HORN BUTTON
45130BUTTON ASSY, HORN
BLACK,TRIM2#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#; TH 2.0E PACKAGE,ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
TW 2.0E HI PACKAGE,BLACK,TRIM2#
TW 2.0E HI PACKAGE,ASH BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9 parts on this diagram · 3 diagrams in section
