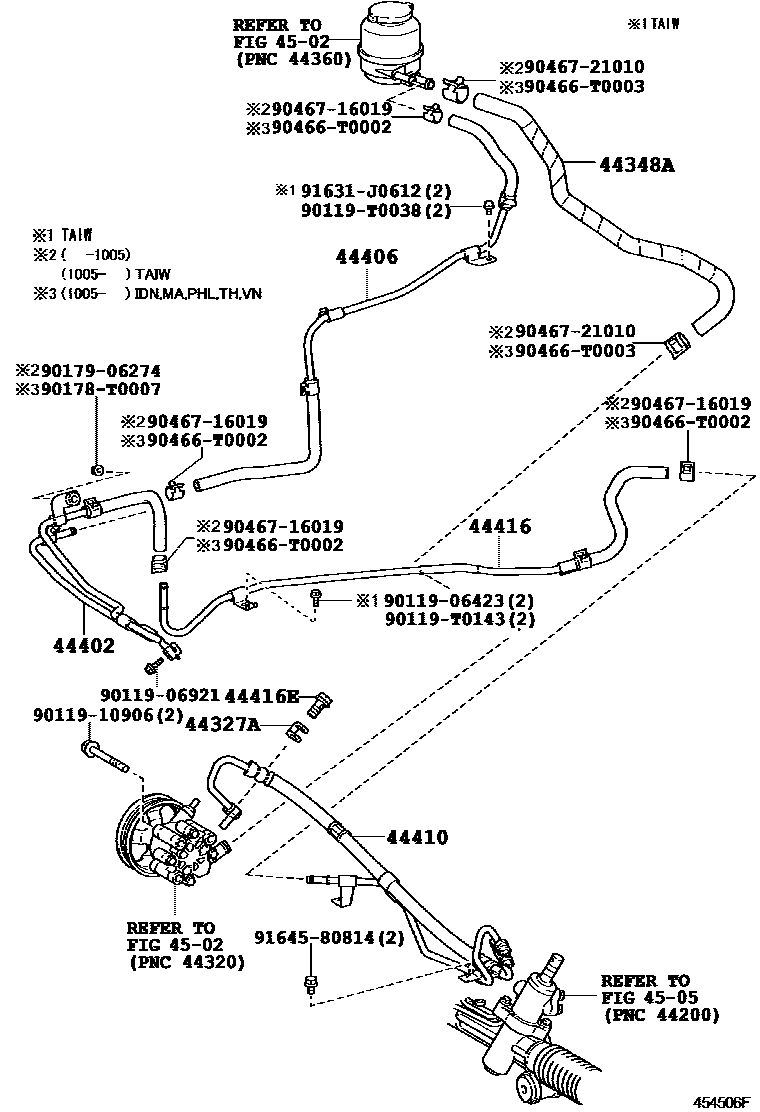

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACV40,GSV40..VN200605-200909

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06310iACV4#..RHD200608-200907

main44348-06320iACV4#..(20E,24E,24G)..TAIW200605-200903

main44348-06330iGSV40..TAIW200605-200903

main44348-33240iACV40..PHL200608-200907

main44348-33250iGSV40..IDN,PHL,TH200608-200907

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-06101iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main44402-06111iACV41..20G..TAIW200605-200709

44406TUBE SUB-ASSY, RETURN

main44406-06200iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main44406-06210iACV4#,GSV40..(20E,24E,24G,35Q,35V)..TAIW200605-200903

44410TUBE ASSY, PRESSURE FEED

main44410-06170iACV4#..RHD200907-201201

main44410-06290iGSV40..TAIW200903-201112

main44410-06340iACV4#..TAIW200903-201112

main44410-33180iACV40..PHL,VN200608-200901

main44410-33181iACV40..PHL,VN200902-200904

main44410-33182iACV40..PHL,VN200907-201206

main44410-33240iGSV40..PHL,VN200608-200901

main44410-33241iGSV40..PHL,VN200902-200904

main44410-33242iGSV40..PHL,VN200907-201206

main44410-33250iGSV40..RHD200608-200901

main44410-33251iGSV40..RHD200902-200904

main44410-33252iGSV40..RHD200907-201201

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06221iACV4#..RHD200608-200907

main44416-06231iACV41..20G..TAIW200605-200709

main44416-06241iGSV40..TAIW200903-201112

main44416-33171iACV40..PHL,VN200907-201206

main44416-33191iGSV40..PHL,VN200907-201206

main44416-33201iGSV40..RHD200608-200907

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV41..20G..TAIW200605-200709

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906423

main90119-06423

9011906921

main90119-06921

9011910906

main90119-10906

90119T0038

main90119-T0038

90119T0143

main90119-T0143

90178T0007

main90178-T0007

9017906274

main90179-06274

90466T0002

main90466-T0002

90466T0003

main90466-T0003

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

9164580814

main91645-80814

22 parts on this diagram · 4 diagrams in section
