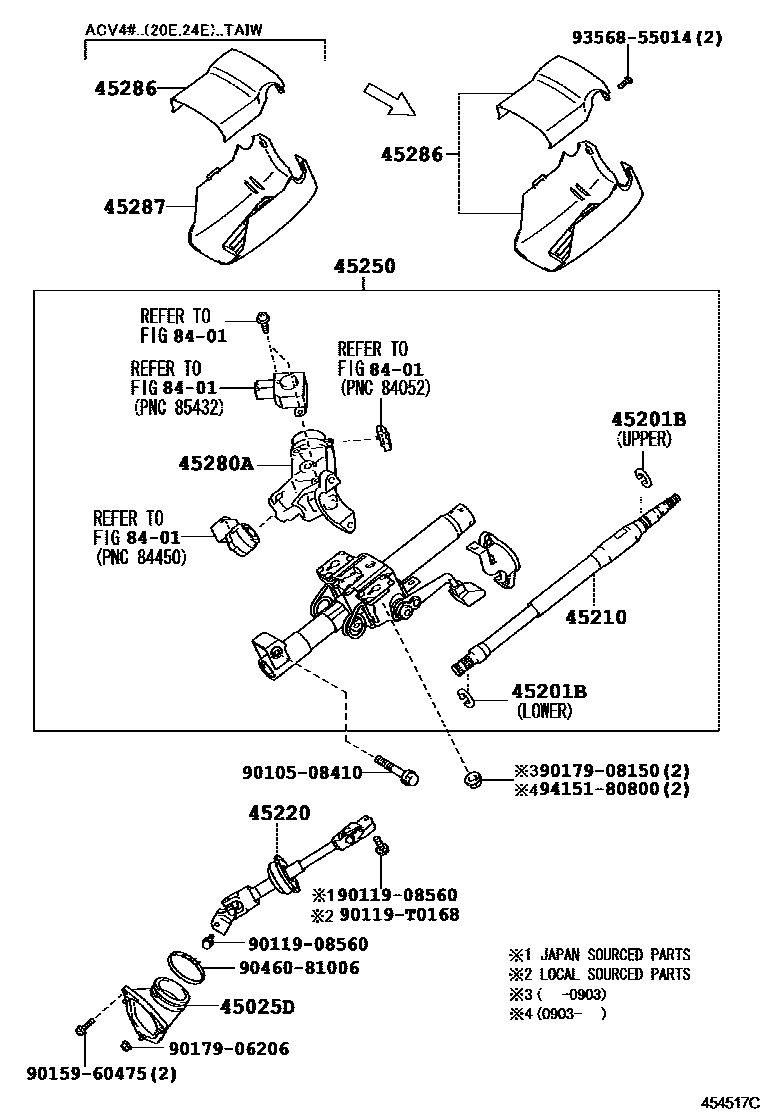

STEERING COLUMN & SHAFT

0001 1 0002 1W(PUSH START) 0003 1POWER TILT & TELESCOPIC STEER0004 1MANUAL TILT & TELESCOPIC STEE

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06120iACV41..20G..TAIW200605-200709

main45025-06130iACV4#,GSV40..RHD200608-200907

main45025-06140iACV40,GSV40..PHL200608-200907

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iACV41..20G..TAIW200605-200709

T=1.20,LOWER

main90520-21023iACV41..20G..TAIW200605-200709

T=1.20,UPPER SIDE

45210SHAFT ASSY, STEERING MAIN

main45210-06040iACV41..20G..TAIW200605-200709

main45210-06050iACV40,GSV40..(24G,35V)..TAIW200605-200903

main45210-33170iGSV40..35Q..TAIW200605-200903

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06120iACV40,GSV40..VN200903-200910

main45220-06121iACV4#,GSV40..LHD200910-201005

main45220-06122iACV4#,GSV40..LHD201006

main45220-06130iACV4#,GSV40..RHD200608-200812

main45220-06131iACV4#,GSV40..RHD200901-200907

main45220-06132iACV4#,GSV40..RHD200910

main45220-06160iAHV40200907-200909

main45220-06161iAHV40200910

45250COLUMN ASSY, STEERING

main45250-06430iACV41..20G..TAIW200605-200709

main45250-06440iACV40,GSV40..(24G,35V)..TAIW200605-200903

main45250-06490iACV40..24V..(MA,PHL);ACV4#..(20,20E,20G,24E,24G)..(IDN,MA,PHL,TH)200608-200907

main45250-06500iGSV40..PHL;ACV40..24V..(IDN,TH)200608-200907

main45250-33681iGSV40..35Q..TAIW200605-200903

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06070iACV41..20G..TAIW200605-200709

main45280-06080iACV40..24V..(MA,PHL);ACV4#..(20,20E,20G,24E,24G)..(IDN,MA,PHL,TH)200608-200907

45286COVER, STEERING COLUMN

main45286-06160iACV4#..(20E,24E)..TAIW200605-200903

main45286-06912-E0supersedes 45286-06916-E0iACV40..24V..(MA,PHL);ACV4#..(20E,20G,24E,24G)..(IDN,MA,PHL,TH,VN)200608-200909

ASH BROWN,TRIM4#

main45286-06914-C0iGSV40..PHL200608-200907

BLACK,TRIM2#

main45286-06916-E0iACV4#..(20,24G)..TH200907-201203

ASH BROWN,TRIM4#

main45286-06917-C0iACV4#..(20G,24E)..TAIW200605-200903

BLACK,TRIM2#

main45286-06917-E0iACV4#..(20G,24E)..TAIW200605-200903

ASH BROWN,TRIM4#

main45286-06918-C0iACV40,GSV40..(24G,35V)..TAIW200605-200903

BLACK,TRIM2#

main45286-06918-E0supersedes 45286-06914-E0iACV40..24G..TAIW;ACV40,GSV40..(24V,35V)..(IDN,TAIW)200605-200907

ASH BROWN,TRIM4#

main45286-06920-C0iGSV40..35Q..(TAIW,TH,VN)200605-200909

BLACK,TRIM2#

main45286-06920-E0iGSV40..35Q..TAIW200605-200903

ASH BROWN,TRIM4#

main45286-06921-C0iGSV40..IDN200608-200907

BLACK,TRIM2#

main45286-06924-C0iAHV40;GSV40..PHL200907-201203

BLACK,TRIM2#

main45286-06924-E0iACV40,AHV40..(24V,HBD)..(MA,PHL,TH)200907-201203

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06170iACV4#..(20E,24E)..TAIW200605-200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508410

main90105-08410

9011908560

main90119-08560

90119T0168

main90119-T0168

9015960475

main90159-60475

9017906206

main90179-06206

9017908150

main90179-08150

9046081006

main90460-81006

9356855014

main93568-55014

9415180800

main94151-80800
