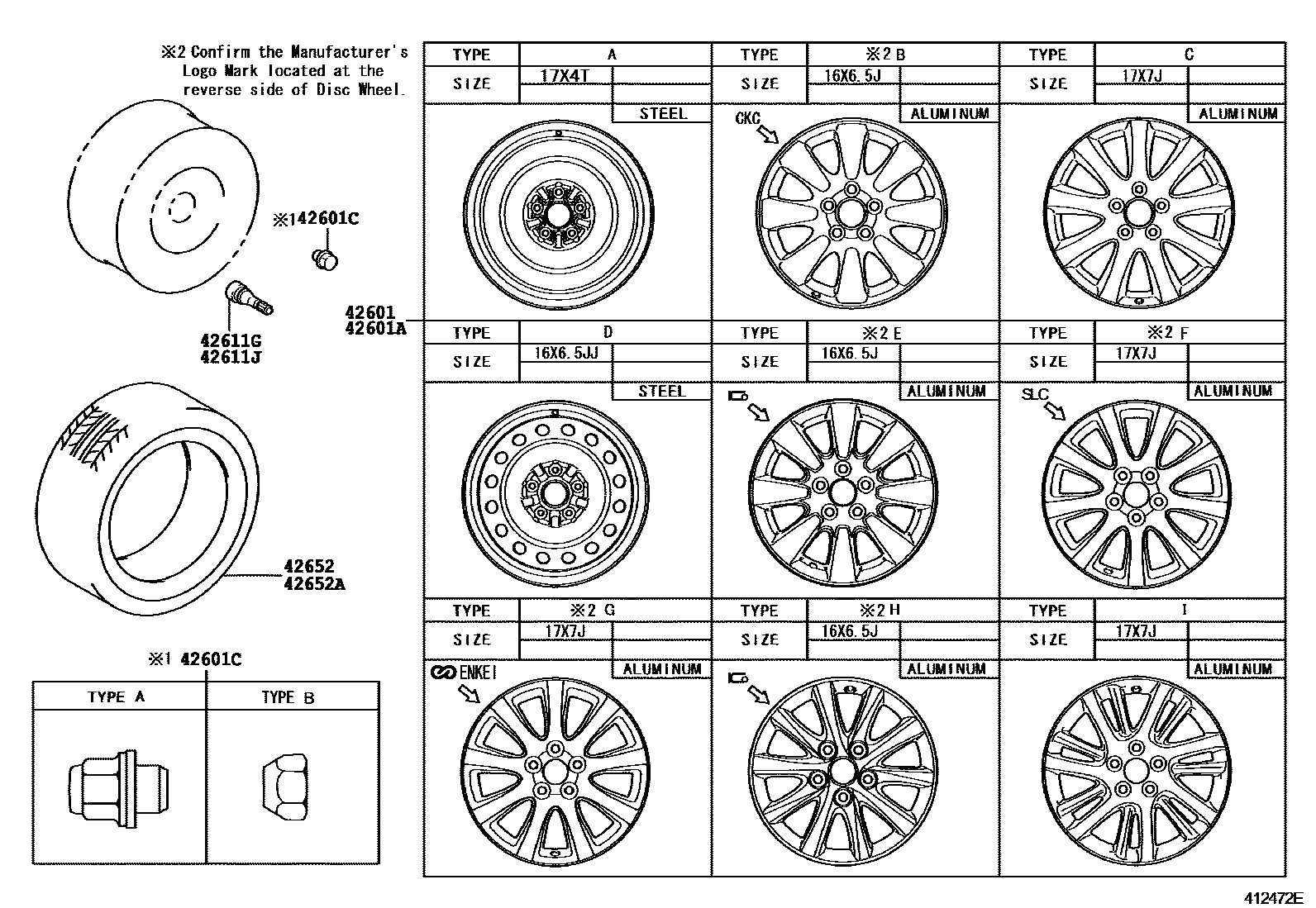

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5JJ,#,TYPE D:REFER ILLUST.
16X6.5J,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE G:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
16X6.5J,#,TYPE J:REFER ILLUST.
17X7J,#,TYPE I:REFER ILLUST.
17X7J,#,TW 2.4G P PACKAGE,TYPE I:REFER ILLUST.
17X7J,#,TW 2.4E SE PACKAGE,TYPE I:REFER ILLUST.
16X6.5J,#,TYPE H:REFER ILLUST.
16X6.5J,#,TYPE H:REFER ILLUST.
17X7J,#,TYPE I:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
17X7J,#,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE A:REFER ILLUST.
16X6.5JJ,#,TIRE & DISK WHEEL-215/60R16 95H 6.5JJ,TYPE A:REFER ILLUST.
16X6.5JJ,#,TYPE D:REFER ILLUST.
16X6.5JJ,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE G:REFER ILLUST.
16X6.5J,#,TYPE J:REFER ILLUST.
16X6.5J,#,SINGAPORE OR BRUNEI SPEC,TYPE H:REFER ILLUST.
16X6.5J,#,TYPE H:REFER ILLUST.
16X6.5J,#,TYPE H:REFER ILLUST.
17X7J,#,TYPE I:REFER ILLUST.
16X6.5J,#,TYPE E:REFER ILLUST.
17X7J,#,SINGAPORE OR BRUNEI SPEC,TYPE F:REFER ILLUST.
17X7J,#,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
215/60R16 95H,*B/S
215/60R16 95H,*B/S
215/60R16 95H,*B/S,SINGAPORE OR BRUNEI SPEC&TIRE & DISK WHEEL-215/60R16 95H 6.5JJ
215/60R16,MICHELIN,SINGAPORE OR BRUNEI SPEC&TIRE & DISK WHEEL-215/60R16 95H 6.5JJ
215/60R16,MICHELIN
215/60R16 95H,*C/S
215/55R17 92H,*B/S
215/55R17,*B/S
215/55R17,*B/S,TW 2.4E SE PACKAGE
215/55R17,*B/S,TW 2.4G P PACKAGE
215/55R17 93V,*B/S
215/60R16 95V,*Y/H
42652ATIRE (FOR SPARE)
215/60R16 95H,*B/S
215/60R16,MICHELIN
215/55R17 92H,*B/S
215/55R17 93V,*B/S,SINGAPORE OR BRUNEI SPEC
215/55R17 93V,*B/S
T155/70D17
215/60R16 95V,*Y/H
7 parts on this diagram · 4 diagrams in section
