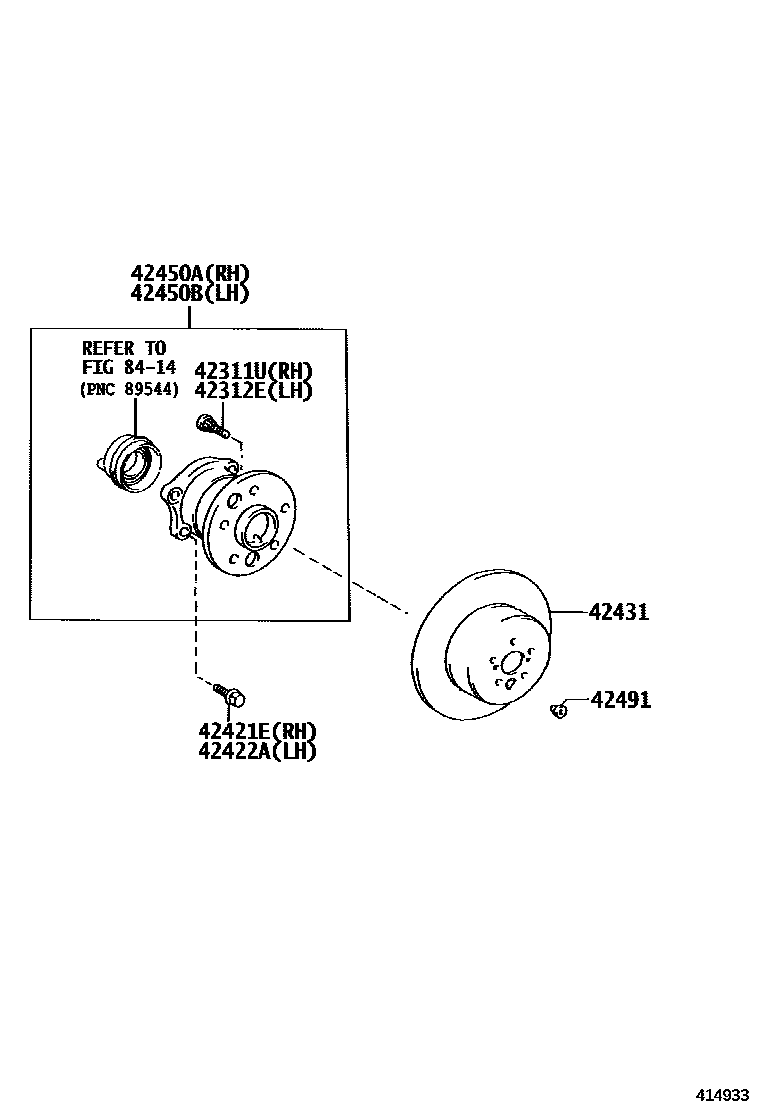

REAR AXLE SHAFT & HUB

0001 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iACV41..20G..TAIW200605-200709

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iACV41..20G..TAIW200605-200709

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10510×4iACV4#,GSV40..IDN,MA,PHL,TH,VN200605-200703

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10510×4iACV4#,GSV40..IDN,MA,PHL,TH,VN200605-200703

42431DISC, REAR

main42431-06150×2iACV41..20G..TAIW200605-200709

main42431-06160×2iACV40,GSV40..VN200608-200909

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-06041iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main42450-06070iACV41..20G..TAIW200605-200709

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-06011iACV4#,GSV40..IDN,MA,PHL,TH200608-200907

main42460-06050iACV4#,GSV40..TAIW200903-201112

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iACV40..24E..TAIW;ACV4#,AHV40,GSV40..20,20E,20G,24G,24V,35Q,35V,HBD200903

8414ABS & VSC

→ Go to FIG 84-14

9 parts on this diagram · 2 diagrams in section
