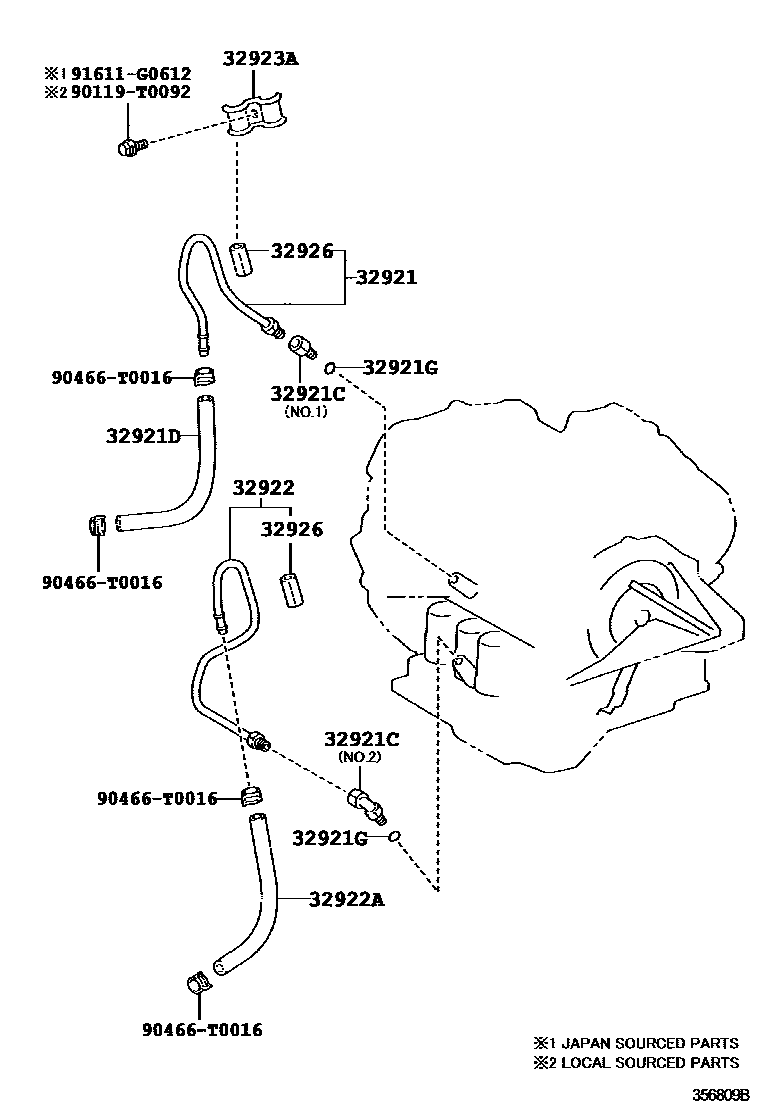

OIL COOLER & TUBE (ATM)

0001 1U241E,U250E 0002 1U660E

32921TUBE, OIL COOLER INLET, NO.1

main32921-06190iACV40..VN200608-200909

main32921-06200iACV4#..TAIW200903

32921CUNION(FOR OIL COOLER TUBE)

main90404-14027iGSV40..VN200605-200909

OUTLET

main90404-16031iACV40200605-200609

NO.1

main90407-14032iGSV40..TAIW200605-200903

INLET

main90407-16010iACV41..RHD200605-200907

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main32943-06070iACV41..20G..TAIW200605-200709

main32943-06160iACV4#..IDN,MA,PHL,TH200805-200907

main32943-33260iACV4#..IDN,MA,PHL,TH,VN200608-200804

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iACV40..IDN,MA,PHL,TH200609-200907

main90301-11006×2iGSV40200903-201108

main90301-11031×2iGSV40201108

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-06170iACV4#..IDN,MA,PHL,TH200608-200907

main32922-06180iACV4#..TAIW200903

32922AHOSE(FOR OIL COOLER OUTLET)

main32943-06080iACV4#..TAIW200903

main90445-17128iACV4#..IDN,MA,PHL,TH,VN200608-200804

main90445-T0016iACV4#..IDN,MA,PHL,TH200805-200907

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iACV4#..IDN,MA,PHL,TH200605-200907

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-06040×2iACV4#..(20E,24E,24G)..TAIW200605-200903

L=35,ID=10

main32926-30020×2iACV4#..IDN,MA,PHL,TH200608-200907

L=35,ID=10

90119T0092

main90119-T0092

90466T0016

main90466-T0016

91611G0612

main91611-G0612

11 parts on this diagram · 2 diagrams in section
