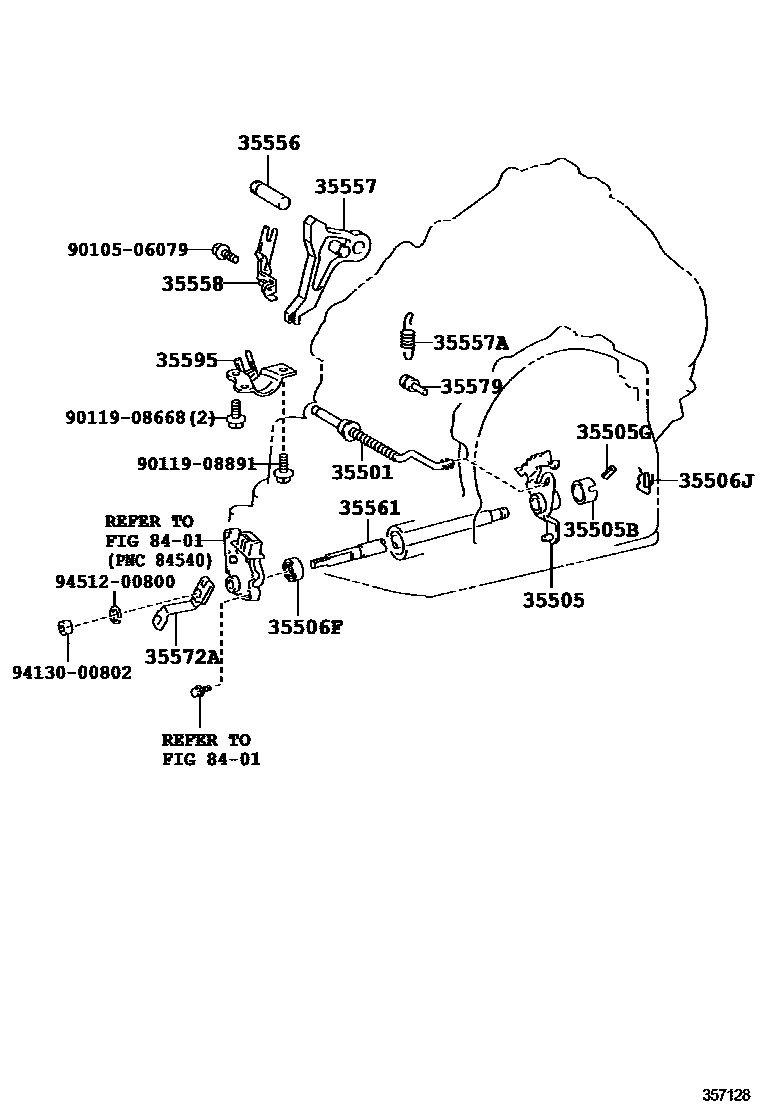

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U241E,U250E 0002 1U660E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iACV41..20G..TAIW200702-200709

main35501-33020iGSV40..IDN,PHL,TH200605-200907

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACV40..IDN,MA,PHL,TH200610-200907

main35505-33010iGSV40200605-200810

main35505-33011iGSV40..VN200810-200909

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACV41200605-200702

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACV40..VN; GSV40..VN200605-200909

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33020iGSV40201204-201207

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACV40200605-200609

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACV40200605-200609

main90524-09002iGSV40..TAIW200605-200903

35556SHAFT, PARKING LOCK PAWL

main35556-32030iACV40..24E..TAIW;ACV4#..20,20E,20G,24G,24V200903

main35556-33010iGSV40..TAIW200605-200903

35557PAWL, PARKING LOCK

main35557-33020iGSV40200903-201203

main35557-33021iGSV40..VN201203-201206

main35590-32010iACV40..24E..TAIW;ACV4#..20,20E,20G,24G,24V200903-201206

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iACV40200609-200610

35558CLAMP, PAWL SHAFT

main35558-32010iACV41200605-200702

main35558-33010iGSV40..TAIW200605-200903

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACV40200609-200610

main35561-33020iGSV40200903-201204

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iGSV40200605-200909

main35572-33040iACV40..24E..TAIW;ACV4#..20,20E,20G,24G,24V200903

35579PIN, PARKING LOCK PAWL

main35594-21010iACV40200605-200609

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACV41..20E..TAIW200702-200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 2 diagrams in section
