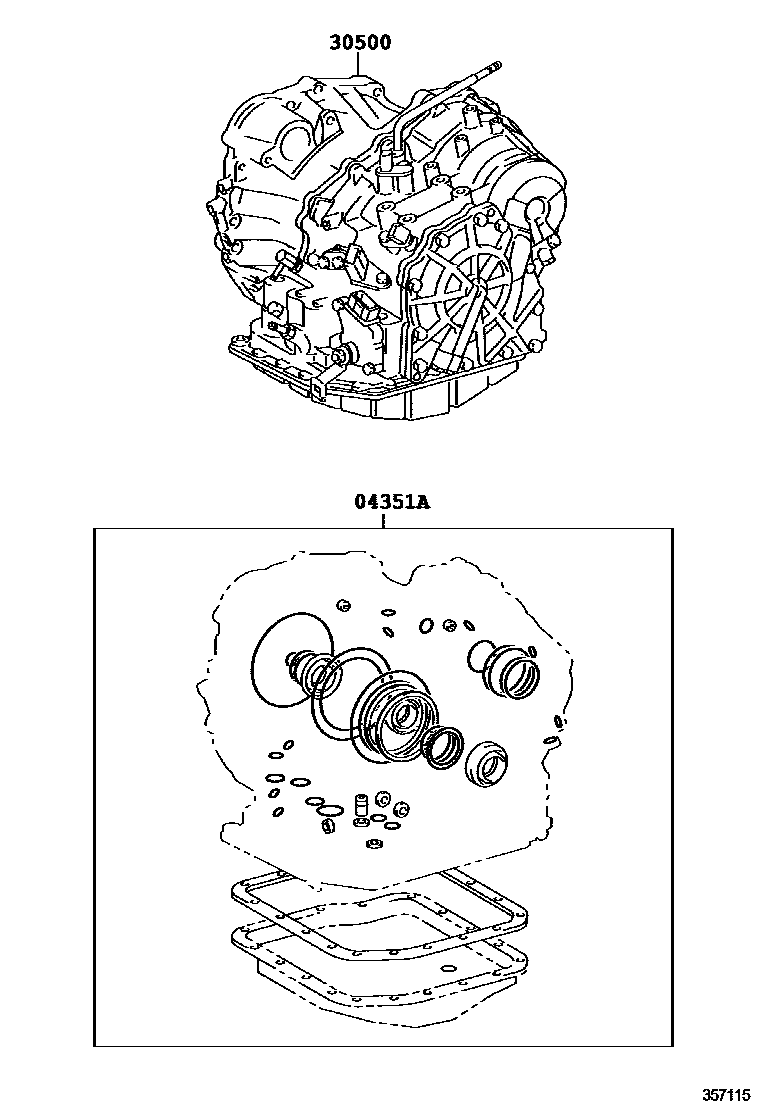

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U241E,U250E 0002 1U660E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33400iGSV40..IDN,PHL,TH200605-200907

main04351-33401iGSV40201106-201207

main04351-33430iACV40200608-200610

main04351-33431iACV40201002-201106

main04351-33432iACV40201106-201207

main04351-33450iACV40..IDN,MA,PHL,TH200610-200907

main04351-48060iACV41200605-200703

main04351-48150iACV41..20G..TAIW200703-200709

main04351-48151iACV41201002-201106

main04351-48152iACV41201106-201203

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33460iACV40200608-200609

U250E

main30500-33470iGSV40200605-200909

U660E

main30500-33490iACV41200605-200702

U241E

main30500-33491iACV41200903

U241E

main30500-33520iACV40..24G,24V;ACV40..24E..TAIW200903

U250E

2 parts on this diagram · 2 diagrams in section
