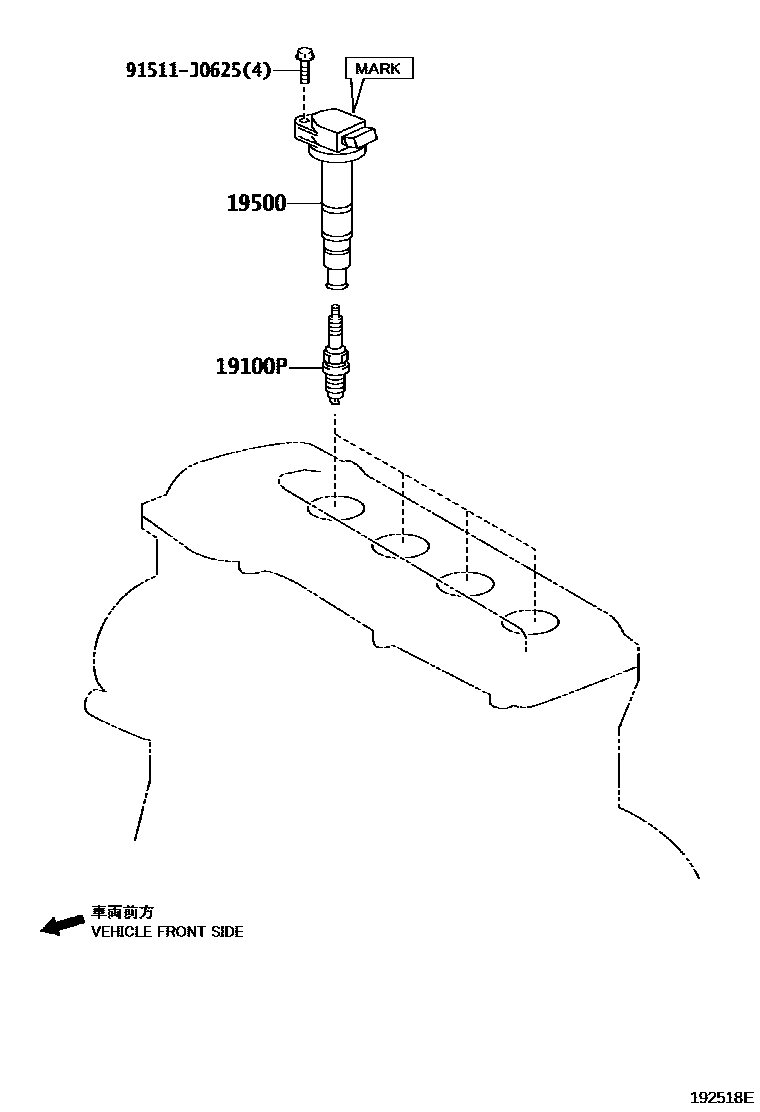

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01210i1AZFE..ACV41..20G..TAIW200605-201109

SK20R11

main90919-01237i2AZFXE..AHV40200907-201201

SK20R11

sub90919-01210

main90919-01240i1AZFE,2AZFE..ACV4#201109-201206

SK16R11

main90919-01247i2GRFE..GSV40200605-200909

FK20HR11

main90919-T1010i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200905-201109

IFR6A11

sub90919-T1012

main90919-T1012i1AZFE,2AZFE..ACV4#201109-201206

IFR5A11

19500COIL ASSY, IGNITION

main90919-02244i2AZFXE..AHV40200907-201203

MARK 90919-02244

sub90919-02266

main90919-02248i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200909

sub90919-02260

main90919-02248i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-201112

MARK 90919-02248

sub90919-02260

main90919-02251i2GRFE..GSV40200605-200812

sub90919-02255

main90919-02255i2GRFE..GSV40..VN200812-200909

sub90919-02256

main90919-02260i1AZFE,2AZFE..ACV4#201112-201207

MARK 90919-02260

main90919-02266i2AZFXE..AHV40201009-201203

MARK 90919-02266

91511J0625

main91511-J0625

3 parts on this diagram · 2 diagrams in section
