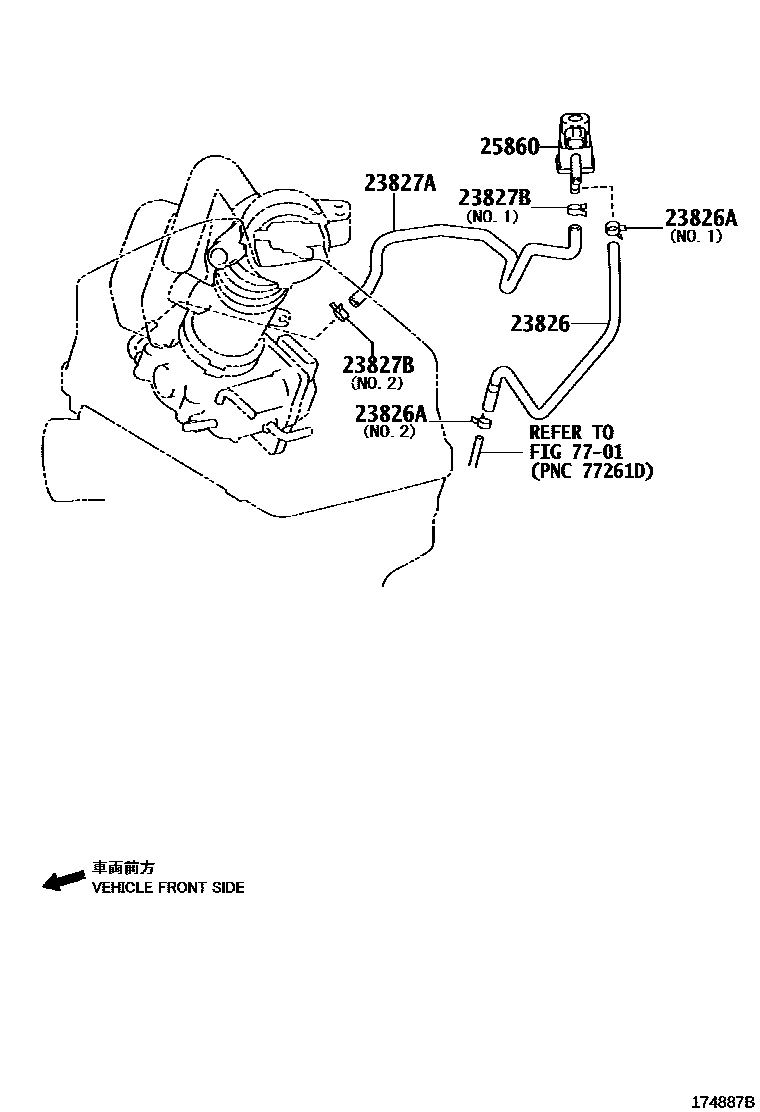

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0H130i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-200907

main23826-0H150i1AZFE,2AZFE..ACV4#..TAIW200903

main23826-0H310i2AZFXE..AHV40200907

main23826-0P060i2GRFE..GSV40..IDN,PHL,TH,VN200907-201207

NO.1

main23826-0P070i2GRFE..GSV40..TAIW200903-201112

NO.1

main23826-31080i2GRFE..GSV40200903-201207

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD; 2GRFE..GSV40200903

NO.1

main96132-51100i2GRFE..GSV40..VN200605-200909

NO.2

main96132-51300i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-0H140i1AZFE,2AZ#..ACV4#,AHV40..IDN,MA,PHL,TH,VN200907

main23826-0H160i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

main23827-0P040i2GRFE..GSV40..IDN,PHL,TH,VN200608-200909

main23827-0P050i2GRFE..GSV40..TAIW200903-201112

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11003i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

NO.1

main96132-51000i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

NO.2

main96132-51100i2GRFE..GSV40200903

NO.2

main96132-51300i2GRFE..GSV40200903

NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0H120i1AZFE,2AZ#..ACV4#,AHV40..IDN,MA,PHL,TH,VN200907

main25860-28160i2AZFE..ACV40..VN200605-200909

7701FUEL TANK & TUBE

→ Go to FIG 77-01

6 parts on this diagram · 4 diagrams in section
