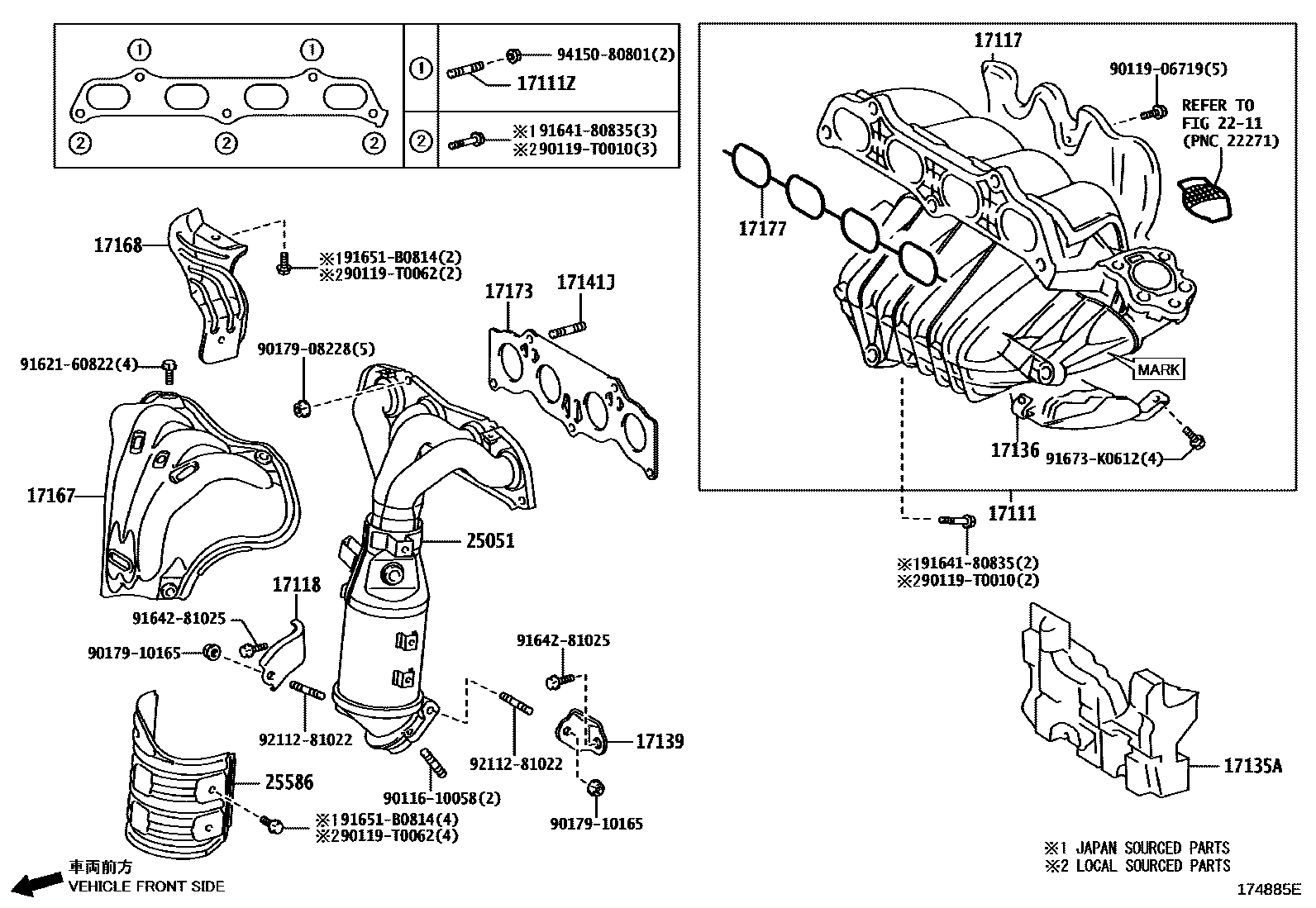

MANIFOLD
17111MANIFOLD, INTAKE
(L)
(J)
(J)
(J)
(J)
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17117INSULATOR, INTAKE PIPE
(J)
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
(L)
(J)
17136INSULATOR, INTAKE MANIFOLD, NO.2
(L)
(J)
17139STAY, MANIFOLD, NO.2
(L)
(L)
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
9011610058
main90116-10058
9011906719
main90119-06719
90119T0010
main90119-T0010
90119T0062
main90119-T0062
9017908228
main90179-08228
9017910165
main90179-10165
9162160822
main91621-60822
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
91673K0612
main91673-K0612
9211281022
main92112-81022
9415080801
main94150-80801
28 parts on this diagram · 4 diagrams in section
