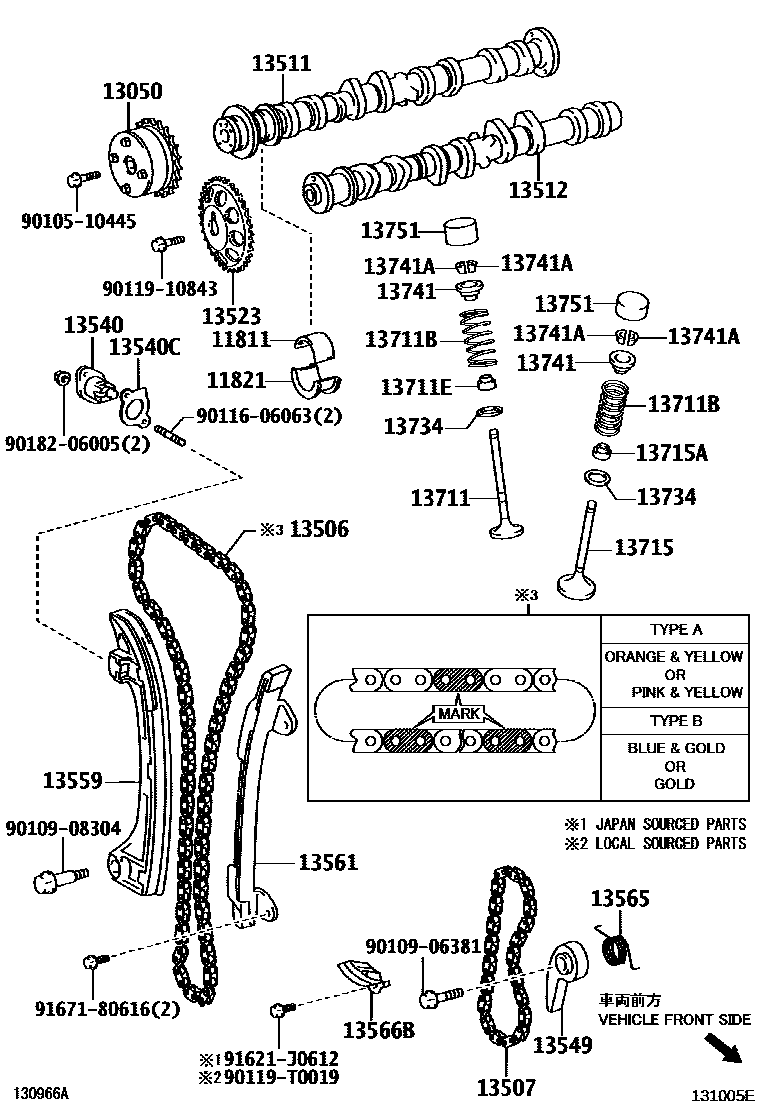

CAMSHAFT & VALVE

0001 1 0002 1

11811BEARING, CAMSHAFT, NO.1

main11811-0H010-01i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

MARK 1,(L)

main11811-0H010-02i1AZFE..ACV41..20G..TAIW200605-200709

MARK 2,(L)

main11811-0H010-03i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

MARK 3,(L)

main11811-28010-01i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

MARK 1

main11811-28010-02i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

MARK 2,(J)

main11811-28010-03i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

MARK 3,(J)

11821BEARING, CAMSHAFT, NO.2

main11821-0H010-01i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

MARK 1,(L)

main11821-0H010-02i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

MARK 2,(L)

main11821-0H010-03i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

MARK 3,(L)

main11821-28010-01i1AZFE..ACV41..20G..TAIW200605-200709

MARK 1,(J)

main11821-28010-02i2AZFE..ACV40..VN200605-200909

MARK 2,(J)

main11821-28010-03i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

MARK 3,(J)

13050GEAR ASSY, CAMSHAFT TIMING

main13050-28021i1AZFE..ACV41..20G..TAIW200605-200709

main13050-31170×2i2GRFE..GSV40200903-201206

13506CHAIN SUB-ASSY

main13506-0H021i1AZFE..ACV41..20G..TAIW200605-200709

(L),T/P A:REF.ILLUST

main13506-28011i2AZFXE..AHV40200907-201201

TYPE A:REFER ILLUST.

main13506-28020i1AZFE..ACV41..20G..TAIW200605-200709

TYPE B:REFER ILLUST.

main13506-31020i2GRFE..GSV40200605-200804

main13506-31031i2GRFE..GSV40200903

13507CHAIN SUB-ASSY, NO.2

main13507-0H010i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

main13507-28010i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(J)

main13507-31020×2i2GRFE..GSV40..VN200605-200909

13511CAMSHAFT

main13501-0H030i1AZFE..ACV41200903

(L)

main13501-0H040i2AZFE..ACV40..VN200608-200909

(L)

main13501-28040i1AZFE..ACV41..RHD200605-200907

(J)

main13501-28060i2AZFE..ACV40..24G,24V;2AZFE..ACV40..24E..TAIW200903

(J)

main13501-28070i2AZFXE..AHV40200907

main13501-31091i2GRFE..GSV40200903-201207

main13501-31100i2GRFE..GSV40200605-200909

13512CAMSHAFT, NO.2

main13502-0H030i1AZFE..ACV41..20G..TAIW200605-200709

(L)

main13502-28030i1AZFE..ACV41..20G..TAIW200605-200709

(J)

main13502-31061i2GRFE..GSV40200903-201207

main13502-31080i2GRFE..GSV40200605-200909

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200903

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0H020i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

(L)

main13540-28010i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

(J)

main13540-31021i2GRFE..GSV40..IDN,PHL,TH200605-200907

13540CGASKET(FOR CHAIN TENSIONER)

main13552-28010i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

13549PLATE, CHAIN TENSIONER

main13549-28012i1AZFE,2AZFE..ACV4#200605-200909

13559SLIPPER, CHAIN TENSIONER

main13559-0H020i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903

(L)

main13559-28010i2AZFE..ACV40..VN200605-200909

(J)

main13559-31020i2GRFE..GSV40..TAIW200605-200903

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0H020i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

(L)

main13561-28010i2AZFXE..AHV40200907

main13561-31021i2GRFE..GSV40..TAIW200605-200903

13565SPRING, CHAIN DAMPER

main13565-28012i2AZFXE..AHV40200907

13566BGUIDE, TIMING CHAIN

main13566-28010i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

13711VALVE, INTAKE

main13711-0H030×8i2AZFE..ACV40..VN200605-200909

(L)

main13711-28010×8i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(J)

main13711-31100×12i2GRFE..GSV40..IDN,PHL,TH200605-200907

sub13711-31101

13711BSPRING, COMPRESSION(FOR INNER)

main90501-28038×16i1AZFE..ACV41..20G..TAIW200605-200709

(J)

main90501-36007×24i2GRFE..GSV40..VN200605-200909

main90501-C0010×16i2AZFE..ACV40..VN200804-200909

(L)

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02101×8i1AZFE..ACV41..20G..TAIW200605-200709

(J)

main90913-T2001×8i1AZFE..ACV41..20G..TAIW200605-200709

(L)

13715VALVE, EXHAUST

main13715-0H040×8i1AZFE..ACV41..20G..TAIW200605-200709

(L)

main13715-28010×8i2AZFXE..AHV40200907

main13715-28040×8i1AZFE..ACV41..20G..TAIW200605-200709

(J)

main13715-31120×12i2GRFE..GSV40..TAIW200903-200906

main13715-31150×12i2GRFE..GSV40200906

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02112×8i2AZFE..ACV40..VN200605-200909

(J)

main90913-T2003×8i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

(L)

13734SEAT, VALVE SPRING

main13734-62020×24i2GRFE..GSV40200903

main13734-74010×16i1AZFE..ACV41..20G..TAIW200605-200709

13741RETAINER, VALVE SPRING

main13741-22021×16i2AZFE..ACV40..VN200605-200909

main13741-31020×24i2GRFE..GSV40..TAIW200605-200903

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i2GRFE..GSV40..IDN,PHL,TH200605-200907

13751LIFTER, VALVE

main13751-22040×16i2AZFXE..AHV40200907-201203

T=5.06

sub13751-21020

main13751-22050×16i2AZFXE..AHV40200907-201203

T=5.08

sub13751-21030

main13751-22060×16i2AZFXE..AHV40200907-201203

T=5.10

sub13751-21040

main13751-22070×16i2AZFXE..AHV40200907-201203

T=5.12

sub13751-21050

main13751-22080×16i2AZFXE..AHV40200907-201203

T=5.14

sub13751-21060

main13751-22090×16i2AZFXE..AHV40200907-201203

T=5.16

sub13751-21070

main13751-22100×16i2AZFXE..AHV40200907-201203

T=5.18

sub13751-21080

main13751-22110×16i2AZFXE..AHV40200907-201203

T=5.20

sub13751-21090

main13751-22120×16i2AZFXE..AHV40200907-201203

T=5.22

sub13751-21100

main13751-22130×16i2AZFXE..AHV40200907-201203

T=5.24

sub13751-21110

main13751-22140×16i2AZFXE..AHV40200907-201203

T=5.26

sub13751-21120

main13751-22150×16i2AZFXE..AHV40200907-201203

T=5.28

sub13751-21130

main13751-22160×16i2AZFXE..AHV40200907-201203

T=5.30

sub13751-21140

main13751-22170×16i2AZFXE..AHV40200907-201203

T=5.32

sub13751-21150

main13751-22180×16i2AZFXE..AHV40200907-201203

T=5.34

sub13751-21160

main13751-22190×16i2AZFXE..AHV40200907-201203

T=5.36

sub13751-21170

main13751-22200×16i2AZFXE..AHV40200907-201203

T=5.38

sub13751-21180

main13751-22210×16i2AZFXE..AHV40200907-201203

T=5.40

sub13751-21190

main13751-22220×16i2AZFXE..AHV40200907-201203

T=5.42

sub13751-21200

main13751-22230×16i2AZFXE..AHV40200907-201203

T=5.44

sub13751-21210

main13751-22240×16i2AZFXE..AHV40200907-201203

T=5.46

sub13751-21220

main13751-22250×16i2AZFXE..AHV40200907-201203

T=5.48

sub13751-21230

main13751-22260×16i2AZFXE..AHV40200907-201203

T=5.50

sub13751-21240

main13751-22270×16i2AZFXE..AHV40200907-201203

T=5.52

sub13751-21250

main13751-22280×16i2AZFXE..AHV40200907-201203

T=5.54

sub13751-21260

main13751-22290×16i2AZFXE..AHV40200907-201203

T=5.56

sub13751-21270

main13751-22300×16i2AZFXE..AHV40200907-201203

T=5.58

sub13751-21280

main13751-22310×16i2AZFXE..AHV40200907-201203

T=5.60

sub13751-21290

main13751-22320×16i2AZFXE..AHV40200907-201203

T=5.62

sub13751-21300

main13751-22330×16i2AZFXE..AHV40200907-201203

T=5.64

sub13751-21310

main13751-22340×16i2AZFXE..AHV40200907-201203

T=5.66

sub13751-21320

main13751-22350×16i2AZFXE..AHV40200907-201203

T=5.68

sub13751-21330

main13751-22360×16i2AZFXE..AHV40200907-201203

T=5.70

sub13751-21340

main13751-22370×16i2AZFXE..AHV40200907-201203

T=5.72

sub13751-21350

main13751-22380×16i2AZFXE..AHV40200907-201203

T=5.74

sub13751-21360

main13751-46030×16i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

T=5.06

main13751-46040×16i2AZFE..ACV40..VN200605-200909

T=5.08

main13751-46050×16i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-201207

T=5.10

main13751-46060×16i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-201207

T=5.12

main13751-46070×16i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-201207

T=5.14

main13751-46080×16i2AZFE..ACV40..VN200605-200909

T=5.16

main13751-46090×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.18

main13751-46100×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.20

main13751-46110×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.22

main13751-46120×16i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-201207

T=5.24

main13751-46130×16i2AZFE..ACV40..VN200605-200909

T=5.26

main13751-46140×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.28

main13751-46150×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.30

main13751-46160×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.32

main13751-46170×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.34

main13751-46180×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.36

main13751-46190×16i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

T=5.38

main13751-46200×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.40

main13751-46210×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.42

main13751-46220×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.44

main13751-46230×16i1AZFE..ACV41..20G..TAIW200605-200709

T=5.46

main13751-46240×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.48

main13751-46250×16i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

T=5.50

main13751-46260×16i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

T=5.52

main13751-46270×16i2AZFE..ACV40..24E..TAIW;1AZFE,2AZFE..ACV4#..20,20E,20G,24G,24V200903-201207

T=5.54

main13751-46280×16i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

T=5.56

main13751-46290×16i1AZFE..ACV41..20G..TAIW200605-200709

T=5.58

main13751-46300×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.60

main13751-46310×16i1AZFE..ACV41..20G..TAIW200605-200709

T=5.62

main13751-46320×16i1AZFE..ACV41..20G..TAIW200605-200709

T=5.64

main13751-46330×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.66

main13751-46340×16i1AZFE..ACV41..20G..TAIW200605-200709

T=5.68

main13751-46350×16i2AZFE..ACV40..VN200605-200909

T=5.70

main13751-46360×16i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

T=5.72

main13751-46370×16i1AZFE..ACV41..20G..TAIW200605-200709

T=5.74

9010510445

main90105-10445

9010906381

main90109-06381

9010908304

main90109-08304

9011606063

main90116-06063

9011910843

main90119-10843

90119T0019

main90119-T0019

9018206005

main90182-06005

91621J0612

main91621-J0612

9167180616

main91671-80616

33 parts on this diagram · 2 diagrams in section
