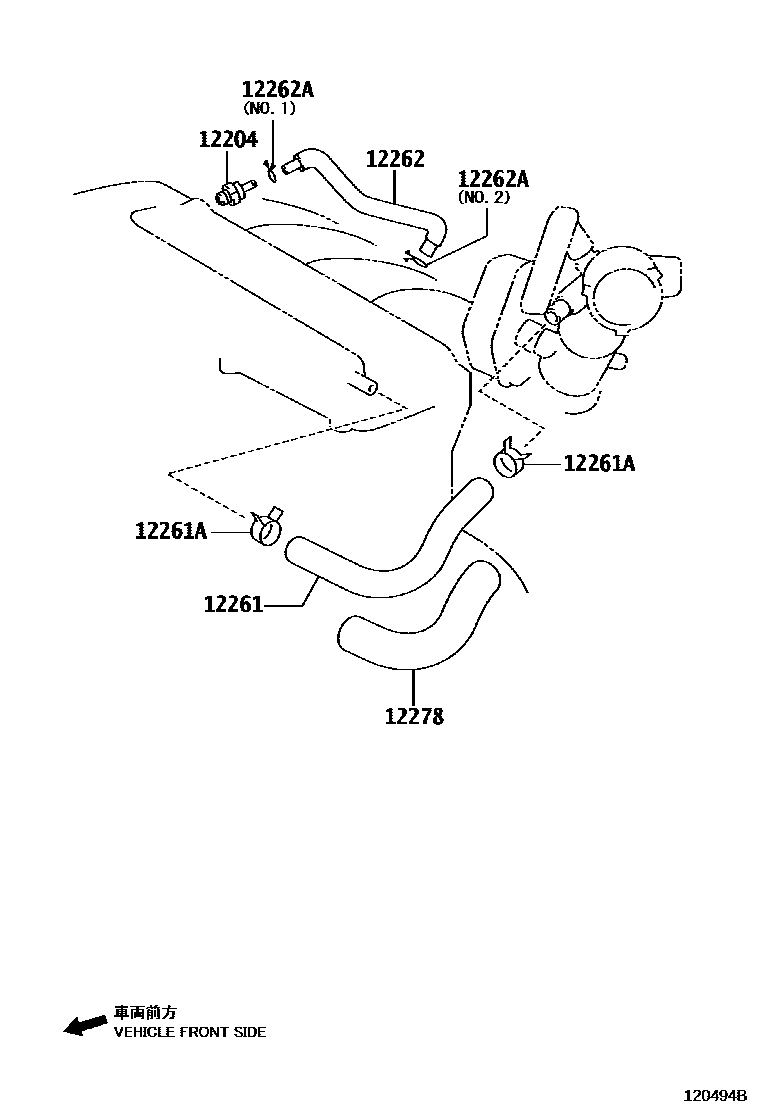

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-28020i1AZFE..ACV41..RHD200605-200907

main12204-28030i2AZFE..ACV40..IDN,MA,PHL,TH200608-200907

main12204-31040i2GRFE..GSV40200605-200903

main12204-31120i2GRFE..GSV40200903

12261HOSE, VENTILATION

main12261-0H090i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-200907

main12261-0H100i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

main12261-31070i2GRFE..GSV40..IDN,PHL,TH200605-200907

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017×2i2GRFE..GSV40..VN200605-200909

main90467-21004×2i1AZFE,2AZ#..ACV4#,AHV40201010

main96134-41900×2i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200605-200907

12262HOSE, VENTILATION, NO.2

main12262-0H020i1AZFE..ACV41..TAIW; 2AZFE..ACV40..TAIW200903-201112

(L)

main12262-0H030i2AZ#..ACV40,AHV40..IDN,MA,PHL,TH,VN200907-201207

main12262-28021i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200903

(J)

main12262-31070i2GRFE..GSV40..IDN,PHL,TH200605-200907

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i1AZFE..ACV41..20G..TAIW200605-200709

NO.1

main90467-16035i2AZFE..ACV40..VN200605-200909

NO.2

main90467-21004×2i2GRFE..GSV40..VN200605-200909

12278INSULATOR, VENTILATION HOSE HEAT

main12278-0H040i1AZFE,2AZFE..ACV4#..IDN,MA,PHL,TH200608-200907

main12278-0H050i1AZFE..ACV41..20G..TAIW200605-200709

6 parts on this diagram · 2 diagrams in section
