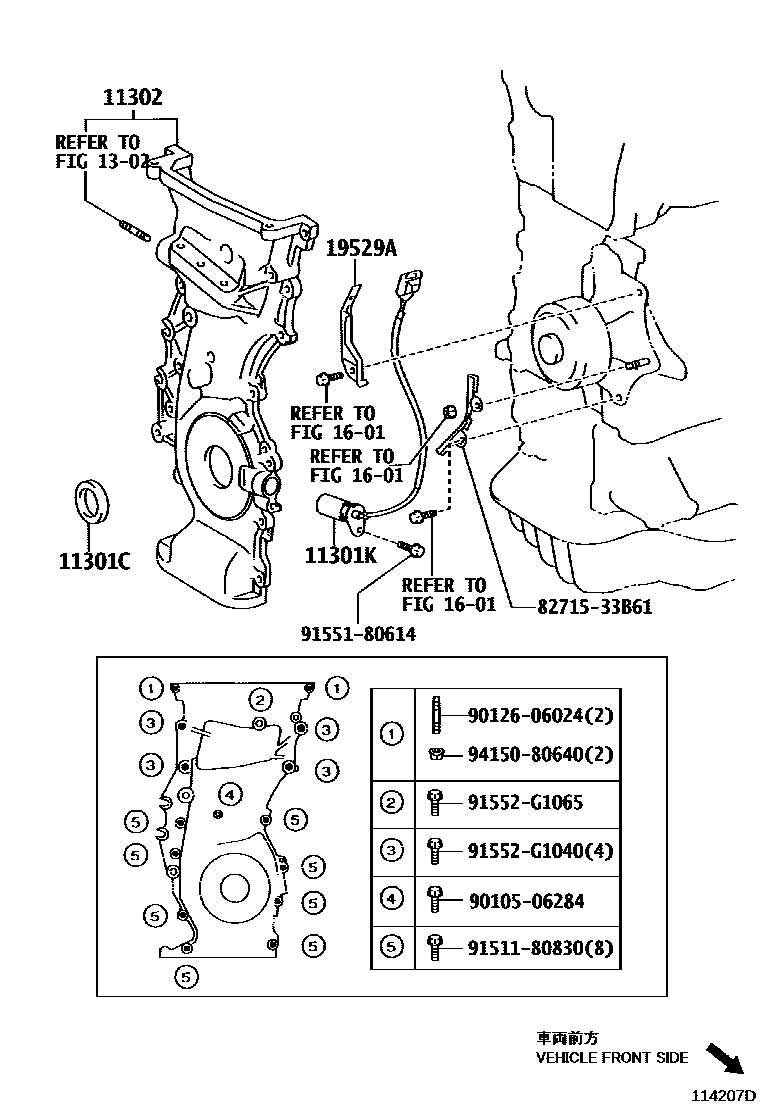

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31083i1AZFE,2AZFE..ACV4#200605-201207

main90311-38089i2AZFXE..AHV40200907-201203

main90311-42037i2GRFE..GSV40..TAIW200605-200904

sub90311-42045

main90311-42045i2GRFE..GSV40..VN200904-200909

11301KSENSOR, CRANK POSITION

main90919-05047i2AZFXE..AHV40200907

main90919-05067i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200909

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H021i1AZFE..ACV41..20G..TAIW200605-201112

(L)

main11310-0H031i2AZFE..ACV40..VN200608-201207

(L)

main11310-28071i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-201207

(J)

main11310-28071i2AZFXE..AHV40200907-201203

main11310-31020i2GRFE..GSV40..TAIW200605-200909

1302

1601

19529ACLAMP

main19529-28010i2AZFXE..AHV40200907

main19529-28050i1AZFE,2AZFE..ACV4#..(20E,24E,24G)..TAIW200605-200909

8271533B61BRACKET,WIRING HARNESS CLAMP

main82715-33B61

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

9155180614

main91551-80614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

9415080640

main94150-80640

14 parts on this diagram · 3 diagrams in section
