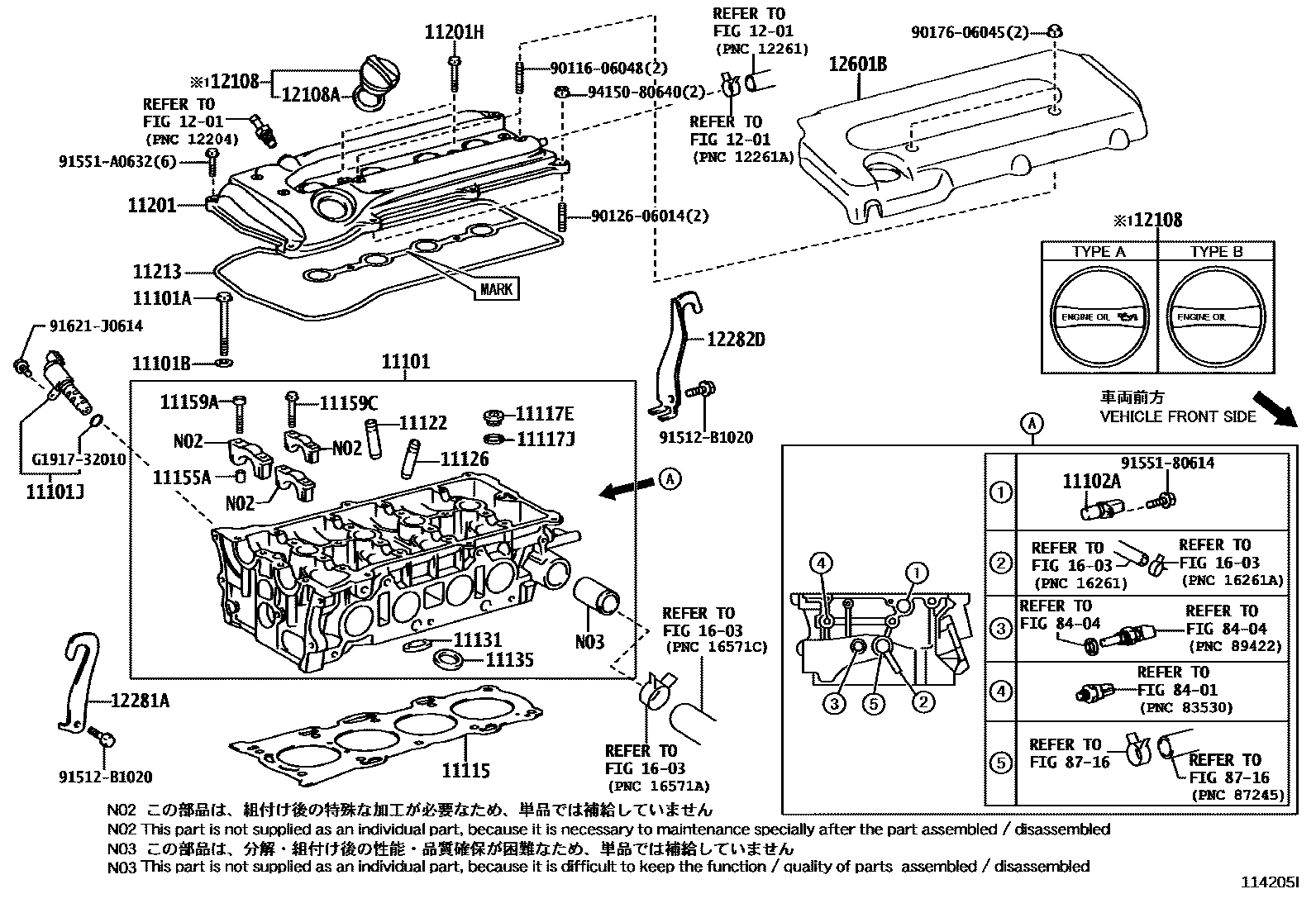

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
sub15330-28010
11102ASENSOR, CAMSHAFT POSITION
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
main11122-28010i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-200909
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD,(J)
STD,(J)
STD
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD,(J)
STD,(J)
STD
STD
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
(J)
11201HBOLT(FOR CYLINDER HEAD COVER)
main90119-06903i2AZFE..ACV40..24E..TAIW;1AZFE,2AZ#..ACV4#,AHV40..20,20E,20G,24G,24V,HBD200605-200909
11213GASKET, CYLINDER HEAD COVER
(L)
(L),MARK 11213-0H020
(L),MARK 11213-0H030
(L)
(L),MARK 11213-0H040
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(L),T/P A:REF.ILLUST
TYPE A:REFER ILLUST.
(J),T/P A:REF.ILLUST
TYPE B:REFER ILLUST.
12108AGASKET(FOR OIL FILLER CAP)
PNC 12108=TYPE A
(L),PNC 12108=TYPE A
PNC 12108=TYPE B
(J),PNC 12108=TYPE A
12282DHANGER, ENGINE, NO.2
(L)
(J)
1603
8401
8404
8716
9011606048
main90116-06048
9012606014
main90126-06014
9017606045
main90176-06045
91512B1020
main91512-B1020
9155180614
main91551-80614
91551A0632
main91551-A0632
91621J0614
main91621-J0614
9415080640
main94150-80640
G191732010
mainG1917-32010
38 parts on this diagram · 4 diagrams in section
