ENGINE OVERHAUL GASKET KIT

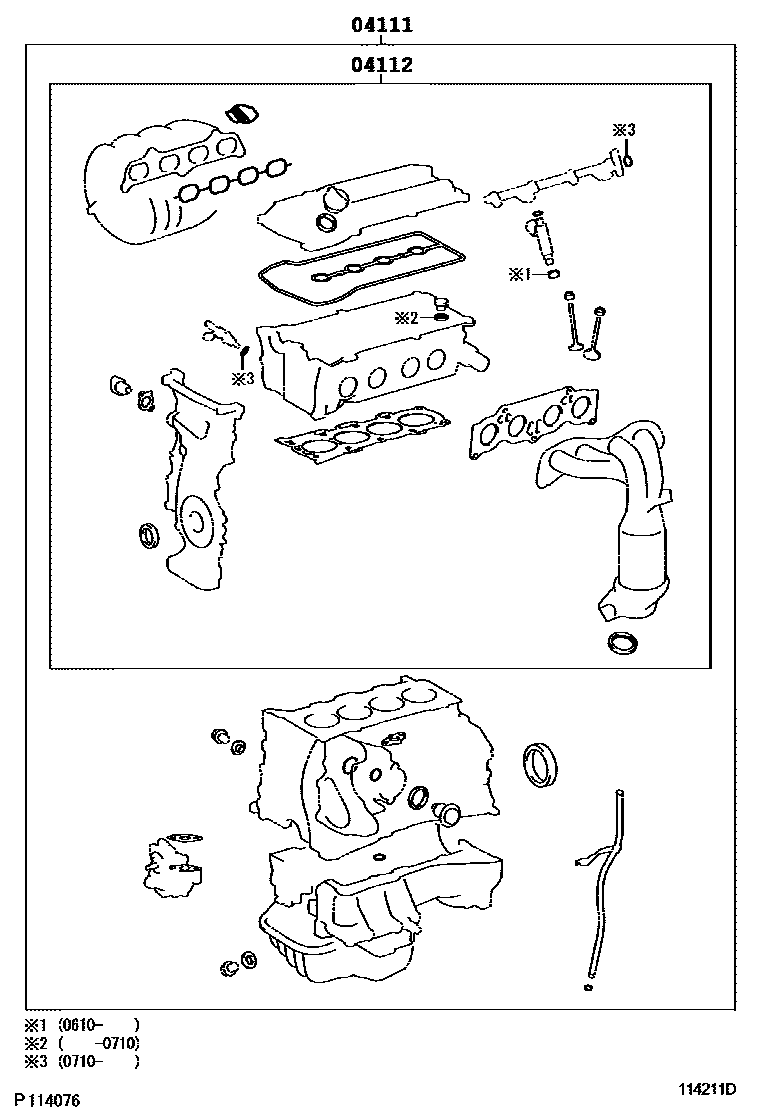

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0H280i200608-200610

main04111-0H281i200610-200710

main04111-0H282i200903-200904

main04111-0H283i200904-201111

main04111-0H284i201111-201201

main04111-0H290i200605-200610

main04111-0H291i200610-200710

main04111-0H292i200710-200904

main04111-0H293i200904-200907

main04111-0H294i201111-201201

main04111-28832i200907-201201

main04111-31440i200605-200805

main04111-31441i200805-200811

main04111-31442i200903-201108

main04111-31443i201108-201112

main04111-31444i201112-201206

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0H260i200608-200610

main04112-0H261i200610-200710

main04112-0H262i200710-200904

main04112-0H263i200904-201207

main04112-0H270i200605-200610

main04112-0H271i200610-200710

main04112-0H272i200710-200904

main04112-0H273i200904-200907

main04112-28682i200907-201201

main04112-31270i200605-200805

main04112-31271i200805-200811

main04112-31272i200811-200909

main04112-31273i201108-201112

main04112-31274i201112-201206

2 parts on this diagram · 6 diagrams in section
