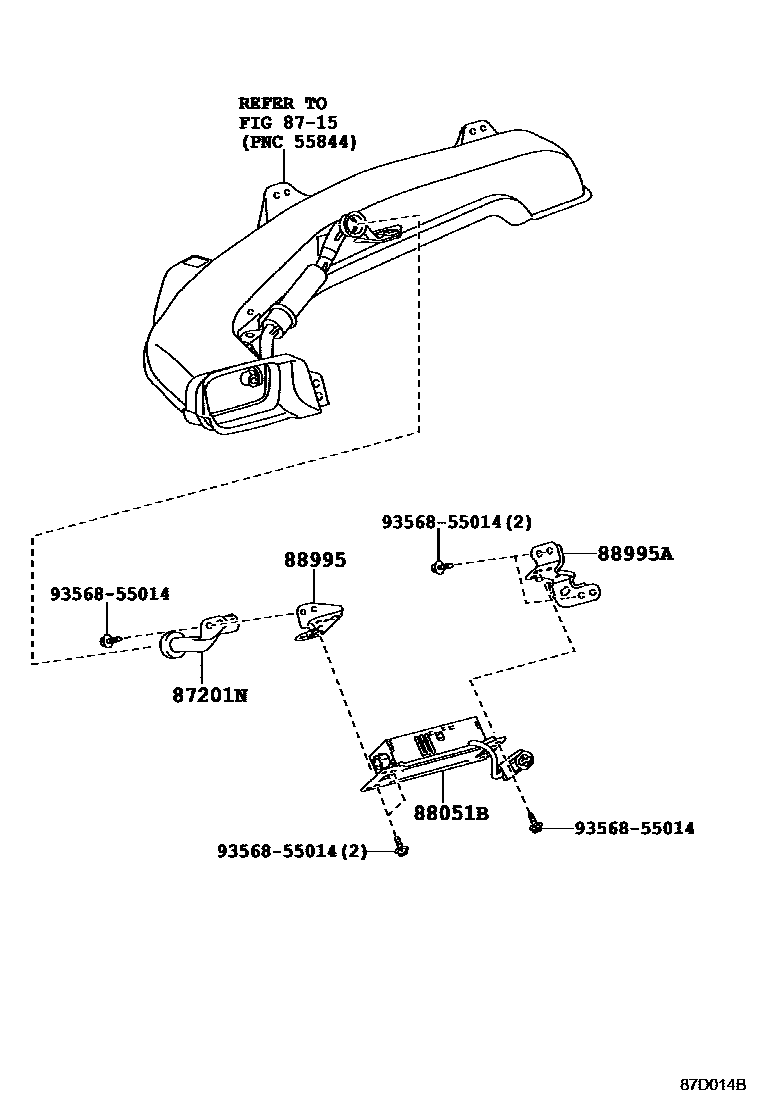

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-33020iASV60,AVV60,GSV60..CHI201206-201507

main55848-33030iASV60,AVV60,GSV60..RHD201308-201507

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-52020iASV60,AVV60,GSV60..ARL,CHI,GEN201206-201507

88995BRACKET,ION GENERATOR, NO.1

main88995-33030iASV60,AVV60,GSV60..CHI201206-201507

main88995-33050iASV60,AVV60,GSV60..RHD201308-201507

88995ABRACKET,ION GENERATOR, NO.2

main88995-33040iASV60,AVV60,GSV60..CHI201206-201507

main88995-33060iASV60,AVV60,GSV60..RHD201308-201507

9356855014

main93568-55014

6 parts on this diagram · 2 diagrams in section
