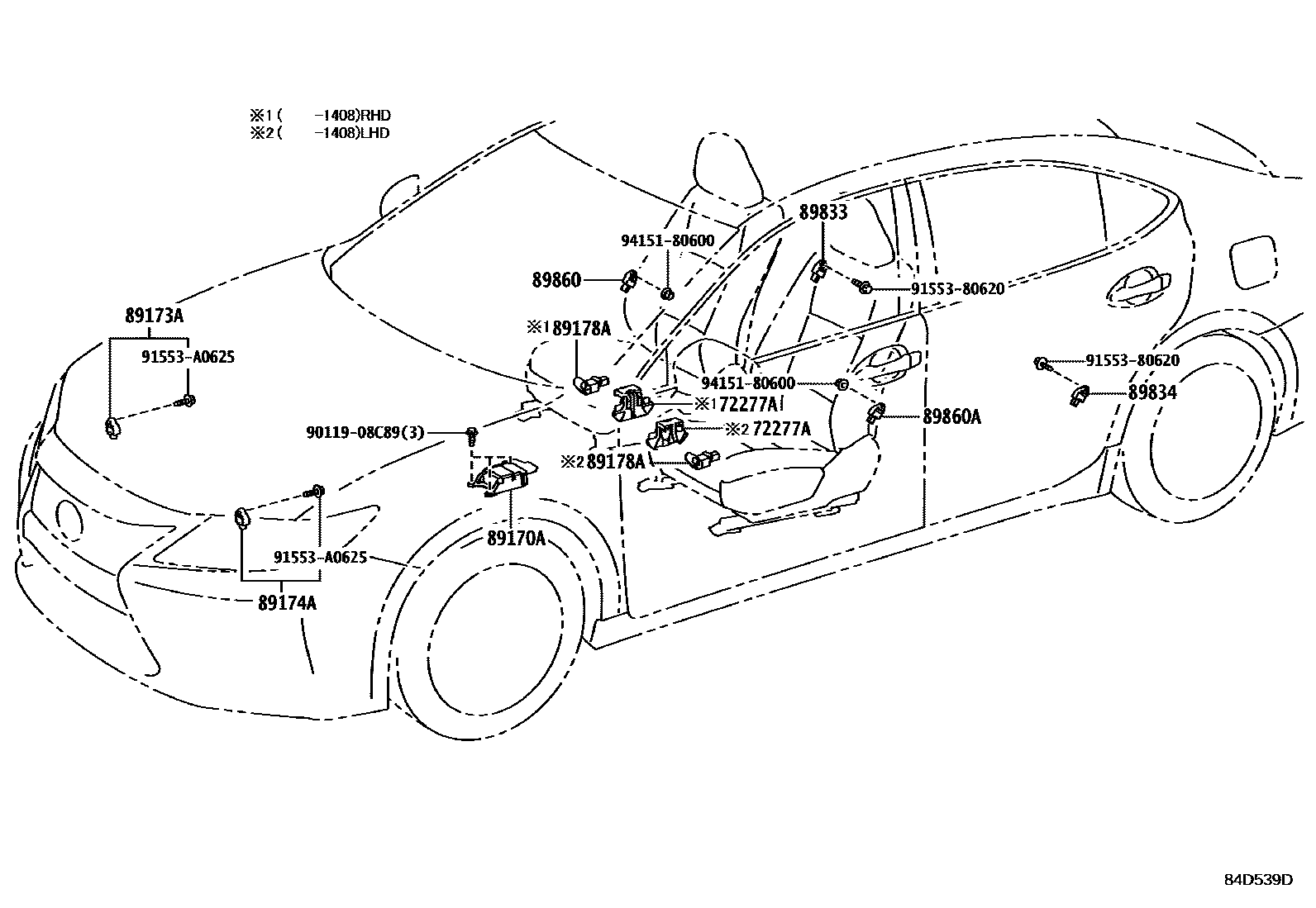

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iASV60,AVV60,GSV60201206-201408

89170ACOMPUTER ASSY, AIRBAG

main89170-33670iASV60,AVV60,GSV60..LHD201206-201408

main89170-33840iASV60,AVV60,GSV60..RHD201308-201408

main89170-33A10iASV60,AVV60,GSV60..LHD201408-201507

main89170-33A30iASV60,AVV60,GSV60..RHD201408-201507

main89170-33A60iASV6#,AVV60,GSV60..LHD201507-201806

main89170-33A70iASV60,AVV60,GSV60..RHD201507-201806

89173ASENSOR, AIRBAG, FRONT RH

main89173-39485iASV60,AVV60,GSV60201206-201507

89174ASENSOR, AIRBAG, FRONT LH

main89173-39485iASV60,AVV60,GSV60201206-201507

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iASV60,AVV60,GSV60201206-201408

89833SENSOR, AIRBAG, REAR RH

main89831-12040iASV60,AVV60,GSV60201206-201507

89834SENSOR, AIRBAG, REAR LH

main89831-12040iASV60,AVV60,GSV60201206-201507

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iASV60,AVV60,GSV60201206-201507

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iASV60,AVV60,GSV60201206-201507

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0625

main91553-A0625

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
