SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE ROOM 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1ENGINE ROOM RELAY BLOCK 0013 1ENGINE ROOM RELAY BLOCK 0014 1ENGINE ROOM RELAY BLOCK 0015 1COWL 0016 1COWL 0017 1COWL 0018 1COWL 0019 1INSTRUMENT PANEL 1/2 0020 1INSTRUMENT PANEL 1/2 0021 1INSTRUMENT PANEL 1/2 0022 1INSTRUMENT PANEL 1/2 0023 1INSTRUMENT PANEL 2/2 0024 1INSTRUMENT PANEL 2/2 0025 1STEERING 0026 1STEERING 0027 1STEERING 0028 1STEERING 0029 1SEAT 0030 1DOOR & ROOF 0031 1FLOOR & LUGGAGE

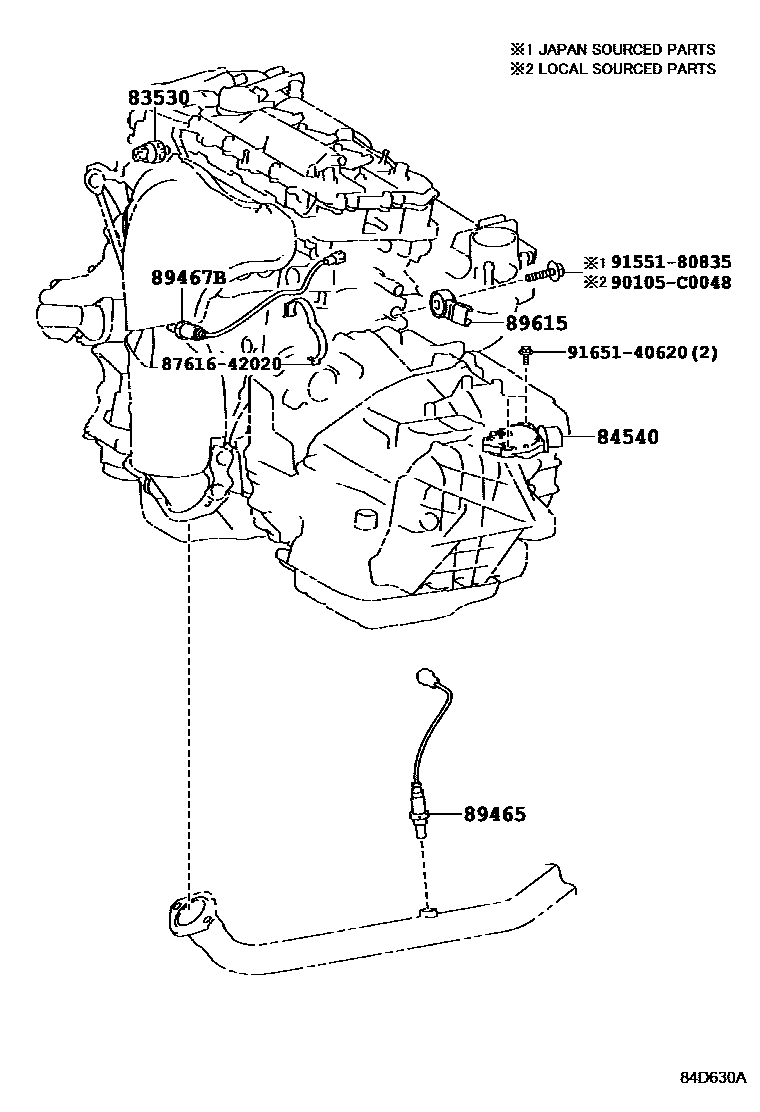

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iASV60,AVV60,GSV60201206-201507

DENSO

main83530-60020iASV60,AVV60,GSV60201206-201507

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV6#,GSV60201507

89465SENSOR, OXYGEN

main89465-33360iGSV60201507

main89465-33470iAVV60201206-201507

main89465-33560iASV6#201507

89467BSENSOR, AIR FUEL RATIO

main89467-06220iASV61201507

main89467-33220iGSV60201206-201408

main89467-48190iASV60,AVV60201206-201507

main89467-48220iGSV60201507

89615SENSOR, KNOCK CONTROL

main89615-20090×2iASV6#,AVV60; GSV60201507

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

90105C0048

main90105-C0048

9155180835

main91551-80835

9165140620

main91651-40620

9 parts on this diagram · 31 diagrams in section
