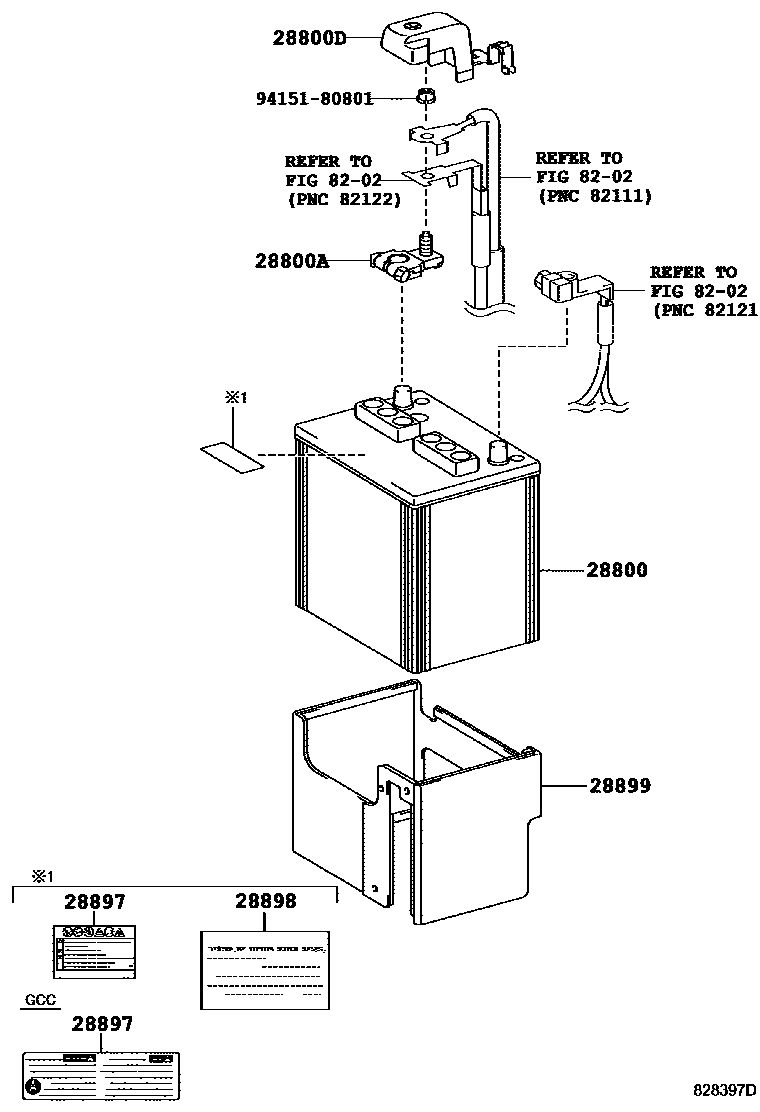

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-36050i2ARFXE..AVV60201507

S65D26R

main28800-36150i6ARFSE..ASV61201507

T-115

main28800-38080i2ARFE,2GRFE..ASV60,GSV60201507

80D26L

main28800-50080i2ARFE,2GRFE..ASV60,GSV60201206-201507

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFXE..AVV60201206-201507

main90982-05062i2ARFE,2GRFE..ASV60,GSV60201206-201507

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360supersedes 82821-33380i2ARFE,6ARFSE,2GRFE..ASV6#,GSV60201507

main82821-47110i2ARFXE..AVV60201206-201507

28897PLATE, BATTERY CAUTION

main28897-31010i2ARFE,2GRFE..ASV60,GSV60..CHI201206-201507

main28897-36030i2ARFE,2GRFE..ASV60,GSV60..GCC201608

main28897-38060i2ARFE,6ARFSE..ASV6#..CHI201803

main28897-50030i2ARFE,6ARFSE..ASV6#..CHI201507-201802

main28897-21010i2ARFXE..AVV60..CHI201206-201507

TAIWAN SPEC

28898PLATE, BATTERY

main28898-20010i2ARFE,2GRFE..ASV60,GSV60..CHI201206-201301

TAIWAN SPEC

28899INSULATOR, BATTERY

main28899-31190i2GRFE..GSV60;2ARFE..ASV60..CHI,GCC,GEN201507

main28899-31200i2ARFE,2GRFE..ASV60,GSV60..CHI; 2GRFE..GSV60;2ARFE..ASV60..CHI,GCC,GEN201206-201507

TAIWAN SPEC

main28899-36070i6ARFSE..ASV61201507

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
