ACCELERATOR LINK

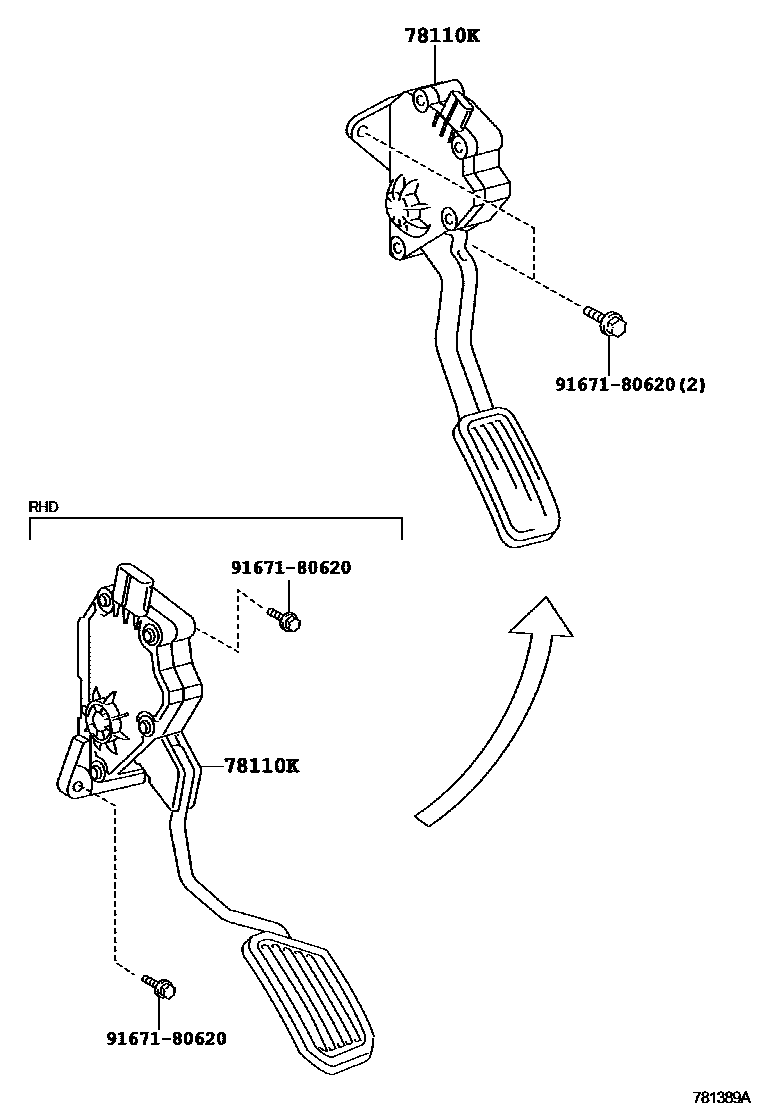

Parts diagram

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33092i201308-201507

main78110-33093i201602

main78110-33101i201206-201507

main78110-33102i201602

9167180620

main91671-80620

2 parts on this diagram · 1 diagram in section
