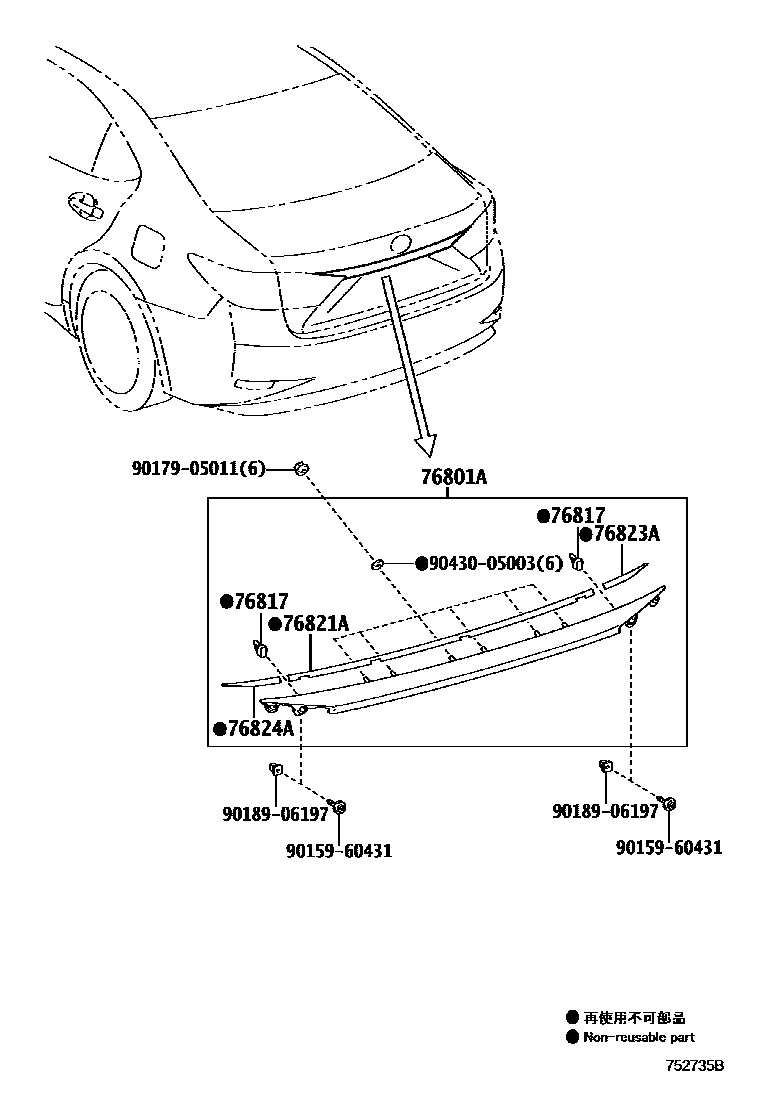

REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
main76801-33460supersedes 76801-33440iGSV60..ARL,CHI;ASV60,AVV60..RHD; GSV60..GCC;ASV60,AVV60..LHD201206-201507
PLATED; PLATED,AUDIO-EMVN & DVD & *MAR & 15SPEAKER; PLATED,AUDIO-EMVN & DVD & 8SPEAKER
PLATED; PLATED,AUDIO-EMVN & DVD & *MAR & 15SPEAKER; PLATED,AUDIO-EMVN & DVD & 8SPEAKER
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76823APROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
76824APROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
9015960431
main90159-60431
9017905011
main90179-05011
9018906197
main90189-06197
9043005003
main90430-05003
9 parts on this diagram · 2 diagrams in section
