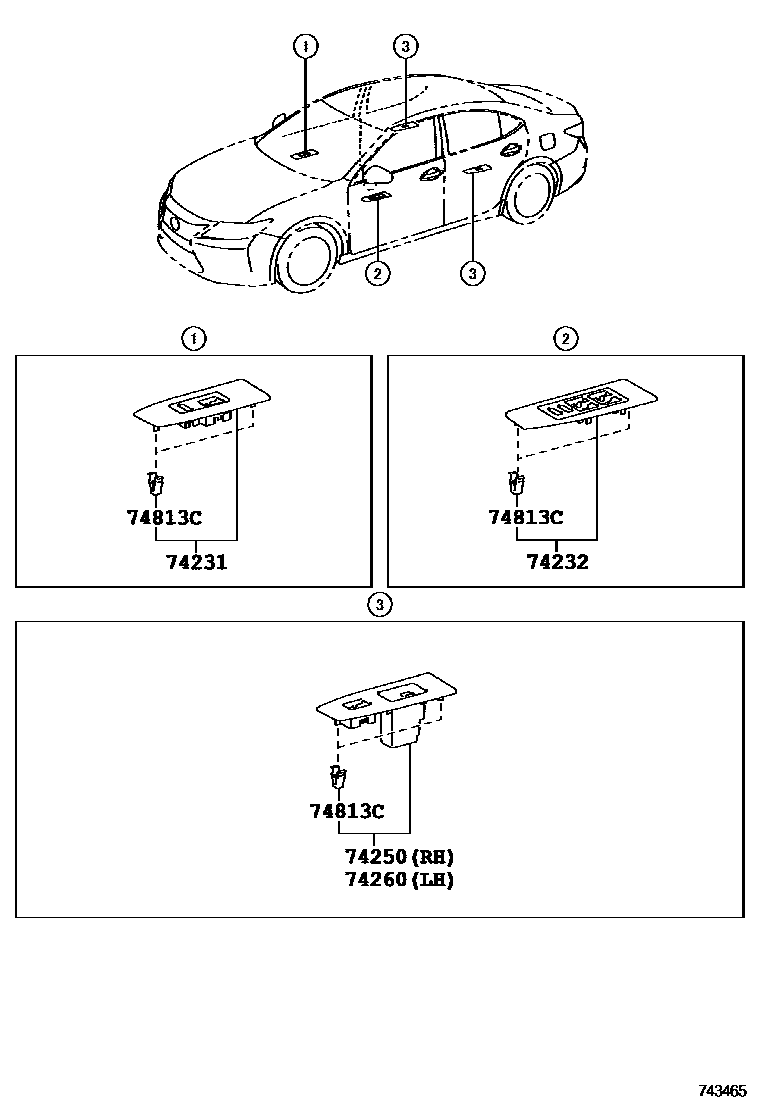

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP 0004 1ASSIST GRIP(LUGGAGE DOOR)

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-33090-A0iGSV60..LHD201206-201507

ECRU,TRIM00

main74230-33090-A1iASV60,AVV60..LHD; GSV60..LHD201206-201507

IVORY,TRIM0#; IVORY,TRIM01

main74230-33090-C0iGSV60..CHI;ASV60,AVV60..LHD; GSV60..GCC201206-201507

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

main74230-33110-A0iASV60,AVV60,GSV60..RHD201308-201507

IVORY,TRIM0#

main74230-33110-C0iASV60,AVV60,GSV60..RHD201308-201507

BLACK,TRIM1#,2#

main74230-33120iASV6#,AVV60,GSV60..LHD201507

main74230-33130iASV60,AVV60,GSV60..RHD201507

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74240-33100-A0iGSV60..LHD201206-201507

ECRU,TRIM00

main74240-33100-A1iASV60,AVV60..LHD; GSV60..LHD201206-201507

IVORY,TRIM0#; IVORY,TRIM01

main74240-33100-C0iGSV60..CHI;ASV60,AVV60..LHD; GSV60..GCC201206-201507

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

main74240-33120-A0iASV60,AVV60,GSV60..RHD201308-201507

IVORY,TRIM0#

main74240-33120-C0iASV60,AVV60,GSV60..RHD201308-201507

BLACK,TRIM1#,2#

main74240-33130iASV6#,AVV60,GSV60..LHD201507

main74240-33140iASV60,AVV60,GSV60..RHD201507

74250ARMREST ASSY, REAR RH

main74250-33120-A0iGSV60..LHD201206-201507

ECRU,TRIM00

main74250-33120-A1iASV60,AVV60..CHI,GCC,GEN; GSV60..LHD201206-201507

IVORY,TRIM0#; IVORY,TRIM01

main74250-33120-C0iGSV60..CHI;ASV60,AVV60..CHI,GCC,GEN; GSV60..GCC201206-201507

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

main74250-33150iASV6#,AVV60,GSV60..CHI,GCC,GEN201507

main74270-33100-A1iASV60,AVV60,GSV60..ARL201308-201507

IVORY,TRIM0#

main74270-33100-C0iASV60,AVV60,GSV60..ARL201308-201507

BLACK,TRIM1#,2#

main74270-33140iASV60,AVV60,GSV60..ARL201507

74260ARMREST ASSY, REAR LH

main74260-33120-A0iGSV60..LHD201206-201507

ECRU,TRIM00

main74260-33120-A1iASV60,AVV60..CHI,GCC,GEN; GSV60..LHD201206-201507

IVORY,TRIM0#; IVORY,TRIM01

main74260-33120-C0iGSV60..CHI;ASV60,AVV60..CHI,GCC,GEN; GSV60..GCC201206-201507

BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#

main74260-33160iASV6#,AVV60,GSV60..CHI,GCC,GEN201507

main74280-33100-A1iASV60,AVV60,GSV60..ARL201308-201507

IVORY,TRIM0#

main74280-33100-C0iASV60,AVV60,GSV60..ARL201308-201507

BLACK,TRIM1#,2#

main74280-33140iASV60,AVV60,GSV60..ARL201507

74813CCLIP

main90467-10203×8iASV60,AVV60,GSV60201206-201507

5 parts on this diagram · 4 diagrams in section
