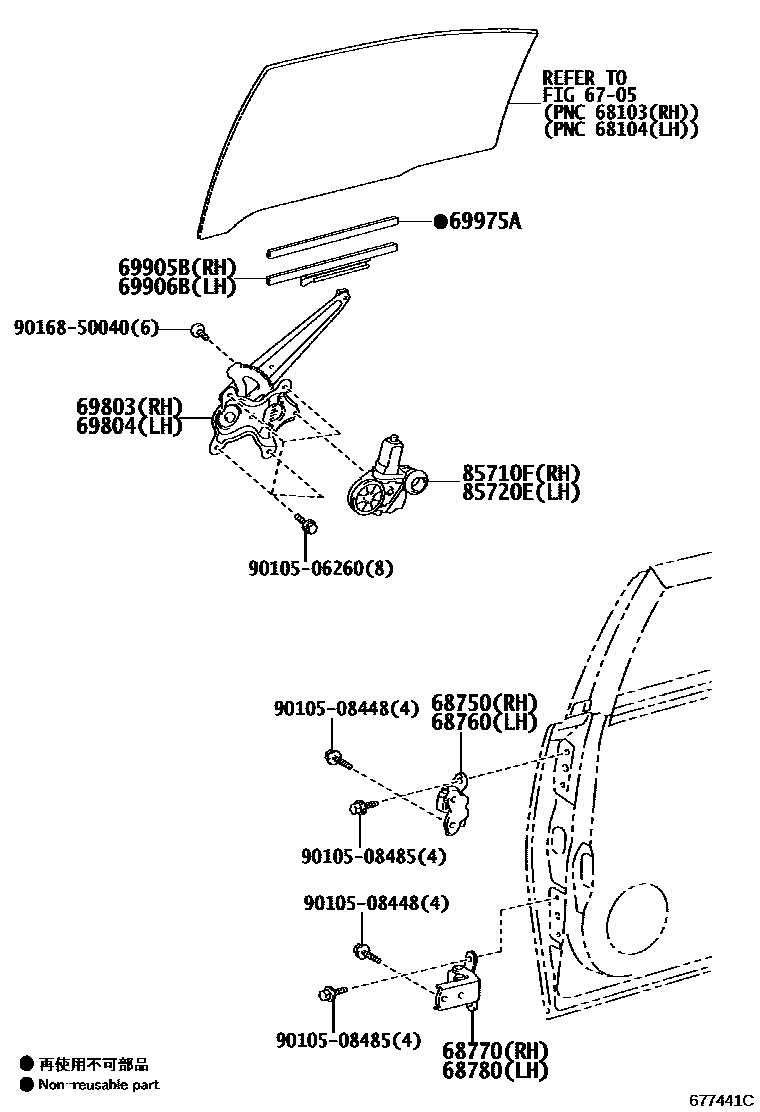

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iASV60,AVV60,GSV60201206-201207

main68750-20122iASV60,AVV60,GSV60201207-201507

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iASV60,AVV60,GSV60201206-201207

main68760-20122iASV60,AVV60,GSV60201207-201507

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iASV60,AVV60,GSV60201206-201507

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iASV60,AVV60,GSV60201206-201507

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52080iASV60,AVV60,GSV60201206-201507

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52090iASV60,AVV60,GSV60201206-201507

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iASV60,AVV60,GSV60201206-201507

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iASV60,AVV60,GSV60201206-201507

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60040×2iASV60,AVV60,GSV60201206-201507

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-33270iASV60,AVV60,GSV60201206-201302

main85720-33271iASV60,AVV60,GSV60201303-201507

main85720-33281iASV6#,AVV60,GSV60201507

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-33270iASV60,AVV60,GSV60201206-201302

main85710-33271iASV60,AVV60,GSV60201303-201507

main85710-33281iASV6#,AVV60,GSV60201507

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
