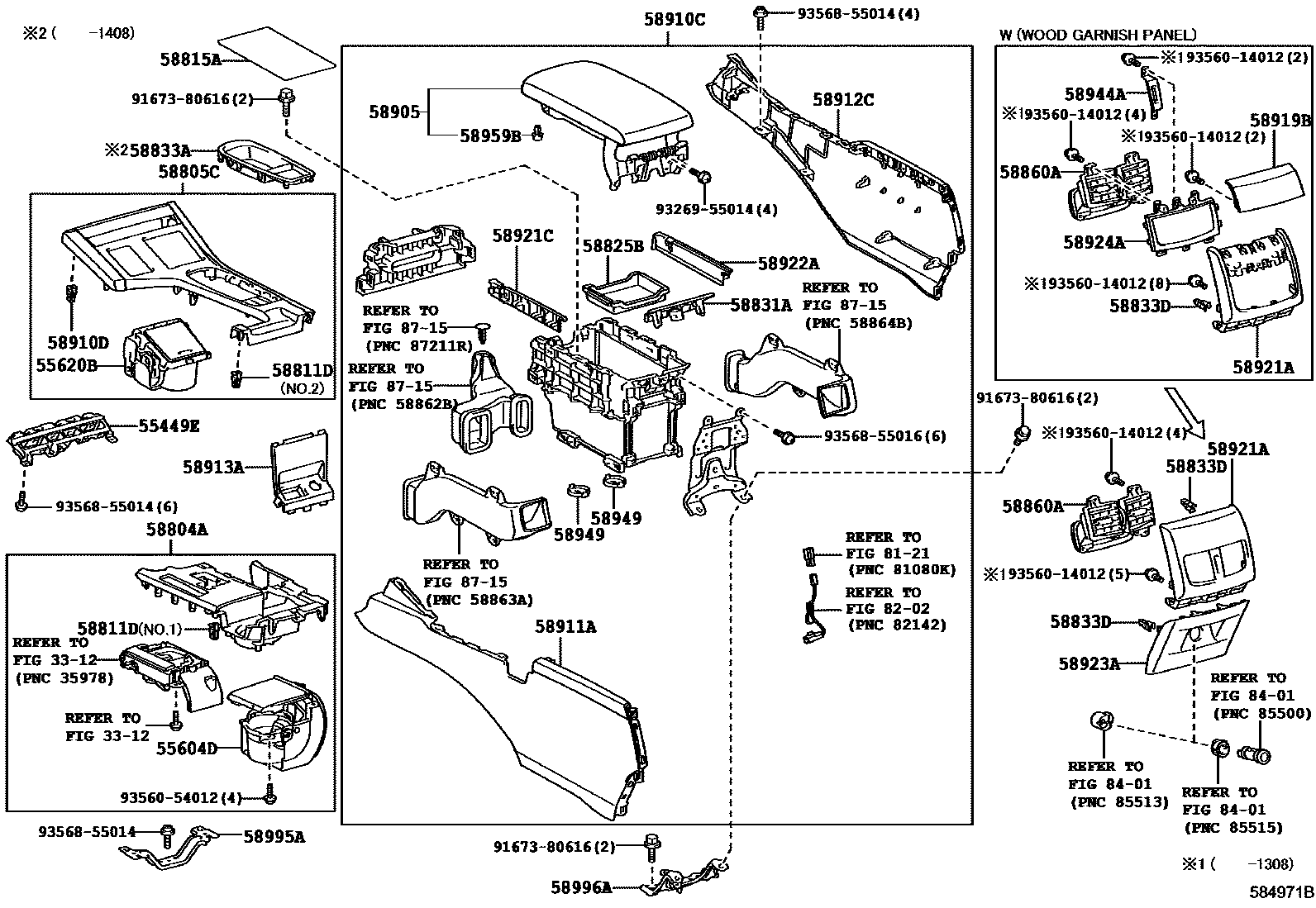

CONSOLE BOX & BRACKET
3312
55449EBASE, SWITCH
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&DOOR TRIM ORNAMENT-WOOD(BAMBOO &ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & WOOD&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
B PACKAGE
B PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL
C PACKAGE
D PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&AIR CONDITIONER-3ZONE INDEPENDENTCONTROL
55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
BLACK METALLIC,TRIM0#,1#,2#,4#,5#
BLACK METALLIC,TRIM0#,1#,2#,5#
BLACK METALLIC,TRIM0#,1#,2#,5#
55620BHOLDER, INSTRUMENT PANEL CUP
ECRU,TRIM00
IVORY,TRIM01
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM41,5#
IVORY,TRIM0#
BLACK,TRIM1#,2#
TOPAZ BROWN,TRIM5#
58804APANEL SUB-ASSY, CONSOLE, UPPER
sub58804-33731
sub58804-33732
sub58804-33733
sub58804-33771
sub58804-33772
sub58804-33773
BK METALLIC/NOBLE BROWN,TRIM0#,41,5#
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BK METALLIC/BLACK,TRIM1#,2#,40
BK METALLIC/BLACK,TRIM1#,2#
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BLACK METALLIC/BLACK,TRIM1#,2#
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BK METALLIC/BLACK,TRIM1#,2#
BK METALLIC/NOBLE BROWN,TRIM0#,5#
BLACK METALLIC/BLACK,TRIM1#,2#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
ECRU,TRIM00
IVORY,TRIM01
IVORY,TRIM0#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&CUP HOLDER(CENTERCONSOLE)-WOOD(BIRDS EYE MAPLE),BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&CUP HOLDER(CENTER CONSOLE)-WOOD(BAMBOO),BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#,40
BLACK,TRIM1#,2#
TOPAZ BROWN,TRIM41,5#
TOPAZ BROWN,TRIM5#
IVORY/IVORY,TRIM0#
BLACK/BLACK,TRIM1#,2#
TOPAZ BROWN/TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
BLACK,TRIM1#,2#
58811DCLIP(FOR CONSOLE BOX)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
58815ACARPET, CONSOLE BOX
58825BPOCKET, CONSOLE BOX
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
58833ACOVER, CONSOLE, UPPER
AUDIO-EMVN & DVD & 8SPEAKER,IVORY,TRIM0#
AUDIO-EMVN & DVD & *MAR & 15SPEAKER,IVORY,TRIM0#
AUDIO-EMV-AUDIO & DVD & 8SPEAKER,IVORY,TRIM0#
IVORY,TRIM0#
AUDIO-EMVN & DVD & *MAR & 15SPEAKER,BLACK,TRIM1#,2#
AUDIO-EMVN & DVD & *MAR & 15SPEAKER,BLACK,TRIM1#,2#,3#
AUDIO-EMVN & DVD & 8SPEAKER,BLACK,TRIM1#,2#
AUDIO-EMVN & DVD & 8SPEAKER,BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
AUDIO-EMV-AUDIO & DVD & 8SPEAKER,BLACK,TRIM1#,2#,3#
58833DCLIP(FOR CONSOLE COVER)
58860AREGISTER ASSY, CONSOLE BOX
ECRU,TRIM00
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM00,01,02,03
IVORY,TRIM0#
IVORY,TRIM00,01,02,03
IVORY,TRIM01
BLACK,TRIM0#,1#,2#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM0#,1#,2#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM0#,1#,2#
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM0#,1#,2#
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM0#,1#,2#
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM0#,1#,2#
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM0#,1#,2#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM0#,1#,2#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM0#,1#,2#
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEATHEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM0#,1#,2#
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM0#,1#,2#
TAIWAN SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM0#,1#,2#
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM00,01,02,03,1#,2#,50,51,52,53
BLACK,TRIM1#,2#,40
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM00,01,02,03,1#,2#,50,51,52,53
BLACK,TRIM1#,2#,3#
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM0#,1#,2#
SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM0#,1#,2#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM50,51,52,53
TOPAZ BROWN,TRIM41,5#
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM50,51,52,53
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
IVORY,TRIM01
ECRU,TRIM00
MOON STONE,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#,40
BLACK/CRIMSON,TRIM3#
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM41,5#
58910CBOX ASSY, CONSOLE, REAR
58910DCLIP(FOR CONSOLE BOX)
58911APANEL, BOX SIDE, NO.1
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM01
IVORY,TRIM0#
TAIWAN SPEC&H PACKAGE,IVORY,TRIM01
IVORY,TRIM01
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,40
ORCHID BROWN,TRIM00
NOBLE BROWN/TOPAZ BROWN,TRIM5#
NOBLE BROWN/TOPAZ BROWN,TRIM41,5#
NOBLE BROWN/IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM1#,2#
NOBLE BROWN/TOPAZ BROWN,TRIM5#
NOBLE BROWN/IVORY,TRIM0#
58912CPANEL, BOX SIDE, NO.2
IVORY,TRIM0#
TAIWAN SPEC&H PACKAGE,IVORY,TRIM01
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM01
IVORY,TRIM01
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40
ORCHID BROWN,TRIM00
NOBLE BROWN/TOPAZ BROWN,TRIM5#
NOBLE BROWN/TOPAZ BROWN,TRIM41,5#
NOBLE BROWN/IVORY,TRIM0#
IVORY,TRIM0#
BLACK,TRIM1#,2#
NOBLE BROWN/TOPAZ BROWN,TRIM5#
NOBLE BROWN/IVORY,TRIM0#
58913APANEL, BOX, NO.3
58919BPLATE, CONSOLE BOX
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEATHEATER-WITHOUT(WIND(*DRP))
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP))
BROWN(BAMBOO),TRIM02,12,22,52
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BROWN(BAMBOO),TRIM02,12,22,52
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,DK.BROWN(EBONY),TRIM03,13,23,53
DK.BROWN(EBONY),TRIM03,13,23,53
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,DK.BROWN(WOOD),TRIM01,11,21,51
DK.BROWN(WOOD),TRIM01,11,21,51
58921APANEL, REAR CONSOLE, UPPER
ECRU,TRIM00
IVORY,TRIM0#
IVORY,TRIM01
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40
TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM41,5#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM01
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEATHEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
TAIWAN SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
IVORY,TRIM0#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM01
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM01
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM01
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM1#,2#
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM1#,2#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM1#,2#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM1#,2#
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM1#,2#
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM1#,2#
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM1#,2#
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM1#,2#
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM1#,2#
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEATHEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM1#,2#
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM1#,2#
TAIWAN SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM1#,2#
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM1#,2#
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM1#,2#
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
TOPAZ BROWN,TRIM5#
58921CPLATE, BOX, UPPER NO.1
58922APLATE, BOX, UPPER NO.2
58923APANEL, CONSOLE REAR END
IVORY,TRIM0#
IVORY,TRIM01
BLACK,TRIM1#,2#,40
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,3#
ORCHID BROWN,TRIM00
NOBLE BROWN,TRIM0#,41,5#
NOBLE BROWN,TRIM0#,5#
IVORY,TRIM0#
BLACK,TRIM1#,2#
NOBLE BROWN,TRIM0#,5#
58924APANEL, CONSOLE REAR END, NO.2
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP))
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEATHEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
58944ACOVER, CONSOLE, REAR
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
C PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)
B PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)
G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
D PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEATHEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&G PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP))
TAIWAN SPEC&SEAT HEATER-WITHOUT(WIND(*DRP))
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL
58949PLATE, CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121
8202
8401
8715
9167380616
main91673-80616
9326955014
main93269-55014
9356014012
main93560-14012
9356054012
main93560-54012
9356855014
main93568-55014
9356855016
main93568-55016
40 parts on this diagram · 4 diagrams in section
