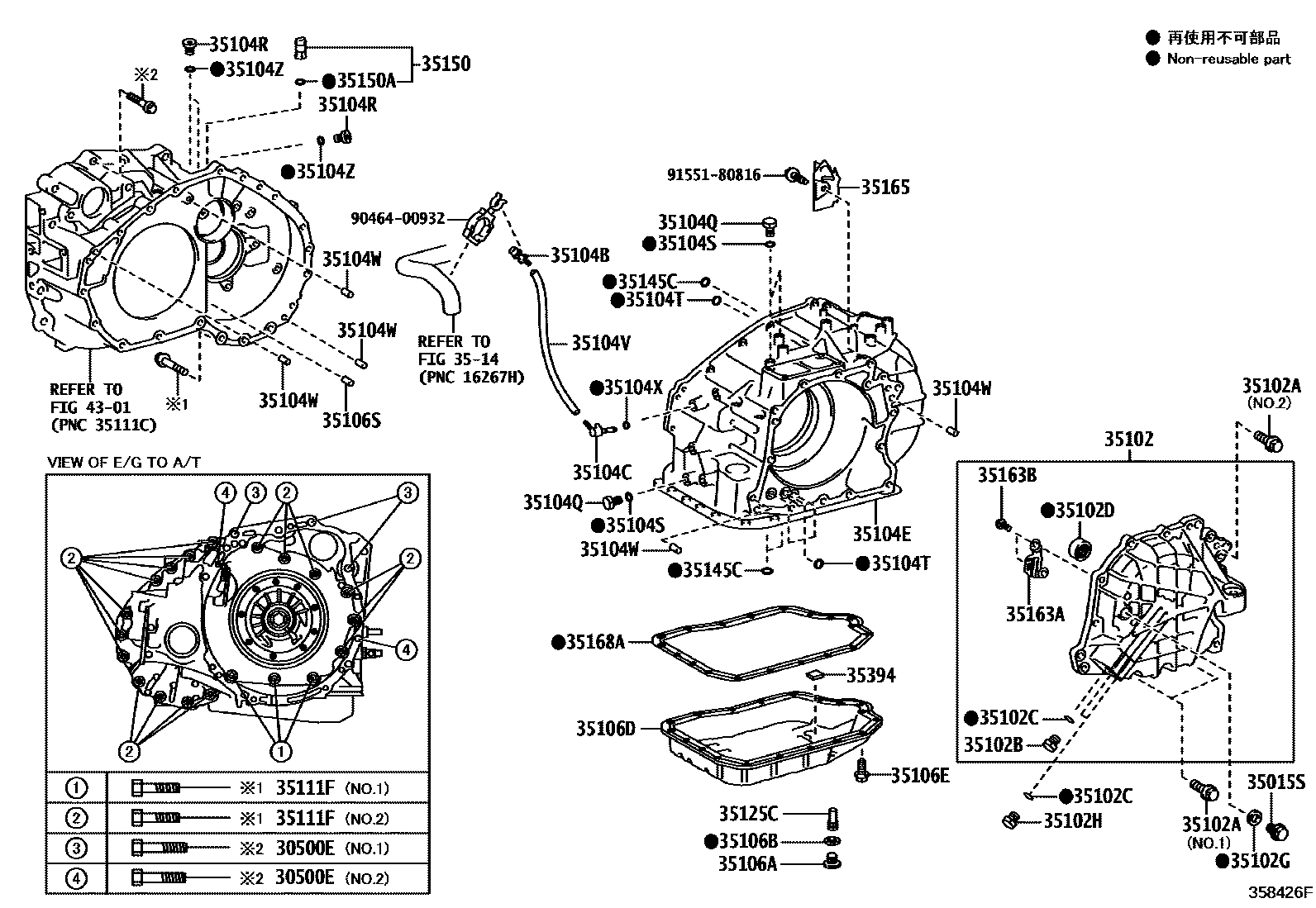

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U760E 0002 1U660E 0003 1U761E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSV60201206-201507

*10-1.25PX41-28,NO.3

main90119-12168×3iASV60; GSV60201206-201507

*12-1.25PX55-30,NO.1

main90119-12250iGSV60201206-201507

*12-1.25PX50-30,NO.2

main91512-61050×2iASV60201206-201507

*10-1.25PX50-30,NO.2

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASV60,GSV60201206-201507

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33060iGSV60201206-201309

main35102-33061iGSV60201507

main35102-33091iASV61201507

main35102-73010iASV60201206-201308

main35102-73011iASV60201507

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iASV60,GSV60201206-201507

*8-1.25PX28-22,NO.1

main91551-00828×12iASV60,GSV60201206-201507

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iASV60,GSV60201206-201507

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iASV60,GSV60201206-201507

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iASV60,GSV60201206-201507

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iASV60,GSV60201206-201507

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iASV60,GSV60201206-201507

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iASV60,GSV60201206-201507

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iASV60,GSV60201206-201507

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-33072iGSV60201206-201402

main35141-33073iGSV60201507

main35141-33180iASV61201507

main35141-73010iASV60201206-201405

main35141-73011iASV60201405-201507

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iASV60,GSV60201206-201507

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iASV60,GSV60201206-201507

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iASV60,GSV60201206-201507

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iASV60,GSV60201206-201507

35104VHOSE (FOR BREATHER PLUG)

main35121-33051iASV61201507

main35121-73010iASV60,GSV60201206-201312

main35121-73011iASV60,GSV60201507

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASV60,GSV60201206-201507

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iASV6#,GSV60201507

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iASV60,GSV60201206-201507

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASV60,GSV60201206-201507

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASV6#,GSV60201507

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33061iGSV60201206-201310

main35106-48010iGSV60201310-201502

main35106-48011iGSV60201507

main35106-73010iASV60201206-201507

main35106-73021iASV61201507

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iASV60; GSV60201206-201507

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iASV6#,GSV60201507

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iASV6#,GSV60201507

*8-1.25PX45-22,NO.1

main91551-10845×17iASV60,GSV60201206-201507

*8-1.25PX45-22,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33100iASV61201507

main35125-33130iGSV60201507

main35125-73010iASV60201206-201507

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35145CGASKET, TRANSAXLE CASE

main35145-33010iASV60; GSV60201206-201507

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASV60201206-201507

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iASV60201206-201507

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iASV60,GSV60201206-201507

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iASV60,GSV60201206-201507

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010iASV6#201507

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080iGSV60201507

main35168-73010iASV60201206-201507

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iASV60201206-201402

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9046400932

main90464-00932

9155180816

main91551-80816

39 parts on this diagram · 3 diagrams in section
