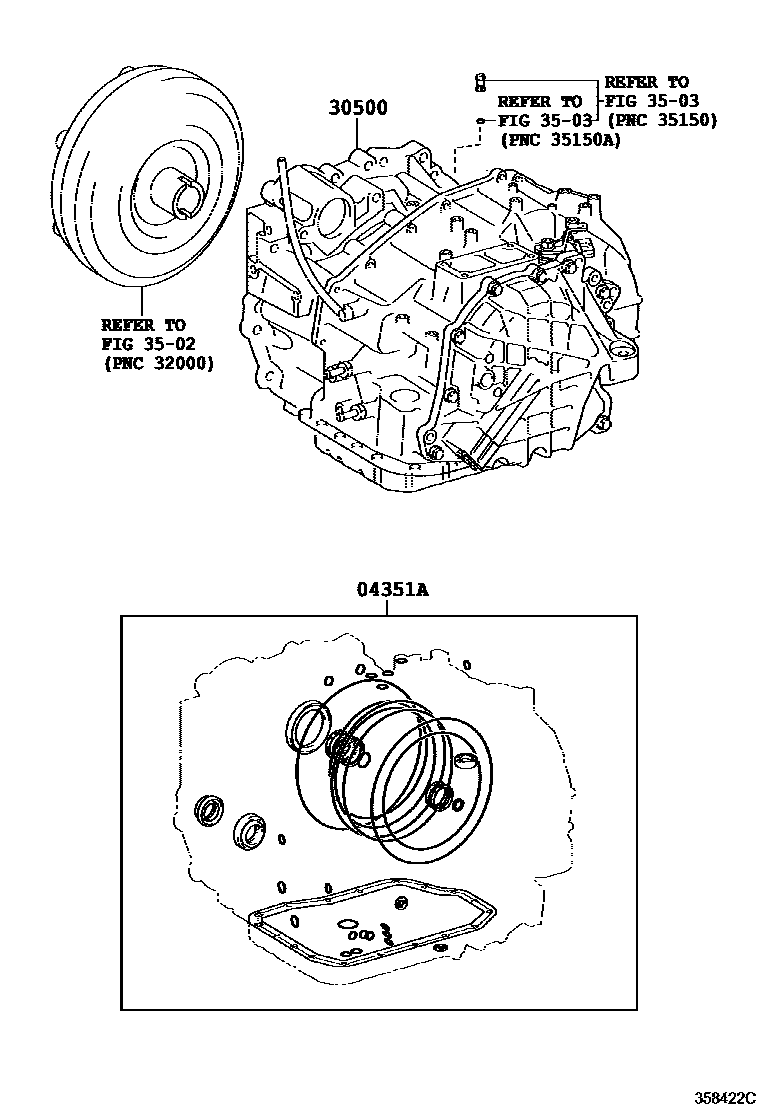

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U760E 0002 1U660E 0003 1U761E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33401iGSV60201206-201212

main04351-33402iGSV60201212-201507

main04351-33560iASV61201507

main04351-48182iASV60201206-201212

main04351-48183iASV60201212-201507

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33600iASV60201206-201403

U760E

main30500-33601iASV60201403-201409

U760E

main30500-33602iASV60201507

U760E

main30500-33640iGSV60201206-201402

U660E

main30500-33641iGSV60201402-201507

U660E

main30500-33750iASV61201507

U761E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 3 diagrams in section
