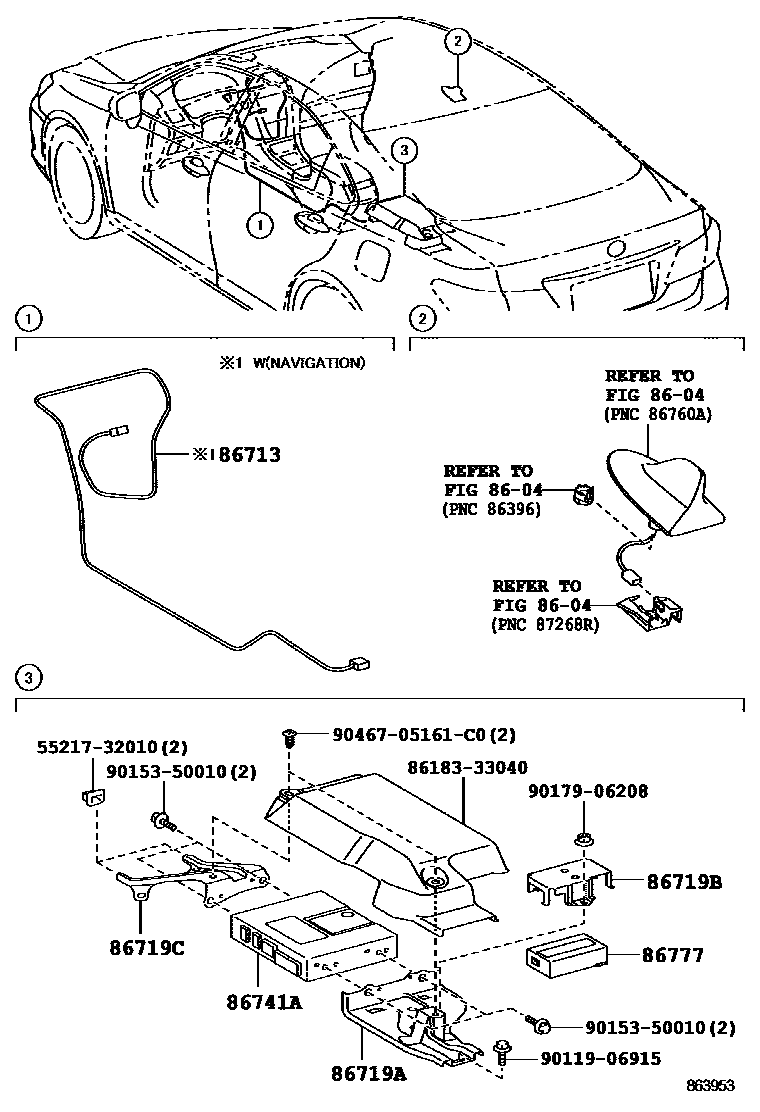

TELEPHONE & MAYDAY
8604ANTENNA
86713WIRE, TELEPHONE COMPUTER
AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP
86719ABRACKET, TELEPHONE NO.1
AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; AUDIO-AM/FM 6CD-CHANGER 8SP; RUSSIA SPEC; TAIWAN SPEC; TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP
86719BBRACKET, TELEPHONE NO.2
AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; AUDIO-AM/FM 6CD-CHANGER 8SP; RUSSIA SPEC; TAIWAN SPEC; TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP
86719CBRACKET, TELEPHONE NO.3
AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; AUDIO-AM/FM 6CD-CHANGER 8SP; RUSSIA SPEC; TAIWAN SPEC; TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP
86741ATRANSCEIVER, TELEMATICS
AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; AUDIO-AM/FM 6CD-CHANGER 8SP; RUSSIA SPEC; TAIWAN SPEC; TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP
86777BATTERY, MAYDAY
AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; AUDIO-AM/FM 6CD-CHANGER 8SP; RUSSIA SPEC; TAIWAN SPEC; TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP; TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
8618333040COVER, AUDIO RACK
main86183-33040
9011906915
main90119-06915
9015350010
main90153-50010
9017906208
main90179-06208
9046705161C0
main90467-05161C0
13 parts on this diagram · 1 diagram in section
