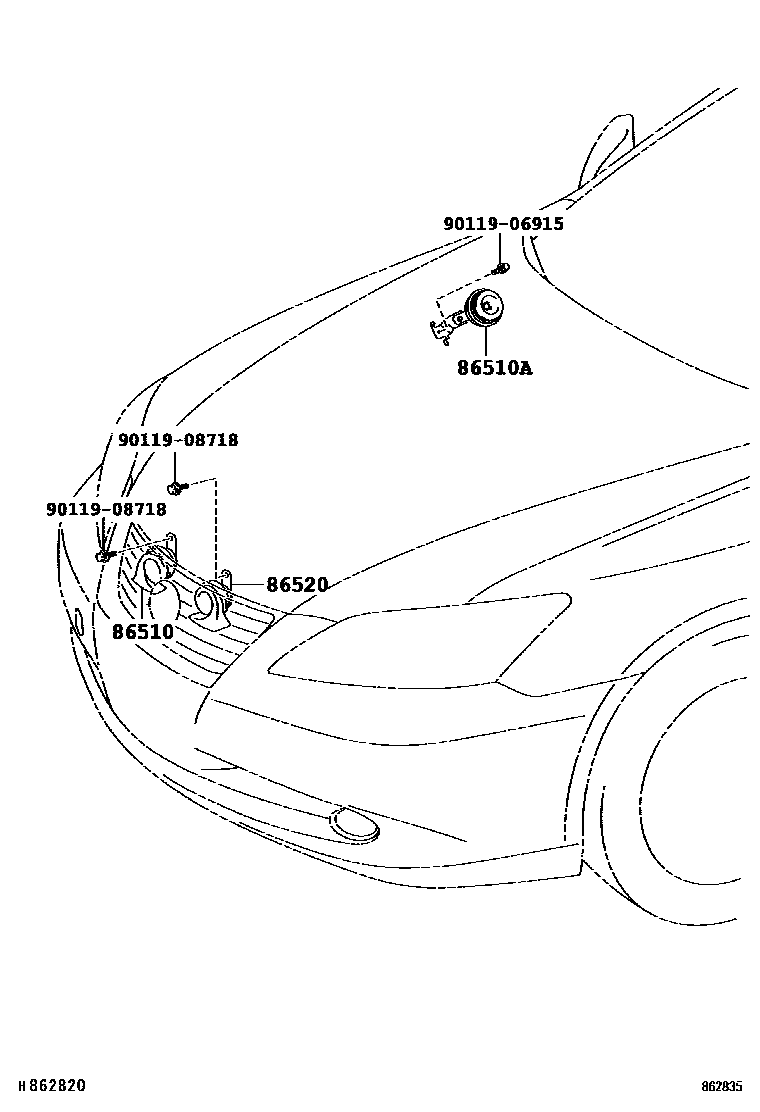

HORN

86510HORN ASSY, HIGH PITCHED

main86510-48150iGSV40..GCC201108-201206

main86510-60240iGSV40..GCC200908-201108

main86510-33230supersedes 86510-30691iACV40,GSV40..CHI; GSV40..CHI200908-201206

RUSSIA SPEC; TAIWAN SPEC

main86510-48050iACV40; GSV40..CHI201008-201206

RUSSIA SPEC; TAIWAN SPEC

86510AHORN ASSY, SECURITY

main86560-33010iACV40,GSV40200908

86520HORN ASSY, LOW PITCHED

main86520-48110iGSV40..GCC201108-201206

main86520-60200iGSV40..GCC200908-201108

main86520-33170iACV40,GSV40..CHI; GSV40..CHI200908-201206

RUSSIA SPEC; TAIWAN SPEC

main86520-48030iACV40; GSV40..CHI201008-201206

RUSSIA SPEC; TAIWAN SPEC

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
