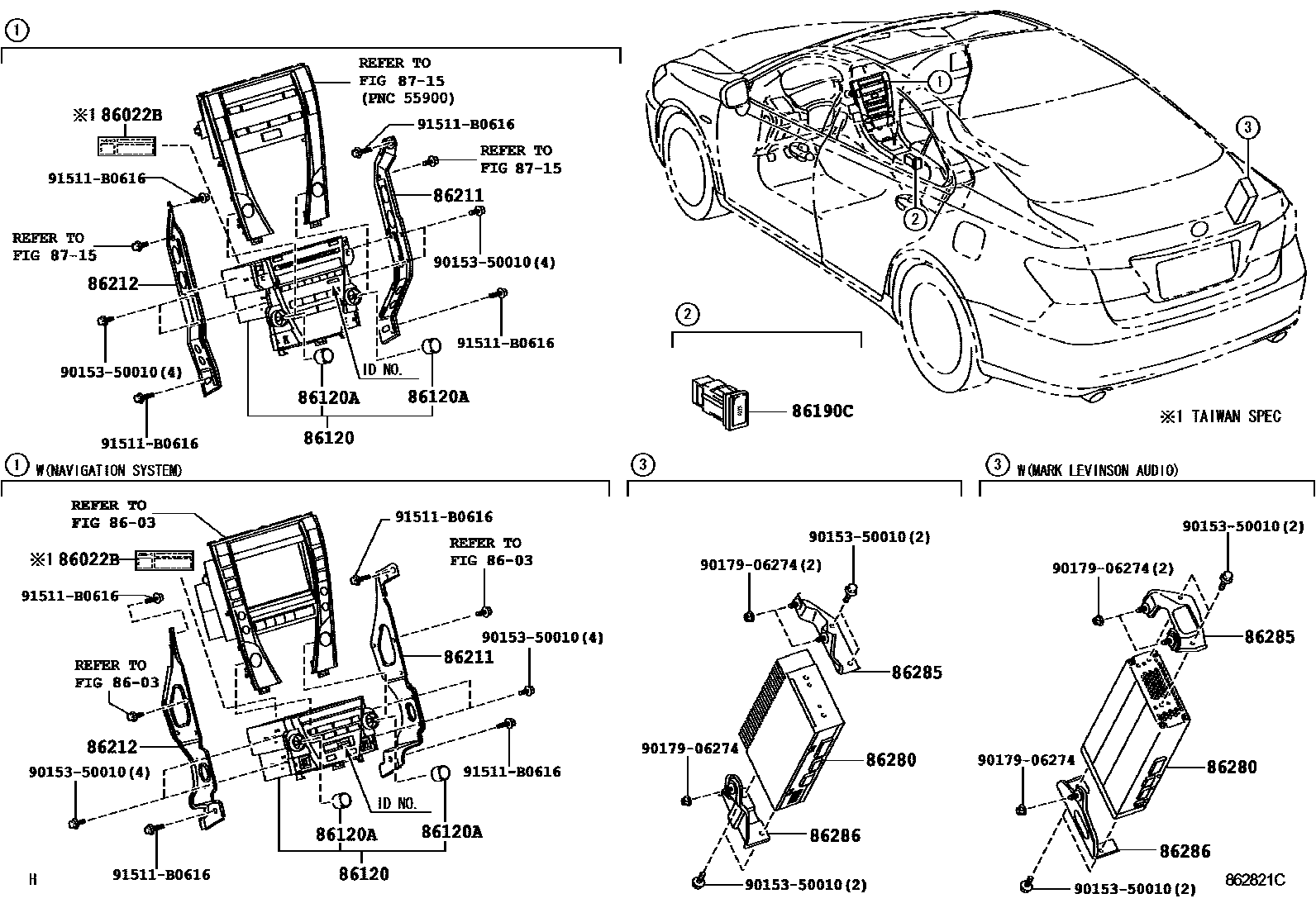

RADIO RECEIVER & AMPLIFIER & CONDENSER

86022BPLATE, CAUTION

main74513-50030i200709-200908

TAIWAN SPEC

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-33750i200707-200908

PIONEER,ID=P2815,PHILIPPINE SPEC; PIONEER,ID=P2815,TAIWAN SPEC

main86120-33770i200707-200908

PIONEER,ID=P7858,TAIWAN SPEC&AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER

main86120-33780i200707-200908

PIONEER,ID=P2511,TAIWAN SPEC&AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86120-33790supersedes 86120-33F50i200607-200908

PIONEER,ID=P2512,AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86120-33810supersedes 86120-33F10i200605-200908

PIONEER,ID=P7857,AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER

main86120-33820supersedes 86120-33F10i200605-200908

PIONEER,ID=P2510,AUDIO-NAVI.AM/FM,CST,6DVD,BT,MARK LEVINSON

main86120-33B90supersedes 86120-33F50i200607-200908

PIONEER,ID=P7860,AUDIO-NAVI,AM/FM,CST,6CD CHANGER,BT,8SPEAKER

main86120-33F10i201008-201206

PIONEER,ID=P2892,TAIWAN SPEC; PIONEER,ID=P2892,TAIWAN SPEC&AUDIO-AM/FM 6CD-CHANGER 8SP

main86120-33F20i201008-201103

PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

main86120-33F21supersedes 86120-33F10i201104-201206

PIONEER,ID=P2890,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; PIONEER,ID=P2890,TAIWAN SPEC; PIONEER,ID=P2890,TAIWAN SPEC&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

main86120-33F30supersedes 86120-33F10i200908-201206

PIONEER,ID=P7570,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33F40supersedes 86120-33F50i201005-201008

PIONEER,ID=P2893,SPECIAL EDITION

main86120-33F50supersedes 86120-33F40i200908-201206

PIONEER,ID=P2891; PIONEER,ID=P2891,AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP

main86120-33F60i200908-201206

PIONEER,ID=P7571,AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33F70i201008-201103

PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33F71i201104-201206

PIONEER,ID=P7569,TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

main86120-33F90i201008-201206

PIONEER,RUSSIA SPEC&AUDIO-6CD-CHANGER BLUETOOTH 8SP

main86120-33G00i201008-201206

PIONEER,ID=P3842,RUSSIA SPEC

main86120-33G10i201008-201206

PIONEER,ID=P8651,RUSSIA SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22050×2i200605-200908

main90010-22070×2i200908-201206

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53010i200605-200908

main86190-53040supersedes 86190-12020i200908-201206

AUDIO JACK-MINI JACK & USB; AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP&AUDIO JACK-MINI JACK & USB; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP&AUDIO JACK-MINI JACK & USB

86211BRACKET, RADIO, NO.1

main86211-33191i201008-201206

AUDIO-AM/FM 6CD-CHANGER 8SP; RUSSIA SPEC&AUDIO-6CD-CHANGER BLUETOOTH 8SP

main86211-33220supersedes 86211-33191i200908-201206

AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

86212BRACKET, RADIO, NO.2

main86212-33191supersedes 86212-33220i201005-201008

SPECIAL EDITION

main86212-33220supersedes 86212-33191i200908-201206

AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP; AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W380supersedes 86280-33150i200605-200908
