WIRELESS DOOR LOCK

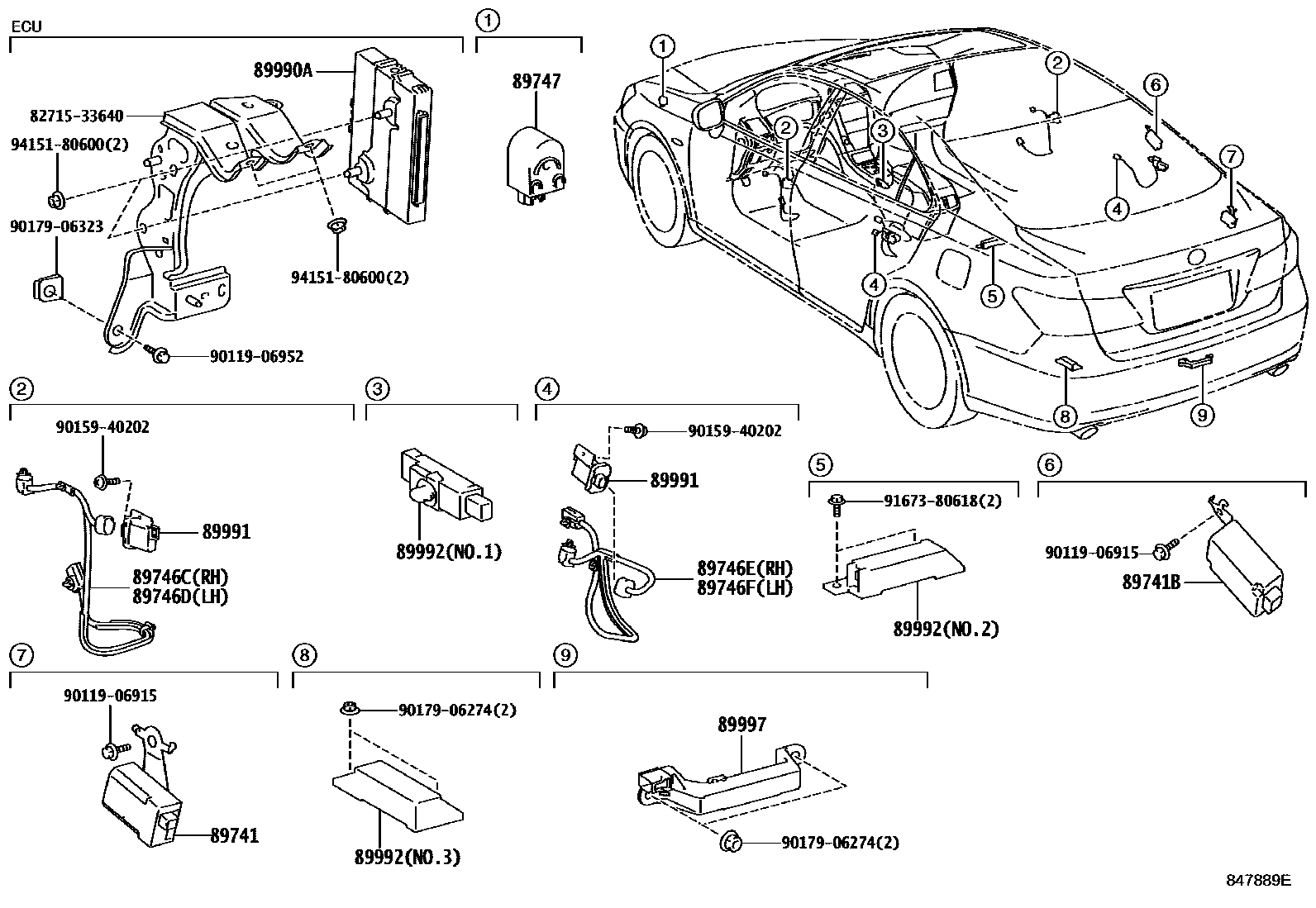

Parts diagram

89741RECEIVER, DOOR CONTROL

main89740-33120i200605-200908

main89740-33140i200908-201005

main89740-33040supersedes 89740-33140i200707-200908

TAIWAN SPEC

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-33110i200605-200908

main89740-33130i200908

main89740-33180i200908-201004

main89740-33181i201005

main89740-33090i201008

TAIWAN SPEC

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-33040i200605-200908

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-33050i200605-200908

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-33060i200605-200908

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-33070i200605-200908

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010i200605-200908

89990ACOMPUTER ASSY, SMART KEY

main89990-33051i200605-200707

main89990-33052i200707-200808

main89990-33110i200808-200902

main89990-33111i200903-200908

main89990-33160i200908-201003

PHILIPPINE SPEC

main89990-33161i201004-201106

PHILIPPINE SPEC

main89990-33162i201106-201107

PHILIPPINE SPEC

main89990-33163supersedes 89990-33192i201108

PHILIPPINE SPEC

main89990-33220i201008-201106

RUSSIA SPEC

main89990-33221i201107

RUSSIA SPEC

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010×2i200605-200908

FRONT RH,REAR LH

main89991-33020×2i200908-201206

FRONT LH,REAR RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30090i200605-200908

NO.1

main89992-33030i200908

NO.2

main89992-33050i200908

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-30070i201106

main89997-41010i200605-200908

8271533640BRACKET,WIRING HARNESS CLAMP

main82715-33640

9011906915

main90119-06915

9011906952

main90119-06952

9015940202

main90159-40202

9017906274

main90179-06274

9017906323

main90179-06323

9167380618

main91673-80618

9415180600

main94151-80600
