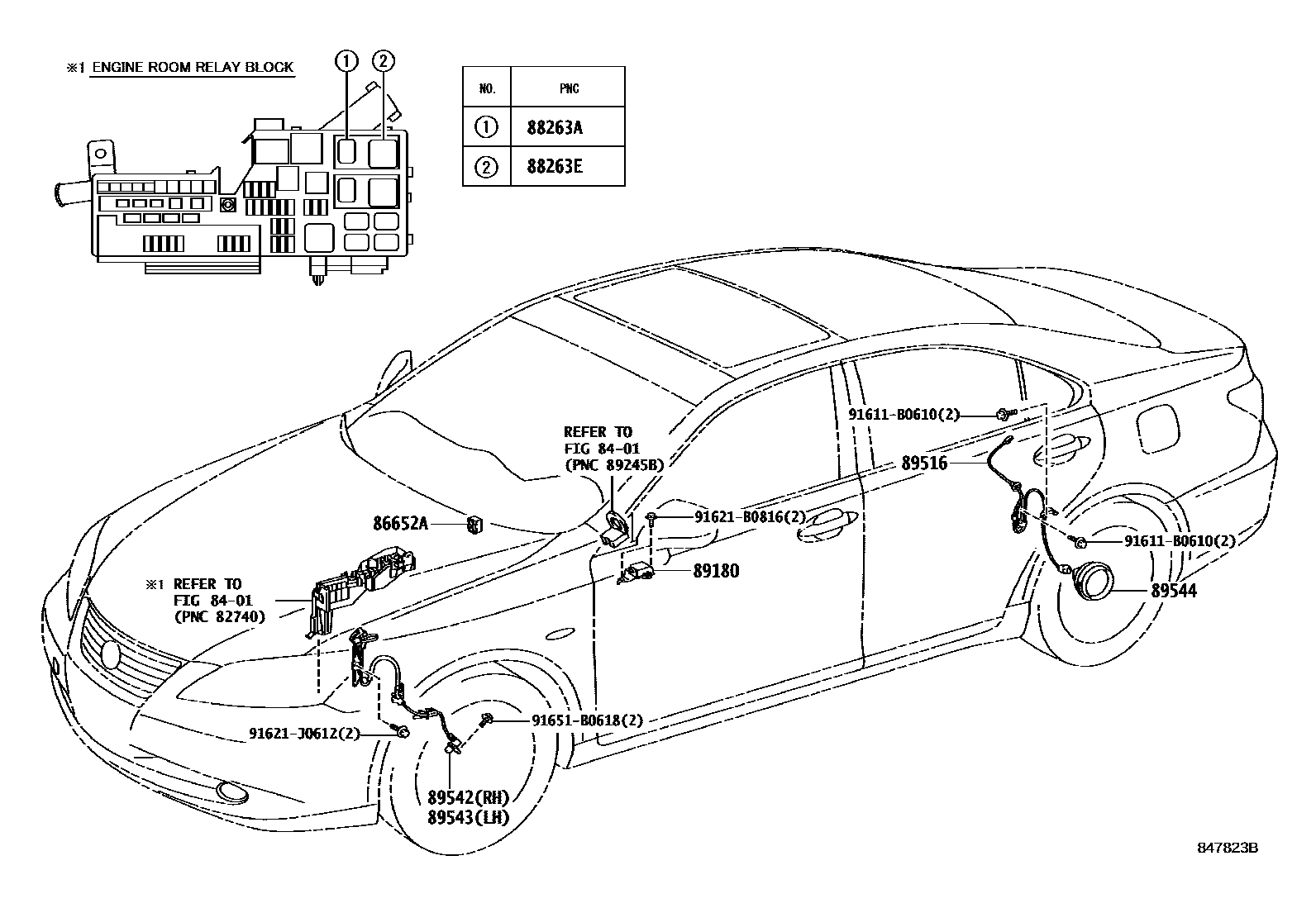

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iGSV40200605-200908

88263ARELAY, SKID CONTROL

main88263-32070iGSV40200605-200908

88263ERELAY, SKID CONTROL NO.2

main88263-21010iGSV40200605-200908

89180SENSOR ASSY, YAWRATE

main89180-33070iGSV40200605-200908

89516WIRE, SKID CONTROL SENSOR

main89516-33030iGSV40200605-200908

RH

main89516-33040iGSV40200605-200908

LH

main89516-33050iACV40,GSV40200908

RH

main89516-33060iACV40,GSV40200908

LH

89542SENSOR, SPEED, FRONT RH

main89542-33090iGSV40200605-200908

89543SENSOR, SPEED, FRONT LH

main89543-33080iGSV40200605-200908

89544SENSOR, SKID CONTROL

main89544-48010×2iGSV40200605-200908

91611B0610

main91611-B0610

91621B0816

main91621-B0816

91621J0612

main91621-J0612

91651B0618

main91651-B0618

13 parts on this diagram · 2 diagrams in section
