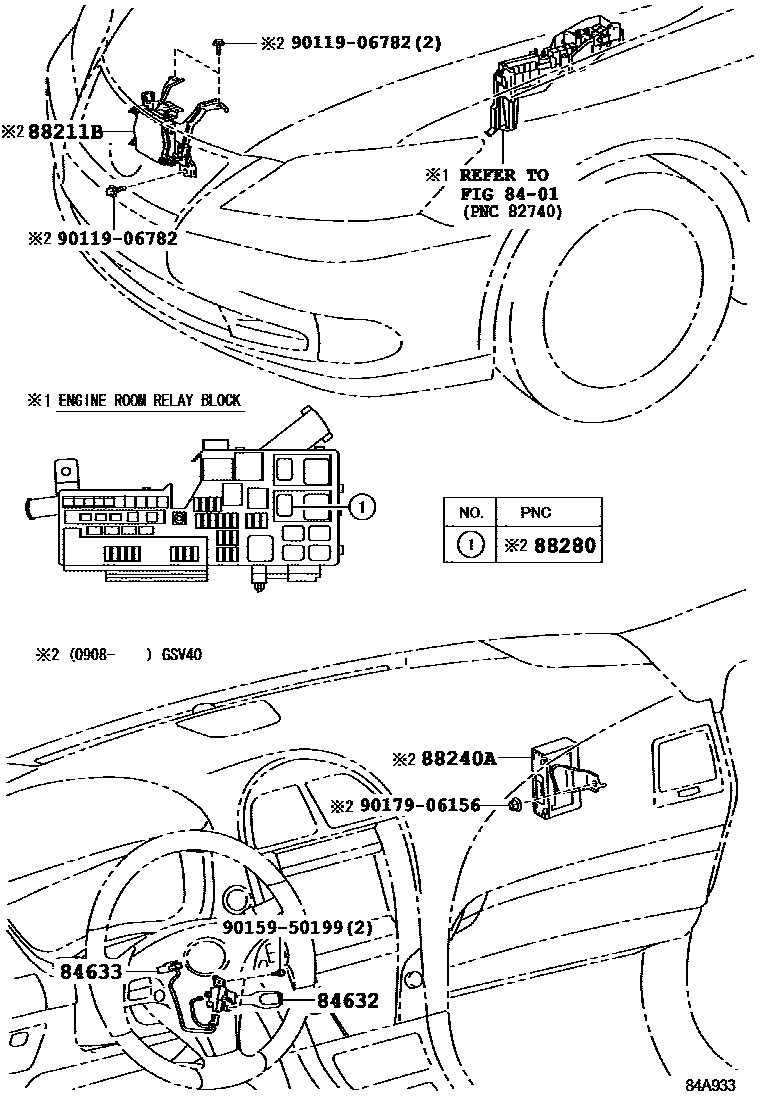

CRUISE CONTROL (AUTO DRIVE)

8401SWITCH & RELAY & COMPUTER

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011supersedes 84632-58011i200605-200908

main84632-58011supersedes 84632-34011i201008

PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH); PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020supersedes 84633-48010i200605-200908

main84633-48010supersedes 84633-48020i201008

PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH); PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33040i200908-201008

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-33220i200908-201008

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-04004i200908-201008

9011906782

9015950199

9017906156

9 parts on this diagram · 1 diagram in section
