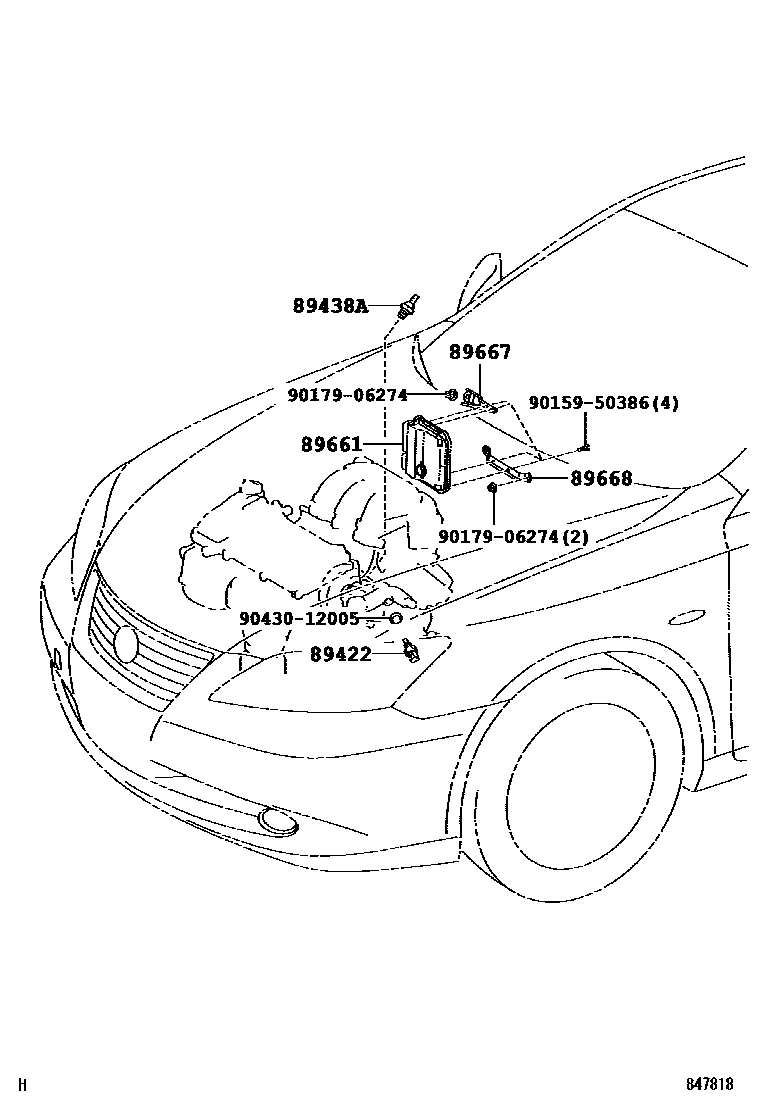

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSV40200605-200908

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGSV40200605-200908

89661COMPUTER, ENGINE CONTROL

main89661-33C70iGSV40..GCC200605-200908

main89661-33E20iACV40200908

main89661-33F50iGSV40..GCC200908

main89661-33C60supersedes 89661-33G30iGSV40..CHI200607-200901

BEIJING SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33140iGSV40200605-200908

main89667-33180iACV40200908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33190iGSV40200605-200908

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

8 parts on this diagram · 2 diagrams in section
