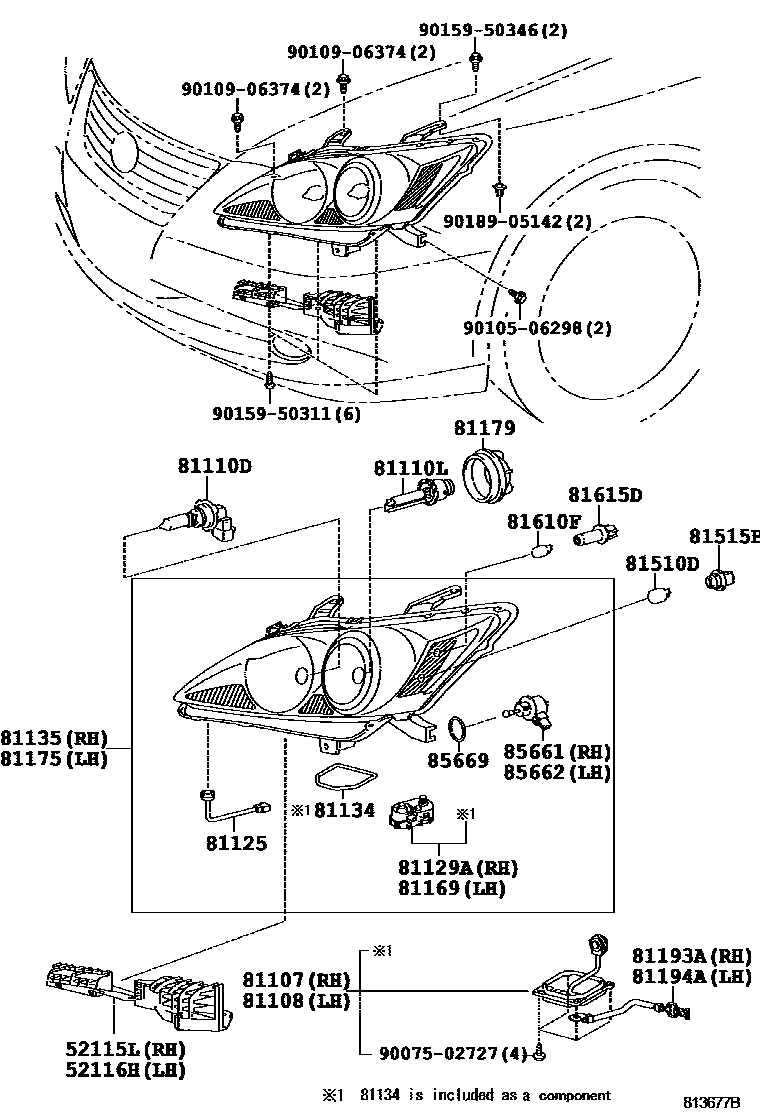

HEADLAMP
52115LSUPPORT, FRONT BUMPER SIDE, RH
52116HSUPPORT, FRONT BUMPER SIDE, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110DBULB(FOR HEADLAMP, NO.2)
12V 65W
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
45V 35W
45V 35W
42V 35W
81125CORD, HEADLAMP
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81175UNIT ASSY, HEADLAMP, LH
81179COVER, HEADLAMP SOCKET
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193APROTECTOR, HEADLAMP, RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502727
main90075-02727
9010506298
main90105-06298
9010906374
main90109-06374
9015950311
main90159-50311
9015950346
main90159-50346
9018905142
main90189-05142
30 parts on this diagram · 2 diagrams in section
