BATTERY CARRIER

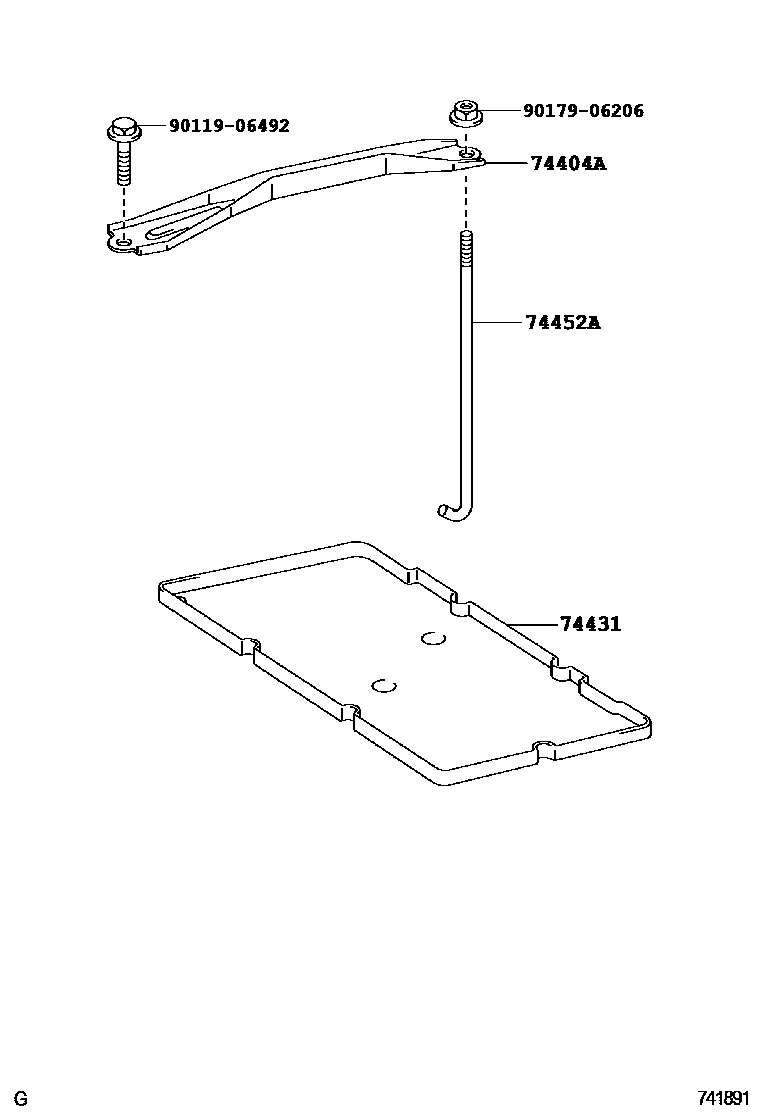

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-33100i200605-200908

74431TRAY, BATTERY

main74431-33011i200605-200908

74452ABOLT, BATTERY CLAMP, NO.2

main74452-33010i200605-200908

9011906492

main90119-06492

9017906206

main90179-06206

5 parts on this diagram · 1 diagram in section
