REAR SEAT & SEAT TRACK

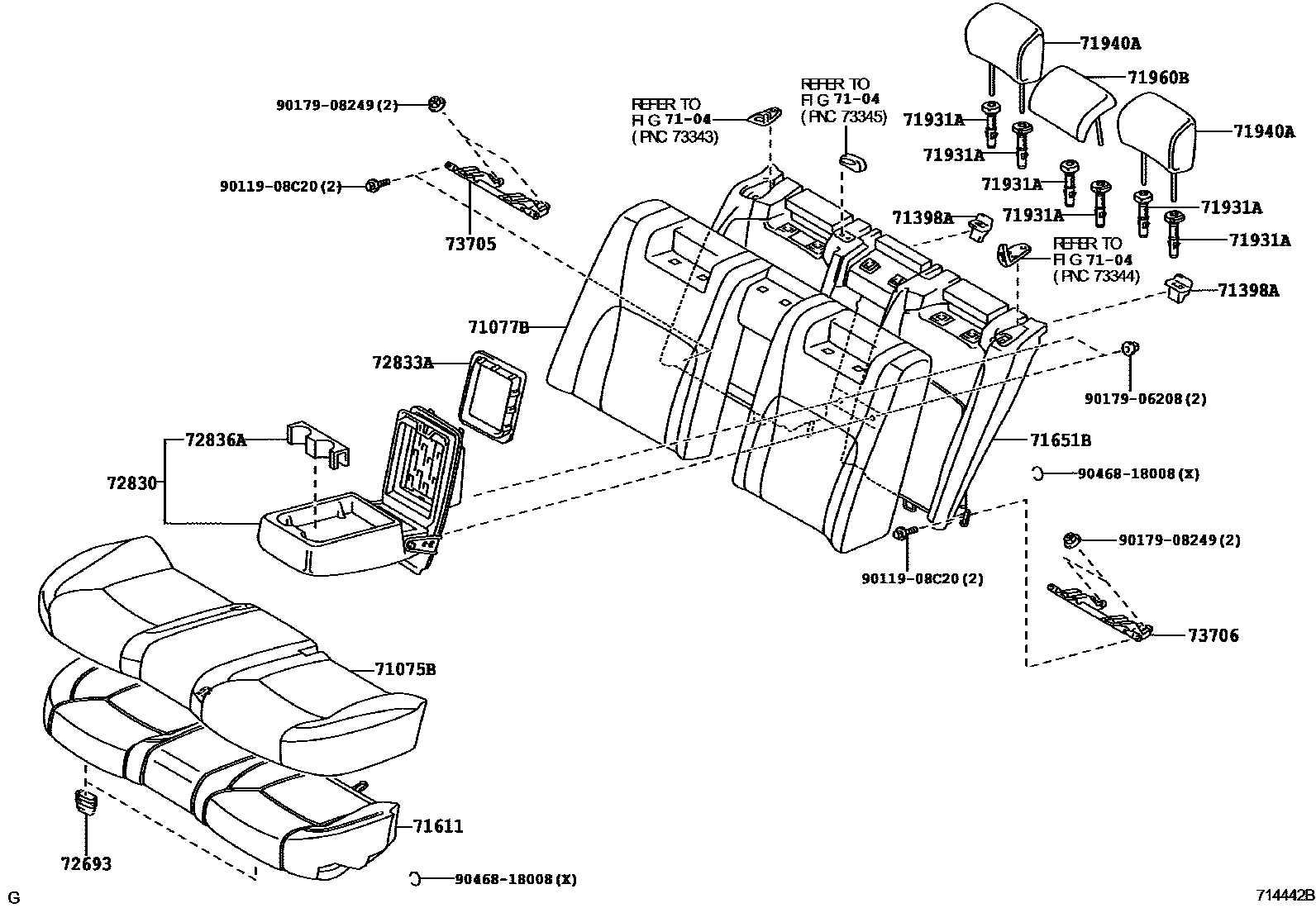

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33A00-A2i200908-201007
IVORY,TRIM0#
main71075-33A00-B2i200908-201007
LT.GRAY,TRIM1#
main71075-33A00-C2i200908-201007
BLACK,TRIM2#
main71075-33820-A2i200707-200908
TAIWAN SPEC,NEW IVORY,TRIM0#
main71075-33820-B2i200707-200908
TAIWAN SPEC,LT.GRAY,TRIM1#
main71075-33820-C2i200707-200908
TAIWAN SPEC,BLACK,TRIM2#
main71075-33830-A3supersedes 71075-33A20-A2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main71075-33830-B2i200707-200908
TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main71075-33830-C3supersedes 71075-33A20-C2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main71075-33850-A0supersedes 71075-33A10-A2i200607-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main71075-33850-B0supersedes 71075-33A10-B2i200607-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main71075-33850-C0supersedes 71075-33A10-C2i200607-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main71075-33A20-A2supersedes 71075-33A10-A2i200908-201007
IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#
main71075-33A20-B2supersedes 71075-33A10-B2i200908-201007
LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#
main71075-33A20-C2supersedes 71075-33A10-C2i200908-201007
BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#
main71075-33A21-A2supersedes 71075-33A11-A2i201008-201206
IVORY,TRIM0#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#; TAIWAN SPEC,IVORY,TRIM0#
main71075-33A21-B2supersedes 71075-33A11-B2i201008-201206
LT.GRAY,TRIM1#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#; TAIWAN SPEC,LT.GRAY,TRIM1#
main71075-33A21-C2supersedes 71075-33A11-C2i201008-201206
BLACK,TRIM2#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#; TAIWAN SPEC,BLACK,TRIM2#
main71075-33B10-A1supersedes 71075-33A10-A2i200908-201007
TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#
main71075-33B10-B1supersedes 71075-33A10-B2i200908-201007
TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/DK.GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,LT.GRAY/DK.GRAY,TRIM1#
main71075-33B10-C1supersedes 71075-33A20-C2i200908-201007
TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#
main71075-33B11-A1supersedes 71075-33A11-A2i201008-201206
RUSSIA SPEC,IVORY,TRIM0#; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC,IVORY,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,IVORY,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
main71075-33B11-B1supersedes 71075-33A21-B2i201008-201206
RUSSIA SPEC,LIGHT GRAY,TRIM1#; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LIGHT GRAY,TRIM1#; TAIWAN SPEC,LIGHT GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,LIGHT GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LIGHT GRAY,TRIM1#
main71075-33B11-C1supersedes 71075-33A11-C2i201008-201206
RUSSIA SPEC,BLACK/SADDLE TAN,TRIM2#; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#; TAIWAN SPEC,BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#
main71075-33B20-B0i200905-200905
SPECIAL EDITION,LT.GRAY/BLACK,TRIM25
main71075-33D40-E0i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
main71075-33D50-E0i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-33B90-A3i200908-201007
IVORY/MD.NEUTRAL BONE,TRIM0#
main71077-33B90-B3i200908-201007
LT.GRAY/STONE,TRIM1#
main71077-33B90-C3i200908-201007
BLACK/MD.GRAY,TRIM2#
main71077-33A40-A0i200707-200908
TAIWAN SPEC,NEW IVORY,TRIM0#
main71077-33A40-B6i200707-200908
TAIWAN SPEC,LT.GRAY,TRIM1#
main71077-33A40-C0i200707-200908
TAIWAN SPEC,BLACK,TRIM2#
main71077-33A50-A0supersedes 71077-33C10-A3i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main71077-33A50-B6i200707-200908
TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main71077-33A50-C1i200707-200908
TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main71077-33B00-A0supersedes 71077-33C00-A3i200607-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main71077-33B00-B0supersedes 71077-33C00-B3i200607-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main71077-33B00-C0supersedes 71077-33C00-C3i200607-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main71077-33C10-A3supersedes 71077-33C00-A3i200908-201007
IVORY/MD.NEUTRAL BONE,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/MD.NEUTRAL BONE,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY/MD.NEUTRAL BONE,TRIM0#
main71077-33C10-B3supersedes 71077-33C00-B3i200908-201007
LT.GRAY/STONE,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/STONE,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY/STONE,TRIM1#
main71077-33C10-C3supersedes 71077-33C00-C3i200908-201007
BLACK/MD.GRAY,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/MD.GRAY,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK/MD.GRAY,TRIM2#
main71077-33C11-A3supersedes 71077-33C01-A3i201008-201206
IVORY,TRIM0#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#; TAIWAN SPEC,IVORY,TRIM0#
main71077-33C11-B3supersedes 71077-33C01-B3i201008-201206
LT.GRAY,TRIM1#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#; TAIWAN SPEC,LT.GRAY,TRIM1#
main71077-33C11-C3supersedes 71077-33B91-C3i201008-201206
BLACK,TRIM2#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#; TAIWAN SPEC,BLACK,TRIM2#
main71077-33D00-A1supersedes 71077-33C00-A3i200908-201007
TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#
main71077-33D00-B1supersedes 71077-33C00-B3i200908-201007
TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/DK.GRAY/STONE,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,LT.GRAY/DK.GRAY/STONE,TRIM1#
main71077-33D00-C1supersedes 71077-33C00-C3i200908-201007
TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN/MD.GRAY,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,BLACK/SADDLE TAN/MD.GRAY,TRIM2#
main71077-33D01-A1supersedes 71077-33C11-A3i201008-201206
RUSSIA SPEC,IVORY,TRIM0#; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC,IVORY,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,IVORY,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
main71077-33D01-B1supersedes 71077-33C01-B3i201008-201206
RUSSIA SPEC,LIGHT GRAY,TRIM1#; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LIGHT GRAY,TRIM1#; TAIWAN SPEC,LIGHT GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,LIGHT GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LIGHT GRAY,TRIM1#
main71077-33D01-C1supersedes 71077-33C01-C3i201008-201206
RUSSIA SPEC,BLACK/SADDLE TAN,TRIM2#; TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#; TAIWAN SPEC,BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#
main71077-33D10-B0i200905-200905
SPECIAL EDITION,LT.GRAY/BLACK,TRIM25
main71077-33F50-E0i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
main71077-33F60-E0i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
71398AHOLDER, REAR SEATBACK
main71398-33010-C0×3i200908-201206
BLACK
71611PAD, REAR SEAT CUSHION
main71503-33100i200908
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-33060i200605-200908
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A3×3i200605-200708
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-42020-B2×3i200605-200708
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
main71930-42020-C0×3i200605-200708
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71930-52030-A1×3i200709-200908
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-A3×3i200908-201206
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-B5×3i200709-200908
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
main71930-52030-C0×3i200908-201206
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71931-42020-A3×3i200605-200908
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-A6×3i200908-201206
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-B2×3i200605-200908
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
main71931-42020-C0×3i200605-200908
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-33731-A5×2supersedes 71940-33741-A4i200908-201206
IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#
main71940-33731-B3×2supersedes 71940-33741-B3i200908-201206
LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#
main71940-33731-C3×2supersedes 71940-33741-C4i200908-201206
BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#
main71940-33730-B2×2i200905-200905
SPECIAL EDITION,LT.GRAY,TRIM25
main71940-33740-A2×2supersedes 71940-33741-A4i200707-200908
TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main71940-33740-B1×2supersedes 71940-33730-B2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main71940-33740-C2×2supersedes 71940-33730-C2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main71940-33741-A4×2i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,IVORY/ORCHID BROWN,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#
main71940-33741-B3×2i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,LT.GRAY/MD.GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/MD.GRAY,TRIM1#
main71940-33741-C4×2i201108-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#
main71940-33C90-E0×2i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
71960BHEADREST ASSY, REAR SEAT, CENTER
main71940-33761-A4supersedes 71940-33751-A4i200908-201008
IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#
main71940-33761-A5supersedes 71940-33751-A3i201008-201206
IVORY,TRIM0#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#
main71940-33761-B1supersedes 71940-33751-B2i201008-201206
LT.GRAY,TRIM1#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#
main71940-33761-B2supersedes 71940-33751-B3i200908-201008
LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#
main71940-33761-C1supersedes 71940-33751-C3i201008-201206
BLACK,TRIM2#; RUSSIA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#
main71940-33761-C2supersedes 71940-33751-C4i200908-201008
BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#
main71940-33750-A2i200707-200908
TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main71940-33750-B1supersedes 71940-33760-B1i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main71940-33750-C2supersedes 71940-33760-C1i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main71940-33751-A3i201008-201206
IVORY,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,IVORY,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
main71940-33751-A4i200908-201008
IVORY/ORCHID BROWN,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#
main71940-33751-B2i201108-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,LIGHT GRAY,TRIM1#
main71940-33751-B3i200908-201008
LT.GRAY/MD.GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,LT.GRAY/MD.GRAY,TRIM1#
main71940-33751-C3i201008-201206
BLACK,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,BLACK,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#
main71940-33751-C4i200908-201008
BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#
main71940-33760-B1i200905-200905
SPECIAL EDITION,LT.GRAY,TRIM25
main71940-33D00-E0i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i200605-200908
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-33591-A8supersedes 72830-33611-A7i200908-201206
IVORY,TRIM0#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),IVORY,TRIM0#
main72830-33591-B6supersedes 72830-33611-B6i200908-201206
LT.GRAY,TRIM1#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#
main72830-33591-C6supersedes 72830-33611-C7i200908-201206
BLACK,TRIM2#; TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),BLACK,TRIM2#
main72830-33610-A3supersedes 72830-33590-A2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#
main72830-33610-B2supersedes 72830-33590-B2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#
main72830-33610-C3supersedes 72830-33590-C2i200605-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#
main72830-33611-A7i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,IVORY/ORCHID BROWN,TRIM0#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY/ORCHID BROWN,TRIM0#
main72830-33611-B6i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,LT.GRAY/DK.GRAY,TRIM1#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY/DK.GRAY,TRIM1#
main72830-33611-C7i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,BLACK/SADDLE TAN,TRIM2#; ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK/SADDLE TAN,TRIM2#
main72830-33880-E0i201110-201203
SPECIAL EDITION,SADDLE TAN,TRIM20,21
72833APLATE, SEAT CENTER ARMREST, INNER
main72831-33070i200605-200908
72836APANEL, REAR SEAT CENTER ARMREST, NO.4
main72836-33020i200908
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33040i200908
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33040i200605-200908
9011908C20
main90119-08C20
9017906208
main90179-06208
9017908249
main90179-08249
9046818008
main90468-18008

19 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
