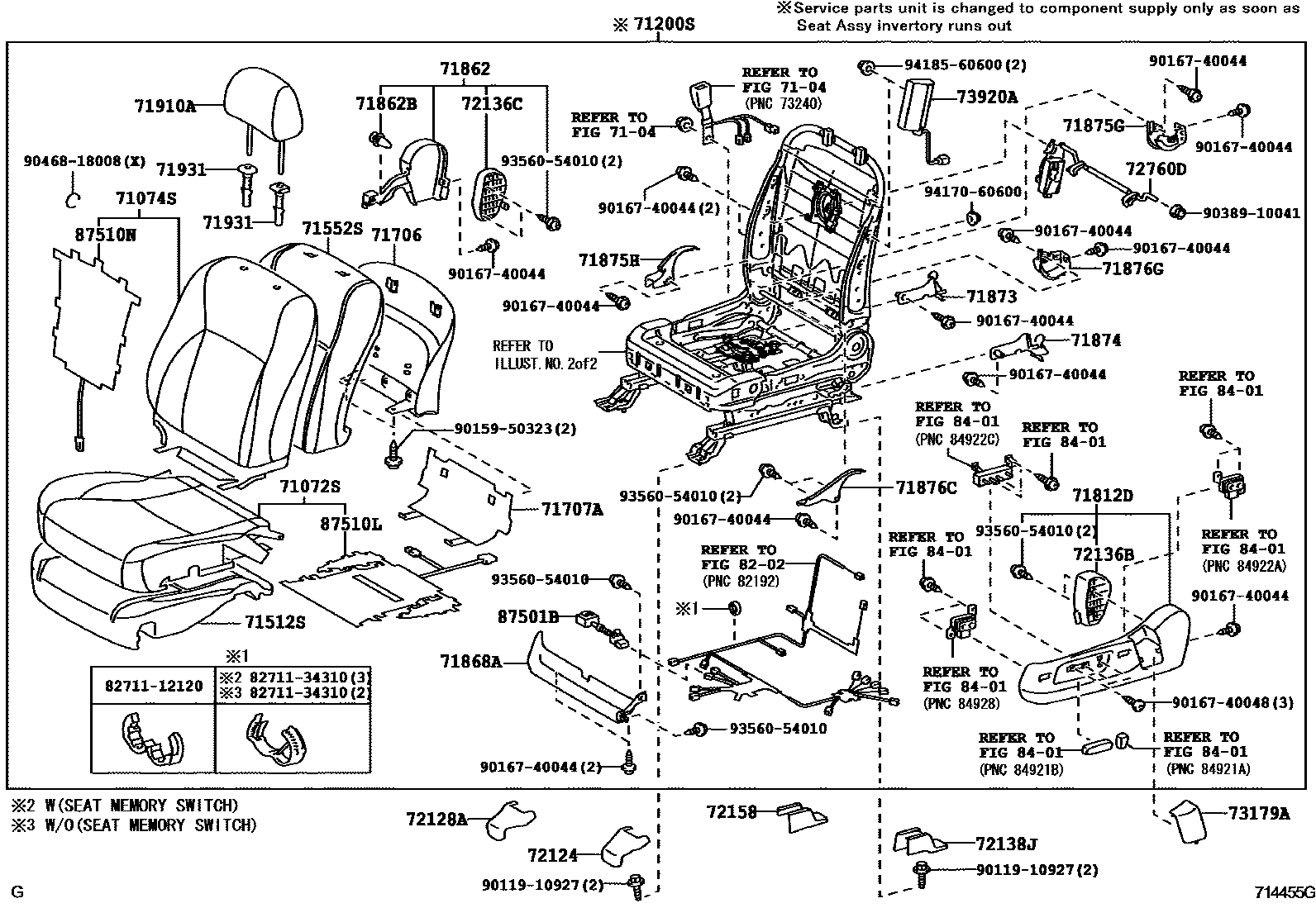

FRONT SEAT & SEAT TRACK

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-33G50-A3supersedes 71072-33G60-A2i200908-201206

IVORY,TRIM0#

main71072-33G50-B2supersedes 71072-33G60-B2i200908-201206

LT.GRAY,TRIM1#

main71072-33G50-C2supersedes 71072-33G60-C3i200908-201206

BLACK,TRIM2#

main71072-33F00-A1supersedes 71072-33G60-A2i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#

main71072-33F00-B0supersedes 71072-33G60-B2i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#

main71072-33F00-C1supersedes 71072-33E90-C0i200605-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#

main71072-33J00-B0i200905-200905

SPECIAL EDITION,LT.GRAY/BLACK,TRIM25

main71072-33L50-E0i201110-201203

SPECIAL EDITION,SADDLE TAN,TRIM20,21

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-33J91-A2i200908-201008

TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#

main71074-33J91-B1i200908-201008

LT.GRAY,TRIM1#

main71074-33J91-C1i200908-201008

BLACK,TRIM2#

main71074-33J92-A2supersedes 71074-33K02-A1i201008-201206

TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#

main71074-33J92-B1supersedes 71074-33K02-B1i201008-201206

TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#

main71074-33J92-C1supersedes 71074-33K02-C2i201008-201206

BLACK,TRIM2#

main71074-33J00-A2supersedes 71074-33K02-A1i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#

sub71074-33M40

main71074-33J00-B1supersedes 71074-33K02-B1i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#

sub71074-33M40

main71074-33J00-C2supersedes 71074-33G90-C1i200605-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#

sub71074-33M40

main71074-33L20-B0i200905-200905

SPECIAL EDITION,LT.GRAY/BLACK,TRIM25

main71074-33N20-E0i201110-201203

SPECIAL EDITION,SADDLE TAN,TRIM20,21

71200SSEAT ASSY, FRONT LH

main71020-33A40-E0i201110-201203

SPECIAL EDITION,SADDLE TAN,TRIM20,21

main71020-33A50-E0i201110-201203

SPECIAL EDITION,SADDLE TAN,TRIM20,21

main71200-33K00-A4supersedes 71200-33J90-A3i200605-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#

sub71200-33X30

main71200-33K00-B3i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#

sub71200-33X30

main71200-33K00-C4supersedes 71200-33J90-C3i200605-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#

sub71200-33X30

main71200-33M11-A1supersedes 71200-33L31-A1i200908-201008

TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#

main71200-33M11-B1supersedes 71200-33L31-B1i200908-201008

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6DVD-CHANGER BLUETOOTHNAVI *MAR 14SP,LT.GRAY,TRIM1#

main71200-33M11-C1supersedes 71200-33L61-C1i200908-201008

TAIWAN SPEC&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,TRIM2#

main71200-33M12-A0supersedes 71200-33L62-A0i201008-201206

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&AUDIO-6CD-CHANGER BLUETOOTHNAVI 8SP,IVORY,TRIM0#

sub71200-33M13

main71200-33M12-B0supersedes 71200-33L32-B0i201008-201206

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,LT.GRAY

sub71200-33M13

main71200-33M12-C0supersedes 71200-33L32-C0i201008-201206

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITH/PRECRASH BRAKE & OFF SWICH)&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,BLACK,T

sub71200-33M13

main71200-33M50-A0supersedes 71200-33M40-A0i200607-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#

sub71200-33X70

main71200-33M50-B0supersedes 71200-33M40-B0i200607-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#

sub71200-33X70

main71200-33M50-C0supersedes 71200-33M40-C0i200607-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#

sub71200-33X70

main71200-33N31-A1supersedes 71200-33Q71-A2i200908-201008

ULTRA LUXURY PACKAGE&*DRP(MEMORY),IVORY,TRIM0#

main71200-33N31-B1supersedes 71200-33Q71-B2i200908-201008

ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM1#

main71200-33N31-C1supersedes 71200-33Q71-C2i200908-201008

ULTRA LUXURY PACKAGE&*DRP(MEMORY),BLACK,TRIM2#

main71200-33N32-A0supersedes 71200-33Q72-A0i201008-201206

ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0#

sub71200-33N33

main71200-33N32-B0supersedes 71200-33Q72-B0i201008-201206

ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1#

sub71200-33N33

main71200-33N32-C0supersedes 71200-33Q72-C0i201008-201206

ULTRA LUXURY PACKAGE&*DRP(MEMORY)&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2#

sub71200-33N33

main71200-33T20-B0i200905-200905

SPECIAL EDITION,LT.GRAY/BLACK,TRIM25

main71200-33V91-A0supersedes 71200-33Q72-A0i201008-201206

TAIWAN SPEC,IVORY,TRIM0#

sub71200-33V92

main71200-33V91-B0supersedes 71200-33Q72-B0i201008-201206

TAIWAN SPEC,LT.GRAY,TRIM1#

sub71200-33V92

main71200-33V91-C0supersedes 71200-33Q72-C0i201008-201206

TAIWAN SPEC,BLACK,TRIM2#

sub71200-33V92

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-33250i200908

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-33180i200605-200908

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-33010-A0i200605-200908

IVORY,TRIM0#

main71706-33010-A1i200908-201206

IVORY,TRIM0#

main71706-33010-B0i200605-200908

LT.GRAY,TRIM1#

main71706-33010-C0i200908-201206

BLACK,TRIM2#

71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-33080-A0×2i200605-200908

IVORY,TRIM0#

sub71707-33082

main71707-33080-A1×2i200908-201008

IVORY,TRIM0#

sub71707-33082

main71707-33080-B0×2i200908-201008

LT.GRAY,TRIM10,11

sub71707-33082

main71707-33080-C0×2i200908-201008

BLACK,TRIM2#

sub71707-33082

main71707-33081-A1×2i201008-201206

IVORY,TRIM0#

sub71707-33110

main71707-33081-B0×2i201008-201206

LT.GRAY,TRIM10,11

sub71707-33110

main71707-33081-C0×2i201008-201206

BLACK,TRIM2#

sub71707-33110

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-33290-A0i200605-200908

IVORY,TRIM0#

main71812-33290-A1i200908-201206

IVORY,TRIM0#

main71812-33290-B0i200908-201206

LT.GRAY,TRIM10,11

main71812-33290-C0i200908-201206

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-33150-A0i200605-200908

IVORY,TRIM0#

main71862-33150-A1i200908-201206

IVORY,TRIM0#

main71862-33150-B0i200908-201206

LT.GRAY,TRIM10,11

main71862-33150-C0i200908-201206

BLACK,TRIM2#

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main67921-50050-B0i200908-201206

LT.GRAY

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-33060-A0i200605-200908

IVORY,TRIM0#

main71868-33060-A1i200908-201206

IVORY,TRIM0#

main71868-33060-B0i200908-201206

LT.GRAY,TRIM10,11

main71868-33060-C0i200605-200908

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-30020×2i200605-200908

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-30070×2i200605-200908

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-60140i200908

71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-60170-A1i200605-200908

IVORY,TRIM0#

main71876-60170-A4i200908-201206

IVORY,TRIM0#

main71876-60170-B9i200908-201206

LT.GRAY,TRIM10,11

main71876-60170-C0i200908-201206

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-60150-A1i200605-200908

IVORY,TRIM0#

main71875-60150-A3i200908-201206

IVORY,TRIM0#

main71875-60150-B7i200908-201206

LT.GRAY,TRIM10,11

main71875-60150-C0i200908-201206

BLACK,TRIM2#

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-33050-A0i200605-200908

IVORY,TRIM0#

main71876-33050-A1i200908-201206

IVORY,TRIM0#

main71876-33050-B0i200908-201206

LT.GRAY,TRIM10,11

main71876-33050-C0i200908-201206

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-60140i200605-200908

71910AHEADREST ASSY, FRONT SEAT

main71910-33592-A2×2i200908-201206

IVORY,TRIM0#

sub71910-33593

main71910-33592-B1×2i200908-201206

TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY),LT.GRAY,TRIM1#

sub71910-33593

main71910-33592-C1×2i200908-201206

BLACK,TRIM2#

sub71910-33593

main71910-33600-A1×2supersedes 71910-33602-A3i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),IVORY,TRIM0#

sub71910-33603

main71910-33600-B0×2supersedes 71910-33590-B0i200605-200908

ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),LIGHT GRAY,TRIM1#

sub71910-33603

main71910-33600-C1×2supersedes 71910-33602-C3i200707-200908

TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE),BLACK,TRIM2#

sub71910-33603

main71910-33800-E0×2i201110-201203

SPECIAL EDITION,SADDLE TAN,TRIM20,21

sub71910-33801

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A3×2i200605-200708

W(LOCK)&W(BUTTON),IVORY,TRIM0#

sub71930-44020

main71930-42020-B2×2i200605-200708

W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#

sub71930-44020

main71930-42020-C0×2i200605-200708

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-44020

main71930-52030-A1×2i200709-200908

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-A3×2i200908-201206

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-B5×2i200709-200908

W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#

main71930-52030-C0×2i200709-200908

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-42020-A3×2i200605-200908

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-A6×2i200908-201206

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-B2×2i200908-201206

W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#

main71931-42020-C0×2i200605-200908

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-33010-A0i200605-200908

IVORY,TRIM0#

main72124-33010-B0i200605-200908

LT.GRAY,TRIM1#

main72124-33010-C0i200605-200908

BLACK,TRIM2#

main72124-33010-E0i200908-201206

CAMEL,TRIM0#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-33010-A0i200605-200908

IVORY,TRIM0#

main72128-33010-B0i200605-200908

LT.GRAY,TRIM1#

main72128-33010-C0i200605-200908

BLACK,TRIM2#

main72128-33010-E0i200908-201206

CAMEL,TRIM0#

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-33090i200908

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-33110i200605-200908

72136CSPACER, SEAT TRACK, LOWER NO.4

main72136-33120i200605-200908

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-33080-A0i200605-200908

IVORY,TRIM0#

main72138-33080-B0i200605-200908

LT.GRAY,TRIM1#

main72138-33080-C0i200605-200908

BLACK,TRIM2#

main72138-33080-E0i200908-201206

CAMEL,TRIM0#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-33130-A0i200605-200908

IVORY,TRIM0#

main72158-33130-B0i200605-200908

LT.GRAY,TRIM1#

main72158-33130-C0i200908-201206

BLACK,TRIM1#,2#

main72158-33130-E0i200908-201206

CAMEL,TRIM0#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30170i200605-200908

73179ACAP, SEAT BELT ANCHOR COVER, LH

main73179-33010-A0i200605-200908

IVORY,TRIM0#

main73179-33010-A1i200908-201206

IVORY,TRIM0#

main73179-33010-B0i200605-200908

LT.GRAY,TRIM1#

main73179-33010-C0i200605-200908

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-33020i200908-201206

8202

8401

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-60010i200908-201202

main87501-60060i201203

sub87501-48020

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-33170i200908

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-33030i200908

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9011910927

main90119-10927

9015950323

main90159-50323

9016740044

main90167-40044

9016740048

main90167-40048

9038910041

main90389-10041

9046818008

main90468-18008

9356054010

main93560-54010

9417060600

main94170-60600

9418560600

main94185-60600

47 parts on this diagram · 4 diagrams in section
