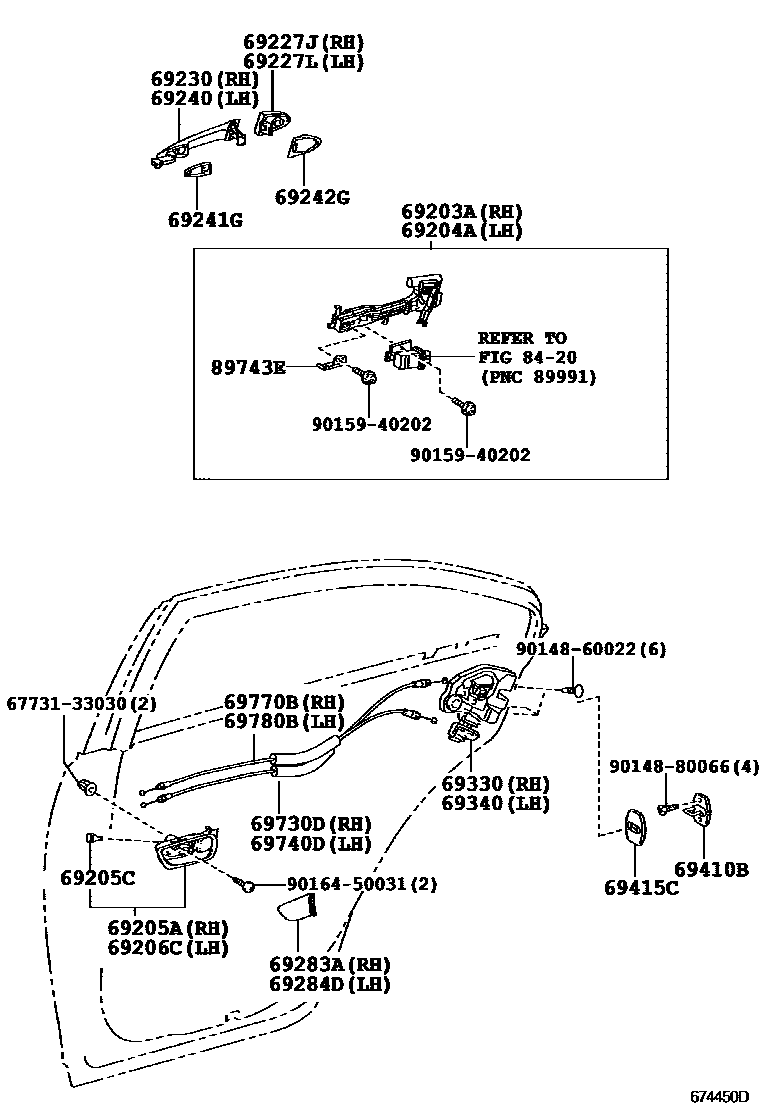

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
PLATED
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
PLATED
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
8420
89743EBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
6773133030SPACER, SIDE TRIM, NO.1
main67731-33030
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
28 parts on this diagram · 1 diagram in section
