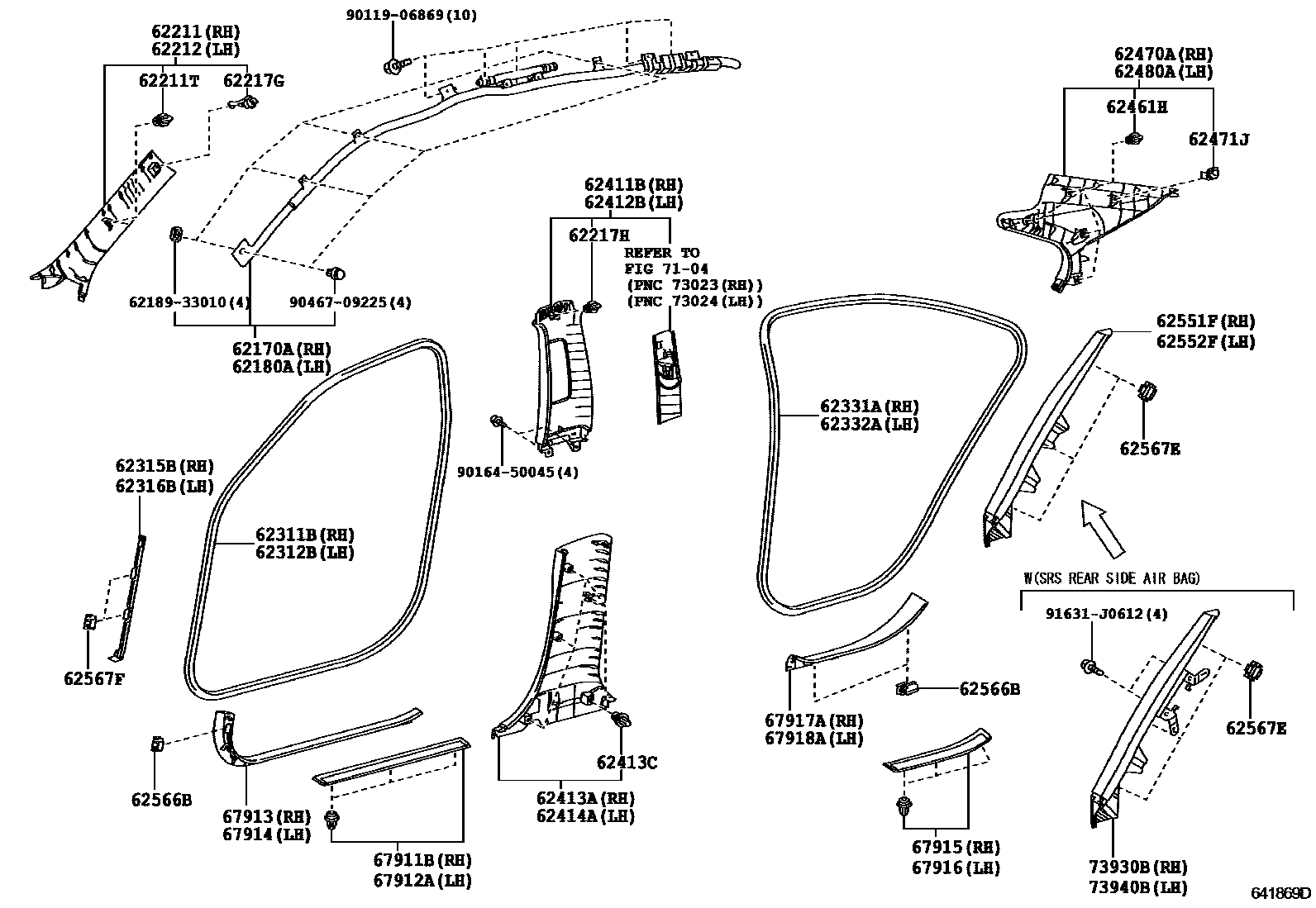

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
62316BCOVER, FRONT DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
62551FGARNISH, REAR SEAT SIDE, RH
IVORY,TRIM0#
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#
LT.GRAY,TRIM1#
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#
BLACK,TRIM2#
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,BLACK,TRIM2#
62552FGARNISH, REAR SEAT SIDE, LH
IVORY,TRIM0#
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#
LT.GRAY,TRIM1#
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#
BLACK,TRIM2#
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,BLACK,TRIM2#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE
62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
7104
73930BAIRBAG, REAR SEAT, RH
IVORY,TRIM0#
BLACK,TRIM1#,2#
73940BAIRBAG, REAR SEAT, LH
6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH
main62189-33010
9011906869
main90119-06869
9016450045
main90164-50045
9046709225
main90467-09225
91631J0612
main91631-J0612
43 parts on this diagram · 1 diagram in section
